Midbrain Anatomy - The Brain's Isthmus

  • Location: Connects the pons and cerebellum with the forebrain.
  • Key Divisions:
    • Tectum (roof): Posterior to the cerebral aqueduct.
      • Superior colliculi (vision, reflex eye movements).
      • Inferior colliculi (audition).
    • Tegmentum (floor): Anterior to the aqueduct.
      • Contains cranial nerve nuclei (III, IV), red nucleus, substantia nigra.
    • Crus Cerebri: Ventral-most part, contains motor tracts.

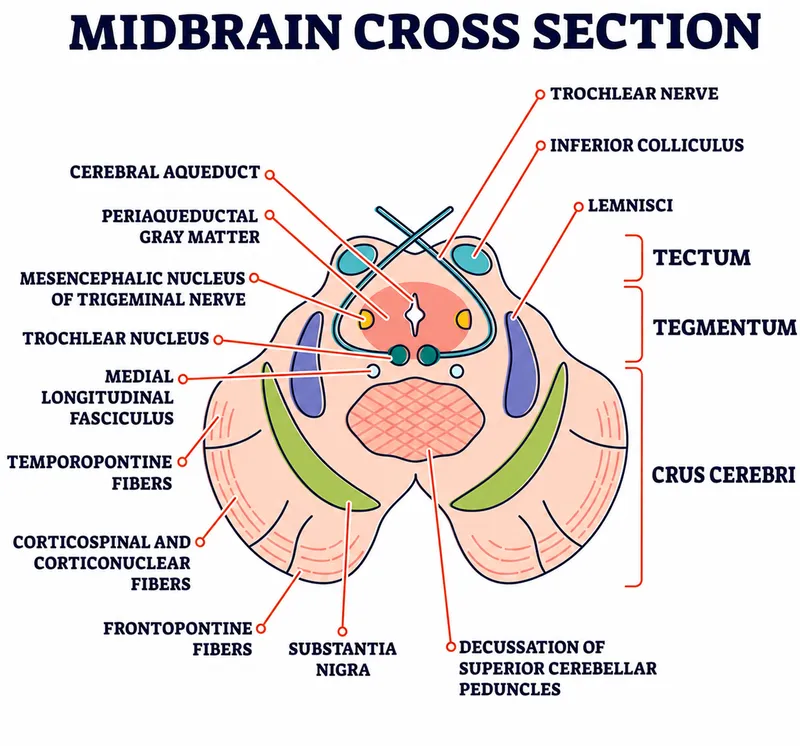

Midbrain Cross-Section with Tectum, Tegmentum, Crus Cerebri

⭐ The cerebral aqueduct, a narrow channel connecting the 3rd and 4th ventricles, runs through the midbrain. Obstruction here is a common cause of non-communicating hydrocephalus.

📌 Mnemonic: "In the midbrain, you see 3 and 4." (for CN III & IV nuclei).

Cranial Nerve Nuclei - Oculomotor & Trochlear

Cranial nerve nuclei in the brainstem

  • Oculomotor (CN III) Complex: Located at the superior colliculus level.

    • Somatic Motor Nucleus: Innervates all extraocular muscles except superior oblique & lateral rectus.
    • Edinger-Westphal Nucleus (Accessory Oculomotor): Provides preganglionic parasympathetic fibers to the ciliary ganglion for pupillary constriction (miosis) and lens accommodation.
  • Trochlear (CN IV) Nucleus: Located at the inferior colliculus level.

    • Innervates the contralateral superior oblique muscle.
    • 📌 Mnemonic: Remember eye muscle innervation with $LR_6SO_4R_3$ (Lateral Rectus CN6, Superior Oblique CN4, Rest CN3).

Exam Favorite: The trochlear nerve (CN IV) is unique as it is the only cranial nerve to exit from the dorsal aspect of the brainstem and its fibers decussate (cross over) before exiting. This long intracranial course makes it particularly vulnerable to traumatic injury.

Motor Control Centers - Red & Black Nuclei

  • Red Nucleus

    • Location: Rostral midbrain.
    • Function: A key component of the rubrospinal tract, influencing motor control.
    • Inputs: Receives afferents from the ipsilateral cerebral cortex and contralateral cerebellum.
    • Outputs: Primarily controls gross motor movements, especially of contralateral upper limb flexors.
  • Substantia Nigra

    • Location: Ventral midbrain.
    • Composed of two distinct parts:
      • Pars Compacta (SNc): Synthesizes dopamine; projects to the striatum (nigrostriatal pathway) to permit movement initiation.
      • Pars Reticulata (SNr): An output nucleus of the basal ganglia; sends inhibitory (GABAergic) signals to the thalamus.

⭐ Depigmentation and neuronal loss in the substantia nigra pars compacta are the pathological hallmarks of Parkinson's disease.

Midbrain cross-section: Healthy vs. Parkinson's disease

Sensory & Pain Nuclei - Sights, Sounds, & Serenity

  • Superior Colliculi (SC):
    • Function: Directs eye movements (saccades) & head/neck reflexes toward visual, auditory, or somatosensory stimuli.
    • Pathway: Tectospinal tract.
  • Inferior Colliculi (IC):
    • Function: Major auditory relay center; sound localization.
    • Pathway: Lateral lemniscus → IC → Medial Geniculate Nucleus (MGN).
    • 📌 Mnemonic: Superior = Sight; Inferior = Inside the ear (hearing).
  • Periaqueductal Gray (PAG):
    • Function: Central hub for pain modulation and defensive behavior.
    • Mechanism: Rich in endogenous opioid receptors; activates descending pain-inhibiting pathways.

Midbrain cross-section with labeled nuclei

⭐ The PAG is a key site for the analgesic action of opioids and a target for deep brain stimulation in chronic pain treatment.

High‑Yield Points - ⚡ Biggest Takeaways

  • The Edinger-Westphal nucleus provides parasympathetic innervation to the pupil and ciliary muscle.
  • Oculomotor nucleus (CN III) lesions result in a "down and out" eye position.
  • Trochlear nucleus (CN IV) lesions cause vertical diplopia, worse when reading or going downstairs.
  • The red nucleus is a key component of the motor control system, particularly for upper limb coordination.
  • The substantia nigra is crucial for motor planning; its degeneration leads to Parkinson's disease.
  • The superior colliculus directs saccadic eye movements, while the inferior colliculus is for auditory reflexes.

Practice Questions: Midbrain nuclei

Test your understanding with these related questions

During an examination of the cranial nerves, a patient shows inability to move their eye laterally past the midline. Which of the following structures in the cavernous sinus is most likely affected?

1 of 5

Flashcards: Midbrain nuclei

1/10

ID Nucleus: _____

TAP TO REVEAL ANSWER

ID Nucleus: _____

Nucleus of CN III - Located in rostral midbrain - Anterolateral to cerebral aqueduct - Anterior to nucleus of Edinger-Westphal
