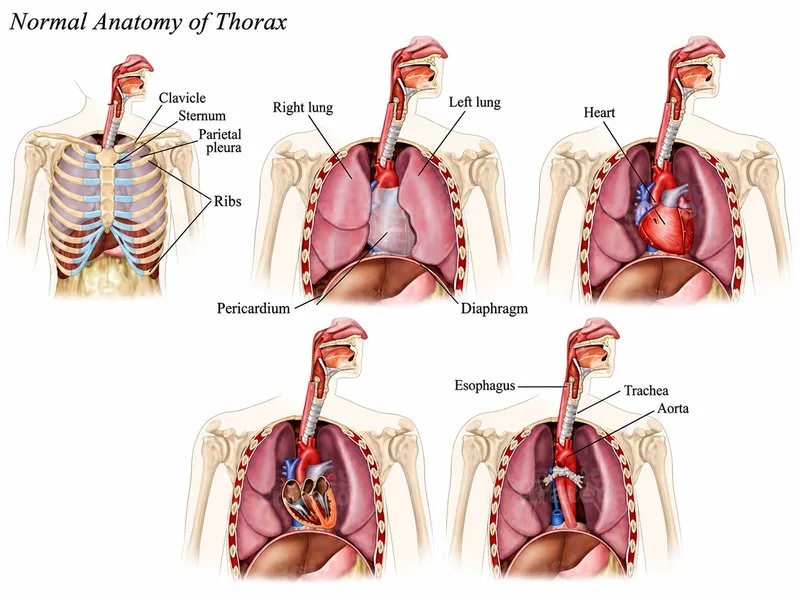

Mediastinal Divisions - Chest's Central Maze

  • Central thoracic zone between pleural cavities; divided by transverse thoracic plane (sternal angle to T4-T5 IVD) into Superior and Inferior. Inferior part is subdivided by pericardium.
  • Superior Mediastinum:
    • Contents: Thymus, brachiocephalic veins/artery, aortic arch, trachea, esophagus, thoracic duct, phrenic/vagus nerves.
  • Inferior Mediastinum:
    • Anterior: Sternum to pericardium.
      • Contents: Thymus (children), lymph nodes, fat. Retrosternal clear space.
    • Middle: Contains pericardium.
      • Contents: Heart, ascending aorta, pulmonary trunk, SVC, IVC, phrenic nerves.
    • Posterior: Pericardium to vertebrae.
      • Contents: Esophagus, descending aorta, azygos/hemiazygos veins, thoracic duct, vagus nerves.
  • Key Lines: Aortopulmonary window, azygoesophageal recess, paratracheal stripes.

⭐ Thymoma is a common anterior mediastinal mass, often associated with Myasthenia Gravis.

Lungs & Airways - Breath-Taking Views

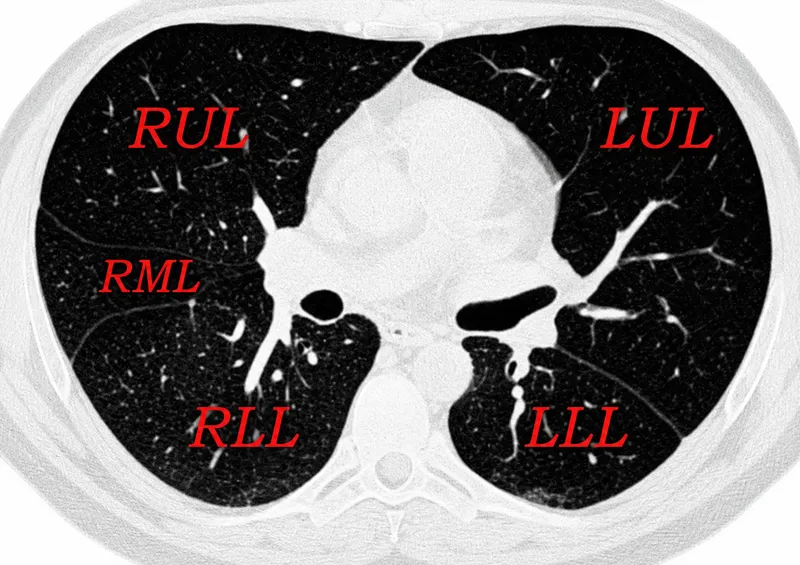

  • Lungs & Lobes: Identify on CT.
    • Right Lung: Superior, Middle, Inferior lobes.
    • Left Lung: Superior, Inferior lobes; Lingula (part of LUL).
  • Fissures: Boundaries between lobes.
    • Major (Oblique) Fissure: Bilateral, separates lower lobes from upper/middle lobes.
    • Minor (Horizontal) Fissure: Right side only, separates RUL from RML.
  • Airways:
    • Trachea bifurcates at Carina (level of T4-T5) into:
    • Main Bronchi: Right (wider, shorter, more vertical); Left.
  • Hila (Lung Roots): Medial aspect of each lung.
    • Contents: Pulmonary arteries, pulmonary veins, main bronchi, lymphatics.
    • 📌 RALS: Right Pulmonary Artery is Anterior to bronchus; Left Pulmonary Artery is Superior to bronchus.
  • Pleura: Serous membranes.
    • Visceral Pleura: Adherent to lung surface.
    • Parietal Pleura: Lines thoracic cavity.
    • Pleural Space: Potential space; common site for fluid (effusion) or air (pneumothorax).

⭐ The lingula of the left upper lobe is the developmental equivalent of the right middle lobe.

Cardiac Anatomy - Pumping Power Plan

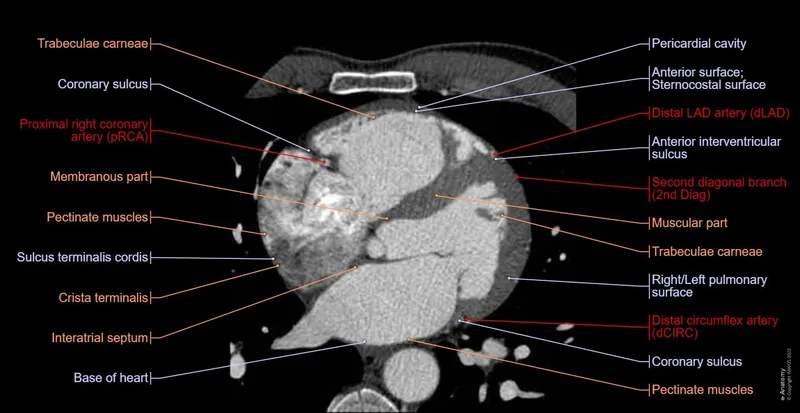

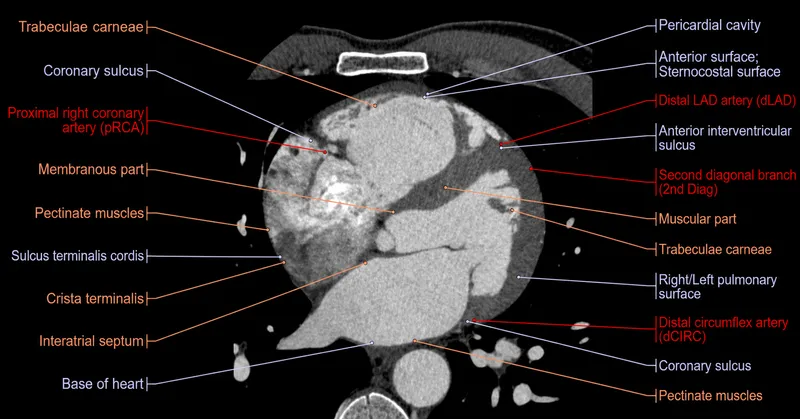

  • Cardiac Chambers & Septa:
    • Right Atrium (RA): Receives SVC, IVC, coronary sinus; forms right heart border.
    • Right Ventricle (RV): Most anterior; coarse trabeculations, moderator band (key identifier).

      ⭐ The moderator band, containing the right bundle branch, is a key radiological identifier for the morphological right ventricle.

    • Left Atrium (LA): Most posterior; receives 4 pulmonary veins; forms base.
    • Left Ventricle (LV): Forms apex & left heart border; thickest myocardium.
    • Septa: Interatrial Septum (IAS), Interventricular Septum (IVS) - thicker muscular part.
  • Pericardium: Fibroserous sac; normal thickness <2mm on CT/MRI.
  • Great Vessels (GV):
    • Aorta:
      • Ascending: Arises from LV.
      • Arch: 📌 "ABC'S" - Brachiocephalic trunk, Left Common Carotid (LCC), Left Subclavian (LSA).
      • Descending: Thoracic & abdominal portions.
    • Pulmonary Trunk (PT): Arises from RV; bifurcates into Right (RPA) & Left Pulmonary Arteries (LPA).
    • Vena Cavae: Superior (SVC) & Inferior (IVC) drain into RA.

Chest Wall & Vasculature - Ribs, Roof & Routes

  • Bony Thorax:
    • Ribs (12 pairs): True (1-7), False (8-10), Floating (11-12).
    • Sternum: Manubrium, body, xiphoid. Sternal angle (Louis) at T4-T5.
    • Thoracic Vertebrae (T1-T12): Costal facets.
  • Diaphragm:
    • Separates thorax/abdomen; R hemidiaphragm typically ↑.
    • Crura: To lumbar vertebrae.
    • Hiatuses: Caval (T8), Esophageal (T10), Aortic (T12). 📌 "I Ate Ten Eggs At Twelve" (IVC T8, Esophagus T10, Aorta T12).
  • Vasculature:
    • Azygos System: Drains posterior thorax/abdomen to SVC.
      • Azygos (R), Hemiazygos & Accessory Hemiazygos (L).

      ⭐ The azygos vein arches over the right main bronchus to drain into the SVC; its enlargement can indicate SVC obstruction or IVC interruption with azygos continuation.

    • Internal Thoracic Artery/Vein: Para-sternal.
  • Thoracic Duct: Cisterna chyli (L1-L2) → aortic hiatus → crosses at T5 → L venous angle.

High‑Yield Points - ⚡ Biggest Takeaways

  • Aortic knob: Formed by distal aortic arch; key structure on imaging.
  • Carina: Tracheal bifurcation at T4-T5; crucial for ET tube placement.
  • Right Ventricle (RV): Most anterior cardiac chamber, behind sternum.
  • Left Atrium (LA): Most posterior cardiac chamber, anterior to esophagus.
  • Aortopulmonary (AP) window: Between aortic arch & pulmonary artery; site for nodes.
  • Hilum: Bronchus posterior, pulmonary artery superior, pulmonary veins anteroinferior.
  • Descending aorta: In posterior mediastinum, left of vertebral column.

Unlock the full lesson and continue reading

Signup to continue reading this lesson and unlimited access questions, flashcards, AI notes, and more

Scan to download app

Scan to download
UNLOCK FREE ACCESS

Practice Questions: Cross-sectional Anatomy: Thorax

  1. 1. The base (posterior surface) of the heart is formed predominantly by which chamber?

    • A. Left ventricle
    • B. Right ventricle
    • C. Left atrium
    • D. Right atrium
    Show answer

    Answer: C. Left atrium

    Left atrium is correct: it forms most of the anatomical base, the posterior surface of the heart, with a smaller contribution from the right atrium. The right atrium also forms the right border; the left ventricle forms the apex and most of the diaphragmatic surface; and the right ventricle forms most of the sternocostal surface. Thus, left atrium is the best answer, consistent with standard gross anatomy descriptions in Gray’s Anatomy for Students and B. D. Chaurasia’s Human Anatomy.

  2. 2. A 25-year-old male patient presents with hypertension. Chest radiography demonstrates bilateral inferior rib notching. What is the most likely diagnosis?

    • A. Aortic coarctation
    • B. TAPVC
    • C. Ebstein's Anomaly
    • D. Tetralogy of Fallot
    Show answer

    Answer: A. Aortic coarctation

    Aortic coarctation - Inferior rib notching reflects enlarged intercostal collateral arteries, a classic radiographic finding of coarctation of the aorta. - In a young man, associated hypertension strongly supports coarctation, particularly when caused by aortic obstruction and collateral circulation. TAPVC - TAPVC involves abnormal drainage of all pulmonary veins into the systemic circulation, rather than producing inferior rib notching. - Supracardiac TAPVC classically produces a snowman or figure-of-eight sign, not the described combination of rib changes and hypertension. Ebstein's Anomaly - Ebstein’s anomaly involves apical displacement of the tricuspid valve, causing right ventricular atrialization and tricuspid regurgitation. - Its radiographic pattern is typically marked cardiomegaly from right atrial enlargement, rather than collateral intercostal vessels causing rib notching. Tetralogy of Fallot - Tetralogy of Fallot typically produces a boot-shaped heart from right ventricular hypertrophy and pulmonary outflow obstruction. - It is more characteristically associated with cyanosis and decreased pulmonary vascular markings, not isolated hypertension with inferior rib notching.

  3. 3. Which mediastinal compartment contains the esophagus immediately above the diaphragm?

    • A. Anterior division of the inferior mediastinum
    • B. Posterior division of inferior mediastinum
    • C. Middle division of inferior mediastinum
    • D. Superior mediastinum
    Show answer

    Answer: B. Posterior division of inferior mediastinum

    Posterior division of inferior mediastinum contains the esophagus immediately above the diaphragm. Middle division of inferior mediastinum contains the heart and pericardium, anterior to the esophagus. Anterior division of the inferior mediastinum lies between the sternum and pericardium. Superior mediastinum contains the upper thoracic esophagus but does not extend down to the diaphragm.

  4. 4. A 35-year-old woman develops right upper chest pain after forceful retching, without trauma. Neurovascular examination of the right upper limb is normal. The chest radiograph is shown. What is the appropriate initial treatment?

    • A. Operative rib fixation
    • B. Intercostal nerve ablation
    • C. Thoracic epidural analgesia
    • D. Oral analgesic therapy
    Show answer

    Answer: D. Oral analgesic therapy

    Oral analgesic therapy is appropriate initial treatment for the isolated first-rib fracture shown, with a normal neurovascular examination. Operative rib fixation is not routine without a specific surgical indication. Intercostal nerve ablation is not initial treatment for an uncomplicated rib fracture and is reserved for selected persistent pain conditions. Thoracic epidural analgesia is generally reserved for severe pain or multiple rib fractures rather than initial treatment of an uncomplicated isolated fracture.

  5. 5. What type of joint is formed by the costal cartilages of the 8th and 9th ribs?

    • A. Costovertebral joint
    • B. Sternocostal joint
    • C. Costochondral joint
    • D. Interchondral joint
    Show answer

    Answer: D. Interchondral joint

    Interchondral joint - The 8th and 9th costal cartilages articulate with the cartilage immediately above, forming an interchondral joint within the thoracic wall. - These joints are typically synovial plane joints, permitting limited gliding movement that contributes to respiratory mechanics. Costovertebral joint - A costovertebral joint forms between the head of a rib and the bodies of two adjacent vertebrae, with the intervertebral disc contributing to the articulation. - This joint is a synovial plane joint involved in respiratory mechanics, but it does not involve articulation between the 8th and 9th costal cartilages. Sternocostal joint - Sternocostal joint connects a costal cartilage to the sternum, not one costal cartilage to another. Costochondral joint - A costochondral joint connects a rib bone to its own costal cartilage, rather than connecting the costal cartilages of adjacent ribs. - These joints are primary cartilaginous joints or synchondroses and are generally immobile, unlike the interchondral articulation described.

  6. 6. What is the name of the marked blood vessel shown in the CT coronary angiography image?

    • A. Left anterior descending artery
    • B. Anterior septal perforator artery
    • C. Right coronary artery
    • D. Left circumflex artery
    Show answer

    Answer: A. Left anterior descending artery

    Left anterior descending artery - The left anterior descending artery courses down the anterior surface of the heart in the interventricular groove, matching the marked vessel. - The LAD supplies the anterior left ventricular wall and anterior two-thirds of the interventricular septum. Anterior septal perforator artery - Septal branches are smaller perforating arteries that arise from the LAD and descend into the interventricular septum. - The marked vessel is the main LAD trunk, rather than a smaller branch entering the septal myocardium. Right coronary artery - The right coronary artery arises from the right sinus of Valsalva and courses through the right atrioventricular groove. - Its usual right-sided course does not match the vessel descending in the anterior interventricular groove marked in the image. Left circumflex artery - The left circumflex artery wraps around the left side of the heart within the atrioventricular groove. - It does not characteristically course along the anterior interventricular groove as shown by the marked vessel.

  7. 7. The commonest site of aspiration of a foreign body in the supine position is into the:

    • A. Left lower lobe posterior basal segment
    • B. Right middle lobe medial segment
    • C. Right upper lobe apical segment
    • D. Right lower lobe superior segment
    Show answer

    Answer: D. Right lower lobe superior segment

    Right lower lobe superior segment - In the supine position, the posteriorly located superior segment of the right lower lobe becomes the most dependent region for aspirated material. - The right main bronchus is wider and more vertical, directing foreign bodies toward the right lung and commonly into this dependent segment. Left lower lobe posterior basal segment - The left main bronchus is narrower and more acutely angled than the right, making aspiration into the left lung less common. - Although aspiration may enter the left lung, its basal segments are not the most dependent regions in the supine position. Right middle lobe medial segment - The right middle lobe medial segment is not as posteriorly positioned as the superior segment of the right lower lobe when supine. - Although aspiration can involve the middle lobe, it is less dependent than the right lower lobe superior segment in this position. Right upper lobe apical segment - The right upper lobe is favored by the wider, more vertical right main bronchus, but its apical segment is not the most dependent when supine. - Aspiration is therefore less likely to settle in the apical segment than in the posterior superior segment of the right lower lobe.

  8. 8. Which of the following structures does NOT pass through the superior thoracic aperture?

    • A. Right recurrent nerve
    • B. Thoracic duct
    • C. Right brachiocephalic artery
    • D. Right vagus
    Show answer

    Answer: A. Right recurrent nerve

    Right recurrent nerve - The right recurrent laryngeal nerve loops around the right subclavian artery in the neck and ascends to the larynx. - Because it does not descend into the thorax before recurring, it does not pass through the superior thoracic aperture. Right vagus - The right vagus nerve passes through the superior thoracic aperture anterior to the right subclavian artery to enter the thorax. - It then descends posterior to the right brachiocephalic vein and superior vena cava, contributing to thoracic and abdominal innervation. Thoracic duct - The thoracic duct ascends through the posterior mediastinum and passes through the superior thoracic aperture into the neck. - It then arches laterally to terminate at the left venous angle, formed by the junction of the left internal jugular and subclavian veins. Right brachiocephalic artery - The right brachiocephalic artery, or brachiocephalic trunk, passes superiorly through the superior thoracic aperture. - It subsequently divides in the neck into the right common carotid and right subclavian arteries.

  9. 9. Which chamber enlargement shows a double right heart border with a wide subcarinal angle?

    • A. Left atrium
    • B. Right ventricle
    • C. Left ventricle
    • D. Right atrium
    Show answer

    Answer: A. Left atrium

    Left atrium - A double right heart border is a classic chest X-ray sign of left atrial enlargement, as the enlarged atrium projects into the right cardiac silhouette. - A wide subcarinal angle results when the enlarged left atrium displaces the mainstem bronchi apart, supporting left atrial enlargement. Right ventricle - Right ventricular enlargement typically causes anterior cardiac prominence and may produce sternal bowing in severe cases, rather than a double right heart border. - It displaces the left ventricle posteriorly and may shift the apex upward and leftward, but does not usually widen the subcarinal angle. Left ventricle - Left ventricular enlargement primarily produces downward and leftward displacement of the cardiac apex with prominence of the left cardiac border. - It does not typically project into the right heart silhouette or separate the bronchi, so a double right heart border and wide subcarinal angle are not characteristic. Right atrium - Right atrial enlargement usually causes a prominent right heart border extending farther laterally, rather than a double border formed by another chamber. - It does not typically displace the mainstem bronchi, so it does not explain a widened subcarinal angle.

  10. 10. Which structures appose to produce functional closure of the foramen ovale after birth?

    • A. Septum primum + Septum secundum
    • B. Septum primum + Endocardial cushions
    • C. Endocardial cushions + Septum secundum
    • D. Septum primum + Aorticopulmonary septum
    Show answer

    Answer: A. Septum primum + Septum secundum

    Septum primum + Septum secundum is correct because increased left atrial pressure after birth apposes the septum primum against the septum secundum, functionally closing the foramen ovale. Subsequent fusion produces anatomical closure and leaves the fossa ovalis. Septum primum + Aorticopulmonary septum is incorrect because the aorticopulmonary septum separates the outflow tract. Endocardial cushions + Septum secundum is incorrect because it omits the septum primum, which forms the closing valve. Septum primum + Endocardial cushions is incorrect because fusion with the cushions closes the embryonic ostium primum, not the postnatal foramen ovale.
