Detector Fundamentals - Sparking the Science

  • Radiation Detector: Converts radiation energy to a measurable signal for detection, measurement, identification.
  • Key Performance Characteristics:
    • Efficiency: Intrinsic (detector interaction %), Geometric (radiation reaching %).
    • Dead Time: Unresponsive period. Paralyzable (any event extends it), Non-paralyzable (fixed duration after detected event).
    • Energy Resolution: Distinguishes close energies (↓FWHM = better).
    • Sensitivity: Minimum detectable radiation amount.

⭐ High dead time limits maximum count rate. Paralyzable detectors may show ↓ observed counts at high true rates, a critical limit_._

Gas-Filled Detectors - Counting the Charges

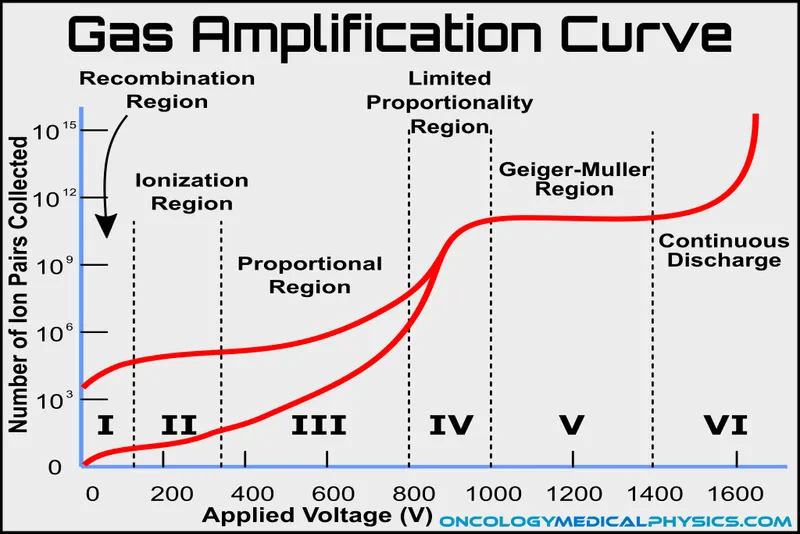

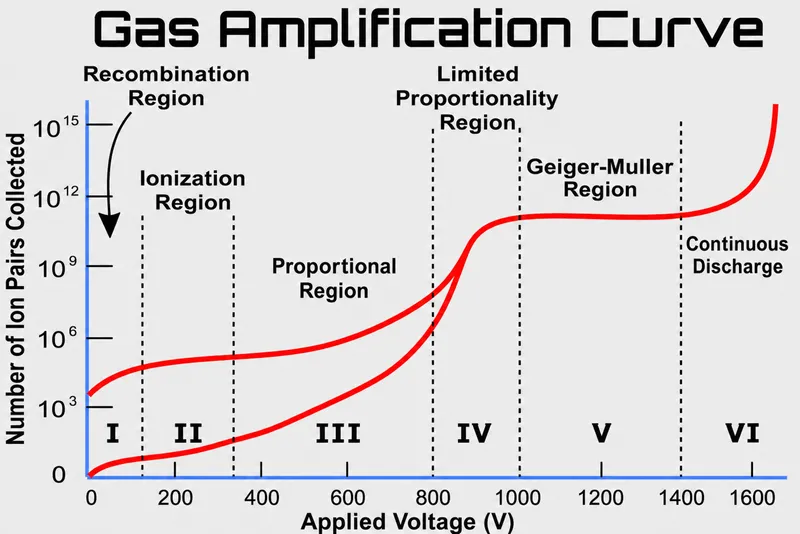

Principle: Radiation ionizes gas; an electric field collects charges. Voltage-Response Curve Regions (📌 R.I.P.L.G.C.):

  • Recombination: Ions recombine.
  • Ionization (Chamber): All charges collected.
  • Proportional: Gas amplification; pulse size ~ energy.
  • Limited Proportional: Non-linear amplification.
  • Geiger-Müller (GM): Max amplification (avalanche).
  • Continuous Discharge: Breakdown.

Types:

  • Ionization Chambers: Current measurement (DC). Apps: dose calibrators, survey meters.
  • Proportional Counters: Energy discrimination. Apps: α/β counting.

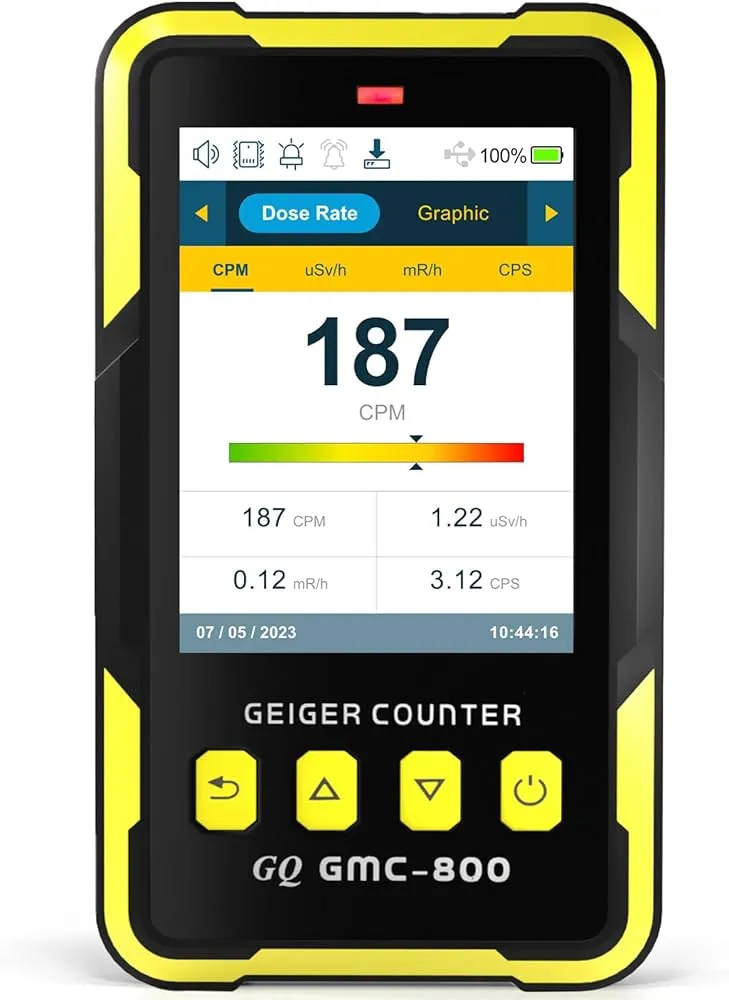

  • GM Counters: High sensitivity, no energy info. 'Quenching' vital. Apps: contamination surveys.

⭐ GM counters cannot distinguish radiation types or energies and have significant dead time.

Scintillators - Light Up the Count

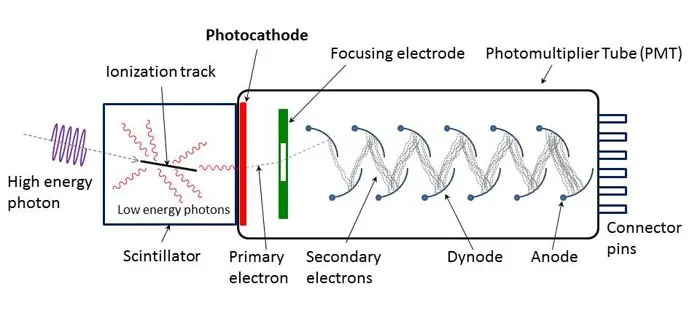

  • Principle: Radiation energy → light photons in scintillator → electrical signal via photodetector.
  • Components:
    • Scintillator Materials:
      • Inorganic: NaI(Tl), CsI(Tl), BGO, LSO, LYSO. (📌 NaI Tali, CsI Tali, BiG Ones, Lutetium SOda)
      • Organic: Plastic, liquid (for β-emitters).
    • Photodetector: Photomultiplier Tube (PMT) (photocathode, dynodes, anode) or Photodiode.
  • Key Characteristics: Light output, decay time, density, effective atomic number (Z).
  • Applications: Gamma camera (NaI(Tl)), PET (BGO, LSO, LYSO), well counters, liquid scintillation counters.

⭐ NaI(Tl) is the most common scintillator in gamma cameras due to its high light output and good efficiency for typical gamma ray energies.

Solid-State Detectors - Crystal Clear Counts

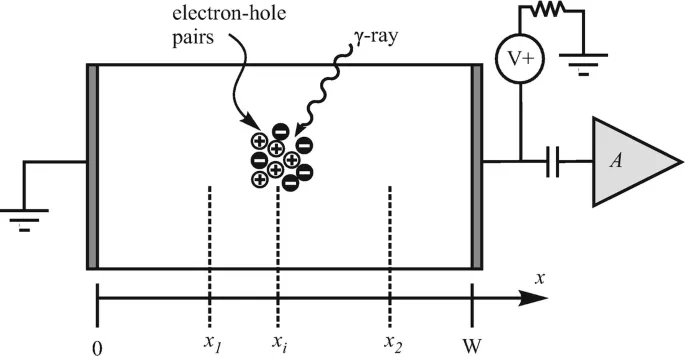

  • Principle: Radiation creates electron-hole (e-h) pairs in semiconductor (Si, Ge). P-N junction's depletion region collects charge.
  • Advantages: Superior energy resolution; low energy ($W$) needed per e-h pair.
  • Types:
    • Silicon (Si(Li)): For X-rays, charged particles.
    • Germanium (HPGe): For gamma spectroscopy; requires cooling (e.g., liquid N₂).
  • Disadvantages: High cost, radiation damage susceptibility, HPGe cooling needs.

⭐ HPGe: Unmatched energy resolution for gamma spectroscopy, vital for radionuclide ID.

Dosimeters & Devices - Measuring the Dose

  • Thermoluminescent Dosimeters (TLDs):
    • Principle: Electrons trapped in material (e.g., LiF:Mg,Ti) emit light on heating (glow curve).
    • Applications: Personnel & environmental monitoring.

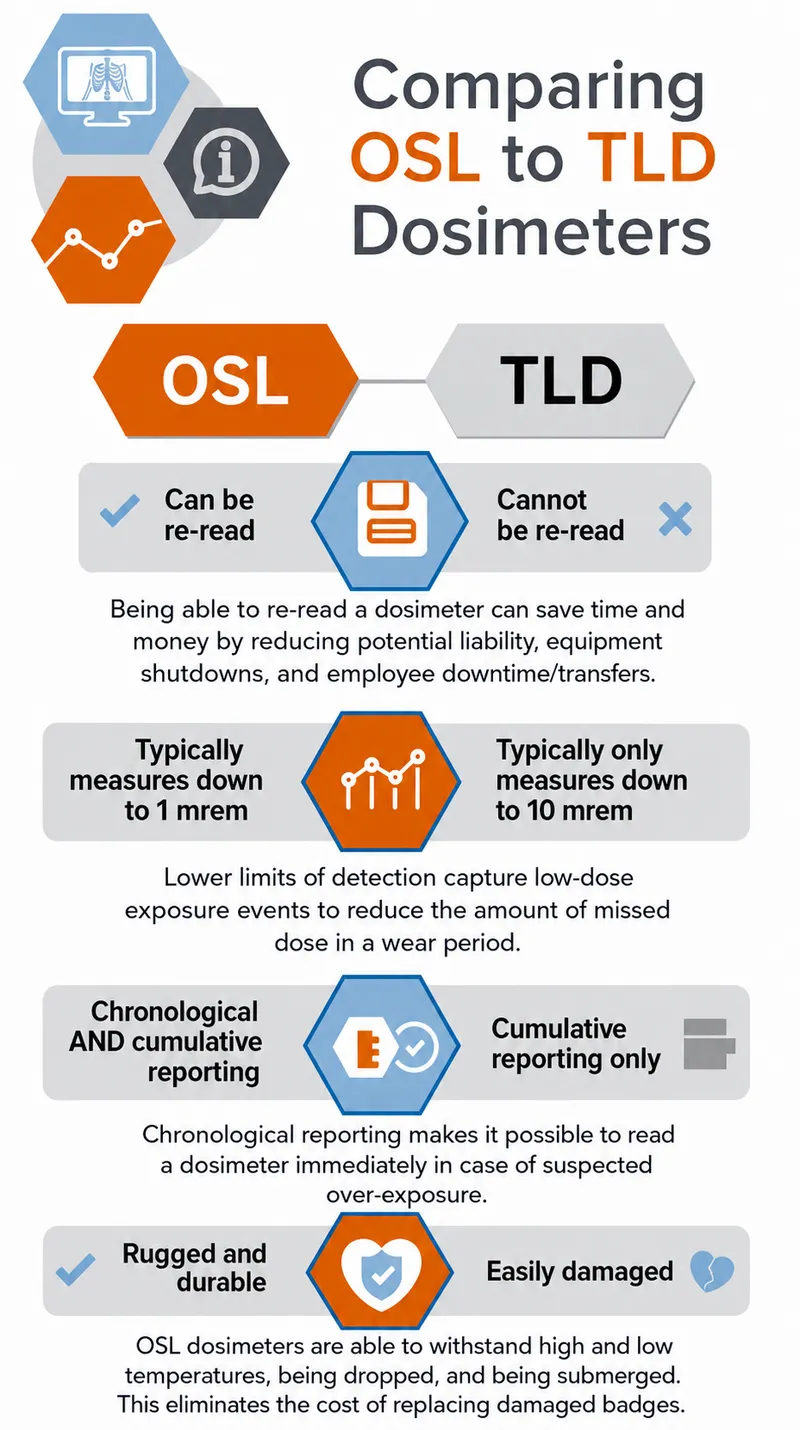

  • Optically Stimulated Luminescence Dosimeters (OSLDs):
    • Principle: Light stimulation releases trapped charge, emitting light (e.g., Al₂O₃:C).
    • Advantages: Re-readable, higher sensitivity.
  • Film Badges:
    • Principle: Ionizing radiation blackens silver halide emulsion.
    • Disadvantages: Fading, sensitive to heat/humidity.
  • Electronic Personal Dosimeters (EPDs):
    • Semiconductor-based; provide real-time dose & dose rate readout, alarms.

⭐ TLDs (LiF) are nearly tissue-equivalent (effective Z similar to tissue), making them suitable for personnel dosimetry for whole-body dose.

High‑Yield Points - ⚡ Biggest Takeaways

  • Gas-filled detectors (Ionization chamber, Proportional, GM counter) operate via gas ionization.
  • Ionization chambers are used in dose calibrators and Automatic Exposure Control (AEC).
  • Geiger-Muller (GM) counters: highly sensitive for contamination surveys, but offer no energy discrimination.
  • Scintillation detectors (e.g., NaI(Tl)) convert radiation to light; core of gamma cameras.
  • Thermoluminescent Dosimeters (TLDs) like LiF store energy, released as light on heating; for personnel dosimetry.
  • Semiconductor detectors provide superior energy resolution for radionuclide identification.

Unlock the full lesson and continue reading

Signup to continue reading this lesson and unlimited access questions, flashcards, AI notes, and more

Scan to download app

Scan to download
UNLOCK FREE ACCESS

Practice Questions: Radiation Detectors

  1. 1. Which technique delivers a single ablative radiation dose to a small intracranial target using three-dimensional image-guided localization?

    • A. Total-body irradiation
    • B. Whole-brain radiation therapy
    • C. Stereotactic radiosurgery
    • D. Craniospinal irradiation
    Show answer

    Answer: C. Stereotactic radiosurgery

    Stereotactic radiosurgery delivers a single highly focused ablative dose to a small intracranial target using precise image-guided localization. Whole-brain radiation therapy treats the whole brain rather than a small focal target and is generally fractionated. Craniospinal irradiation treats the craniospinal axis rather than a small intracranial target. Total-body irradiation exposes the whole body, commonly as part of conditioning for hematopoietic stem-cell transplantation.

  2. 2. What is the most likely diagnosis on the thyroid scintigraphy shown?

    • A. Papillary cancer thyroid
    • B. Graves' disease
    • C. Lateral aberrant thyroid
    • D. Hypersecreting adenoma
    Show answer

    Answer: D. Hypersecreting adenoma

    Hypersecreting adenoma - A hypersecreting adenoma appears as a single intensely hot nodule, reflecting increased radioactive tracer uptake by autonomously functioning tissue. - Autonomous hormone production suppresses the remaining thyroid, producing reduced uptake in surrounding tissue and identifying a toxic adenoma. Papillary cancer thyroid - Papillary thyroid carcinoma typically appears as a cold nodule because malignant tissue usually has reduced or absent radioactive iodine uptake. - A single intensely hot nodule instead indicates autonomous hormone production, making papillary cancer inconsistent with the described scan pattern. Graves' disease - Graves disease causes diffuse, symmetrical increased uptake throughout the thyroid, reflecting generalized gland hyperactivity. - The scan describes a localized hot nodule with suppression of surrounding thyroid tissue, which favors an autonomous adenoma rather than Graves disease. Lateral aberrant thyroid Lateral aberrant thyroid conventionally denotes thyroid carcinoma metastatic to a lateral cervical lymph node, usually from papillary thyroid carcinoma. It does not describe the autonomously functioning intrathyroidal nodule demonstrated here.

  3. 3. Which imaging modality is preferred for initial anatomical assessment of thoracic and abdominal metastases in breast cancer?

    • A. Ultrasonography
    • B. Plain radiography
    • C. Computed tomography
    • D. Magnetic resonance imaging
    Show answer

    Answer: C. Computed tomography

    Computed tomography is preferred for initial anatomical assessment of thoracic and abdominal metastases because it evaluates the lungs, liver and lymph nodes efficiently, usually with intravenous contrast. CT alone is not a complete whole-body staging strategy. Magnetic resonance imaging is valuable for selected sites but is not the routine first choice for simultaneous thoracic and abdominal assessment. Ultrasonography can assess liver lesions but cannot comprehensively evaluate pulmonary and mediastinal disease. Plain radiography is substantially less sensitive and cannot adequately stage abdominal metastases.

  4. 4. Which device is used to monitor occupational radiation dose?

    • A. TLD badge
    • B. Dose calibrator
    • C. CTDI chamber
    • D. DAP meter
    Show answer

    Answer: A. TLD badge

    TLD badge - A TLD badge monitors an individual’s exposure to ionizing radiation over time by storing radiation energy in a thermoluminescent material. - When heated, the material releases light proportional to absorbed dose, allowing the worker’s cumulative exposure to be calculated. DAP meter - A DAP meter measures the dose–area product of an X-ray beam, not an individual worker’s accumulated radiation dose. CTDI chamber - A CTDI chamber measures CT scanner radiation output for calculating the CT dose index, not a worker’s personal dose. Dose calibrator - A Dose calibrator measures the activity of a radiopharmaceutical, not occupational radiation dose.

  5. 5. The longest half life is that of:

    • A. Ra-226
    • B. U-238
    • C. Cs-137
    • D. Rn-222
    Show answer

    Answer: B. U-238

    U-238 - Uranium-238 has an exceptionally long half-life of approximately 4.468 billion years, comparable to the age of Earth, making it the longest-lived option. - Its long half-life reflects very slow alpha decay, so uranium-238 remains radioactive over an extremely prolonged period. Ra-226 - Radium-226 has a half-life of approximately 1,600 years, which is substantial but far shorter than uranium-238’s billion-year timescale. - Although radium persists longer than radon and cesium-137, its radioactive decay occurs much faster than uranium’s. Rn-222 - Radon-222 has a relatively short half-life of approximately 3.8 days, so it decays far more rapidly than the other listed isotopes. - Its short half-life contributes to radon’s significance as an indoor air pollutant, because it rapidly produces additional radioactive decay products. Cs-137 - Cesium-137 has a half-life of approximately 30 years, longer than radon-222 but much shorter than uranium-238. - Although cesium-137 persists after nuclear fission, it decays significantly faster than uranium and therefore is not the longest-lived option.

  6. 6. For conventional Point A-based definitive radiotherapy of cervical cancer, what approximate cumulative dose from external-beam radiotherapy plus brachytherapy is delivered to Point A, expressed as EQD2 using an α/β of 10 Gy?

    • A. 8000 rad
    • B. 4000 rad
    • C. 6000 rad
    • D. 10000 rad
    Show answer

    Answer: A. 8000 rad

    8000 rad corresponds to 80 Gy and is the closest listed value to a conventional cumulative Point A target of approximately 80–90 Gy EQD2 from external-beam radiotherapy plus brachytherapy. 10000 rad corresponds to 100 Gy and exceeds this usual cumulative target, although toxicity also depends on organ-at-risk doses and fractionation. 4000 rad corresponds to 40 Gy and is below the usual cumulative definitive target. 6000 rad corresponds to 60 Gy and is also below that target; none of these figures should be interpreted as a universal physical brachytherapy-only dose.

  7. 7. An MLO view of the left breast is shown. What is the MOST likely diagnosis?

    • A. Fibroadenomas
    • B. Papillomatosis
    • C. Fat necrosis
    • D. Simple breast cysts
    Show answer

    Answer: A. Fibroadenomas

    Fibroadenomas are supported by the circumscribed intraparenchymal masses and characteristic coarse popcorn calcification in the mammogram. Papillomatosis may be mammographically occult or produce masses and calcifications, sometimes with nipple discharge. Fine linear branching calcifications are suspicious for ductal carcinoma in situ rather than a characteristic benign papillomatosis pattern. Papillomatosis does not characteristically produce popcorn-calcified masses. Fat necrosis more typically produces fat-containing lesions, oil cysts, or rim calcification, although it can also mimic malignancy. Simple breast cysts can appear circumscribed on mammography, but ultrasound establishes their anechoic fluid content and they do not characteristically show popcorn calcification.

  8. 8. Which examination typically delivers the highest effective radiation dose in an adult?

    • A. Single-phase chest CT
    • B. Tl-201 myocardial perfusion scan
    • C. Bilateral two-view screening mammography
    • D. Noncontrast brain CT
    Show answer

    Answer: B. Tl-201 myocardial perfusion scan

    Tl-201 myocardial perfusion scan - A Tl-201 myocardial perfusion scan administers a radioactive tracer, whose isotope emissions contribute substantially to the patient’s radiation exposure. - Its effective dose can range from approximately 10–30 mSv, placing it above the listed CT examinations and mammography. Single-phase chest CT - A single-phase chest CT typically delivers about 5–7 mSv, which is substantially higher than plain radiography but below the stated dose range for cardiac perfusion imaging. - It is not the best choice because nuclear medicine studies can involve radiation from an administered tracer, producing a higher overall effective dose than this CT examination. Noncontrast brain CT - A noncontrast brain CT usually delivers approximately 1–2 mSv, making its radiation exposure lower than that of chest CT and cardiac perfusion imaging. - The smaller scanned volume and relevant dose estimates help explain why brain CT does not deliver the highest dose among these listed modalities. Bilateral two-view screening mammography - Bilateral two-view screening mammography generally delivers only about 0.2–0.7 mSv, because breast imaging is performed with a relatively low-dose X-ray technique. - This exposure is much lower than the dose from cardiac perfusion imaging, so mammography cannot be the highest-dose modality listed.

  9. 9. In which of the following conditions is Stereotactic Radiosurgery primarily indicated?

    • A. Brain AVM
    • B. Medulloblastoma
    • C. Ependymoma
    • D. Glioblastoma multiforme
    Show answer

    Answer: A. Brain AVM

    Brain AVM - Brain arteriovenous malformations are a primary indication for SRS, especially when small to medium-sized or located in eloquent regions where surgery may be difficult. - SRS delivers a highly focused radiation dose that gradually obliterates abnormal vessels and reduces the long-term risk of hemorrhage. Glioblastoma multiforme - Glioblastoma multiforme is primarily managed with maximal surgical resection followed by concurrent chemoradiotherapy, rather than initial solitary SRS. - SRS may have a role in selected recurrent GBM or as a treatment boost, but it is not the primary indication here. Medulloblastoma - Medulloblastoma is usually a cerebellar tumour managed with surgery, risk-adapted chemotherapy, and radiotherapy including craniospinal irradiation when appropriate; focal stereotactic radiosurgery is not its standard primary treatment. Ependymoma - Ependymoma is usually treated first with surgical resection, with radiotherapy considered as adjuvant treatment when indicated. - Radiotherapy is more commonly delivered as conventional fractionated external-beam therapy, making ependymoma a less characteristic primary indication for SRS.

  10. 10. The thyroid scan shown below exhibits a pattern that is most consistent with which of the following disorders?

    • A. Papillary thyroid carcinoma
    • B. Graves' hyperthyroidism
    • C. Hypersecreting adenoma
    • D. Lateral aberrant thyroid
    Show answer

    Answer: C. Hypersecreting adenoma

    Hypersecreting adenoma - A hypersecreting adenoma produces thyroid hormone autonomously and therefore appears as a focal hot nodule with increased tracer uptake. - Excess hormone suppresses TSH secretion, causing reduced uptake in the remaining thyroid tissue and distinguishing this pattern from diffuse thyroid overactivity. Papillary thyroid carcinoma - Papillary carcinoma usually appears as a cold nodule on thyroid scintigraphy because malignant cells generally concentrate iodine less efficiently than normal thyroid tissue. - Although it is the most common thyroid cancer, papillary carcinoma is rarely associated with increased tracer uptake, unlike the described focal hyperfunctioning pattern. Lateral aberrant thyroid - A lateral aberrant thyroid generally refers to thyroid tissue or metastatic thyroid carcinoma in a cervical lymph node, producing uptake outside the thyroid gland. - It would not explain a focal hot nodule within the thyroid with suppression of the surrounding gland, which indicates autonomous intrathyroidal function. Graves' hyperthyroidism - Graves' disease causes generalized stimulation of thyroid follicular cells by autoantibodies, producing diffuse increased uptake throughout the gland. - The expected scan is a uniformly active thyroid, not a single hot focus with suppressed uptake in the remaining tissue.

Flashcards: Radiation Detectors

  1. 1. is used to monitor radiation dose in India

    Show answer

    TLD badge (Thermoluminescent dosimeter)

  2. 2. Re-186 is a beta emitter that also emits radiation.

    Show answer

    Gamma radiation (in addition to beta)

  3. 3. SI unit of absorbed radiation is _____ and the common unit is _____.

    Show answer

    Gray · RAD

  4. 4. What is the SI unit for radiation exposure?

    Show answer

    Coulomb/kg

  5. 5. P32 is a pure emitter

    Show answer

    beta (radiation)

  6. 6. Optical Coherence Tomography uses the principle of _____

    Show answer

    near-infrared light interferometry

  7. 7. <_____ rads/year is the permissible level of radiation

    Show answer

    5

  8. 8. wearing _____ decreases dose of x rays by >90%

    Show answer

    lead aprons

  9. 9. The average annual radiation dose received by an individual from all sources (natural + medical) is _____ rad.

    Show answer

    0.2-0.3

  10. 10. _____ rays is the most harmful ionising radiation

    Show answer

    alpha
