Novel Radiotracers & Theranostics - Target, Treat, Triumph

  • Precision Targeting:
    • PSMA Ligands: For prostate cancer imaging ($^{68}$Ga-PSMA) & therapy ($^{177}$Lu-PSMA).
    • FAPI Tracers: Fibroblast Activation Protein Inhibitors for broad tumor imaging.
    • SSTR Analogs: For Neuroendocrine Tumors (NETs) ($^{68}$Ga-DOTATATE, $^{177}$Lu-DOTATATE).
  • Theranostic Pairs: "See what you treat, treat what you see."
    • Diagnostic isotope (e.g., $^{68}$Ga, $^{18}$F) guides therapy with therapeutic isotope (e.g., $^{177}$Lu, $^{90}$Y, $^{225}$Ac).
    • Alpha-emitters ($^{225}$Ac): High potency, minimal collateral damage.

⭐ PSMA-targeted theranostics are revolutionizing prostate cancer management, with $^{177}$Lu-PSMA-617 (Pluvicto™) FDA-approved for mCRPC.

  • Emerging Frontiers:
    • AI in radiotracer development & response assessment.
    • Expansion beyond oncology (e.g., inflammation, infection).

AI & Advanced Tech - Intelligent Imaging Insights

  • AI/ML Revolutionizing Imaging:
    • Image reconstruction: faster, lower dose (e.g., low-dose PET).
    • Automated segmentation & quantification for precise analysis.
    • CAD/CADx: enhanced lesion detection & characterization.
    • Radiomics/Radiogenomics: extracting predictive biomarkers.
    • Workflow optimization & AI-assisted reporting.
  • Cutting-Edge Hardware:
    • Total-body PET: ↑↑ sensitivity, ↓ scan time/dose, dynamic whole-body studies.
    • Photon-counting CT detectors: superior spectral information for hybrid imaging.
    • Advanced SiPMs (Silicon Photomultipliers): boosting PET performance.
    • AI-adaptive scanners: real-time protocol adjustments.

⭐ AI in PET image analysis can improve diagnostic accuracy for small or low-uptake lesions by up to 15-20% in some studies.

Loading diagram…

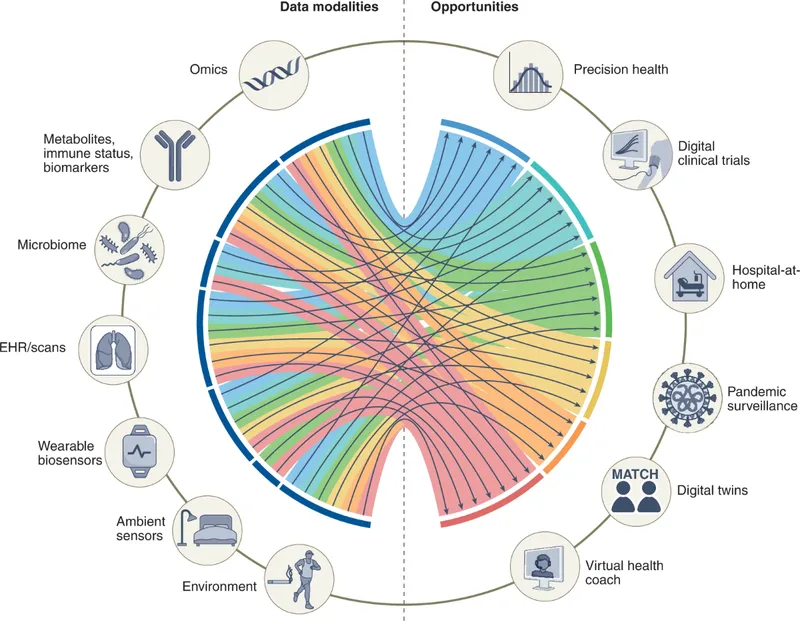

Omics & Personalized Medicine - Custom Care Chronicles

  • Integrative Omics: Combines genomics, transcriptomics, proteomics, metabolomics with imaging.
    • Genomics: Identifies genetic predispositions & drug response biomarkers (e.g., EGFR mutations in lung cancer for TKI therapy).
    • Proteomics: Analyzes protein expression for early detection & targeted therapies.
    • Metabolomics: Profiles metabolic changes, offering insights into disease activity (e.g., choline peak in MRS for malignancy).
  • Radiogenomics: Correlates imaging phenotypes with genomic data.
    • Predicts tumor behavior, treatment response, and prognosis.
    • Example: Texture analysis on CT/MRI linked to specific gene mutations.
  • Theranostics: Combines diagnosis and therapy using targeted radiopharmaceuticals (e.g., PSMA PET/Lu-177 PSMA therapy).

⭐ Radiogenomics is increasingly used to non-invasively predict treatment response in glioblastoma by correlating MRI features with molecular subtypes like IDH mutation status and MGMT promoter methylation.

  • AI & Machine Learning: Essential for analyzing large-scale omics and imaging datasets to identify complex patterns for personalized risk assessment and treatment selection. Customizes care by predicting individual patient outcomes to specific therapies.

High‑Yield Points - ⚡ Biggest Takeaways

  • Theranostics: Key focus, merging diagnostics with targeted radionuclide therapy.
  • AI & Machine Learning: Revolutionizing image analysis, quantification, and drug discovery.
  • Novel Radiotracers: Ongoing development for improved specificity and sensitivity.
  • Hybrid/Multimodality Imaging: Combining strengths (e.g., PET/MRI) for comprehensive assessment.
  • Intraoperative Molecular Imaging: Enabling real-time, image-guided surgical interventions.
  • Personalized Medicine: Using molecular insights to tailor patient-specific treatments.
  • Advanced Modalities: Exploring optoacoustic/photoacoustic imaging as non-ionizing alternatives.

Unlock the full lesson and continue reading

Signup to continue reading this lesson and unlimited access questions, flashcards, AI notes, and more

Scan to download app

Scan to download
UNLOCK FREE ACCESS

Practice Questions: Future Directions in Molecular Imaging

  1. 1. Which option identifies all the direct protein-level techniques listed below that are used in expression proteomics?

    • A. Mass spectrometry and PAGE
    • B. RNA sequencing and RT-PCR
    • C. Mass spectrometry and RNA sequencing
    • D. PAGE and mRNA expression profiling
    Show answer

    Answer: A. Mass spectrometry and PAGE

    Mass spectrometry and PAGE are direct protein-level techniques used in expression proteomics. Mass spectrometry identifies proteins by measuring peptide mass-to-charge ratios and matching peptide data to protein sequences. PAGE separates proteins and, with suitable staining and densitometry, permits comparison of protein abundance. RNA sequencing and RT-PCR measure transcript expression rather than protein abundance. Mass spectrometry and RNA sequencing includes RNA sequencing, which measures transcripts rather than proteins. PAGE and mRNA expression profiling includes mRNA expression profiling, which measures transcripts rather than proteins. These transcript measurements may complement proteomics but are not direct protein-level techniques.

  2. 2. What is the predominant mechanism of heat transfer from the rotating anode to the tube envelope in a conventional X-ray tube?

    • A. Evaporation
    • B. Radiation
    • C. Conduction
    • D. Convection
    Show answer

    Answer: B. Radiation

    Radiation - The anode reaches temperatures above 1000°C, allowing substantial heat release as infrared radiation from its surface. - Because the X-ray tube envelope is under a vacuum, radiation is the primary effective route for heat loss from the anode. Evaporation Evaporation is not a normal cooling mechanism for the solid anode. Vacuum does not itself prevent evaporation; loss of anode material by vaporisation would be undesirable rather than a routine cooling process. Conduction - Conduction transfers heat internally from the focal spot through the anode and toward components such as the rotor bearings. - It is not the primary mechanism of heat loss from the tube; conducted heat must ultimately be dissipated through radiation or external cooling. Convection - Convection requires movement of a liquid or gas, which cannot occur within the vacuum of the X-ray tube envelope. - Cooling oil outside the envelope can use convection, but this is secondary heat removal, not the primary loss mechanism from the anode.

  3. 3. Based on the provided image, which of the following is the correct diagnosis?

    • A. Bicornuate Uterus
    • B. Septate uterus
    • C. Unicornuate Uterus
    • D. Complete uterine duplication
    Show answer

    Answer: C. Unicornuate Uterus

    Unicornuate Uterus is favored by the narrow, curved, laterally deviated single endometrial cavity and one opacified tube. It results from unilateral Müllerian duct developmental failure; a noncommunicating rudimentary horn may not opacify. Bicornuate Uterus generally produces two communicating cavity horns and may have one or two cervices; its external fundal cleft requires ultrasound or MRI assessment. Septate uterus usually produces a divided endometrial cavity, unlike the single curved cavity shown; its external contour cannot be assessed by HSG. Complete uterine duplication comprises two separate uteri, usually with two cervices; unilateral HSG filling can occasionally miss the other cavity, but the demonstrated morphology most strongly favors a unicornuate uterus.

  4. 4. Which imaging technique is demonstrated?

    • A. Sonohysterography
    • B. Doppler sonography
    • C. 3D sonography
    • D. Hysterosalpingography
    Show answer

    Answer: A. Sonohysterography

    Sonohysterography - The image shows a fluid-filled uterine cavity with an echogenic endometrial lining, characteristic of saline infusion sonography. - Instilled saline distends the cavity, improving visualization of endometrial abnormalities such as polyps or submucosal fibroids. Doppler sonography - Doppler sonography evaluates blood flow, typically displaying color flow overlays or spectral waveforms indicating velocity and direction. - It does not primarily outline the uterine cavity with fluid; it is instead useful for assessing vascularity and vessel patency. 3D sonography - 3D sonography produces multiplanar views and volumetric reconstructions rather than the single two-dimensional cavity image shown. - Although it can assess uterine anomalies, the depicted fluid-distended cavity does not demonstrate a three-dimensional reconstruction. Hysterosalpingography - Hysterosalpingography uses radiopaque contrast injected into the uterus and fallopian tubes, followed by radiographic imaging. - Hysterosalpingography produces a radiographic image of the contrast-opacified uterine cavity, with tubal opacification and peritoneal spill depending on tubal patency, rather than the ultrasound image shown.

  5. 5. The longest half life is that of:

    • A. Ra-226
    • B. U-238
    • C. Cs-137
    • D. Rn-222
    Show answer

    Answer: B. U-238

    U-238 - Uranium-238 has an exceptionally long half-life of approximately 4.468 billion years, comparable to the age of Earth, making it the longest-lived option. - Its long half-life reflects very slow alpha decay, so uranium-238 remains radioactive over an extremely prolonged period. Ra-226 - Radium-226 has a half-life of approximately 1,600 years, which is substantial but far shorter than uranium-238’s billion-year timescale. - Although radium persists longer than radon and cesium-137, its radioactive decay occurs much faster than uranium’s. Rn-222 - Radon-222 has a relatively short half-life of approximately 3.8 days, so it decays far more rapidly than the other listed isotopes. - Its short half-life contributes to radon’s significance as an indoor air pollutant, because it rapidly produces additional radioactive decay products. Cs-137 - Cesium-137 has a half-life of approximately 30 years, longer than radon-222 but much shorter than uranium-238. - Although cesium-137 persists after nuclear fission, it decays significantly faster than uranium and therefore is not the longest-lived option.

  6. 6. All of the following are true of sunitinib EXCEPT:

    • A. Treatment of imatinib-resistant GIST
    • B. Predominantly urinary excretion
    • C. Receptor tyrosine kinase inhibition
    • D. Treatment of renal cell carcinoma
    Show answer

    Answer: B. Predominantly urinary excretion

    Predominantly urinary excretion - This is the exception because sunitinib is not primarily excreted in urine; it is predominantly eliminated through the feces. - Sunitinib is metabolized mainly by hepatic CYP3A4, and its active N-desethyl metabolite is also primarily eliminated via the fecal route. Treatment of imatinib-resistant GIST - Sunitinib is used for imatinib-refractory or imatinib-intolerant gastrointestinal stromal tumors (GIST). - Its activity in GIST results from inhibition of KIT and PDGFR, which may be mutated and constitutively active in these tumors. Receptor tyrosine kinase inhibition - Sunitinib is a multitargeted receptor tyrosine kinase inhibitor used against pathways supporting tumor growth and angiogenesis. - It inhibits several RTKs, including VEGFR, PDGFR, KIT, and FLT3, distinguishing it from agents directed at only one kinase. Treatment of renal cell carcinoma - Sunitinib is used in advanced renal cell carcinoma (RCC) and has been an established systemic treatment for this malignancy. - Its benefit in RCC is largely related to VEGFR inhibition, which suppresses angiogenesis in these highly vascular tumors.

  7. 7. Which radionuclide labels the glucose analogue most commonly used for PET imaging?

    • A. Fluorine 18
    • B. Nitrogen 13
    • C. Carbon 11
    • D. Oxygen 15
    Show answer

    Answer: A. Fluorine 18

    Fluorine 18 - Fluorine-18 is the radioactive component of 18F-FDG, the most commonly used PET tracer administered as a glucose analogue. - FDG mimics glucose, enters metabolically active cells, and enables PET imaging of regional glucose metabolism. Oxygen 15 - Oxygen-15 is a positron-emitting radionuclide used in PET tracers such as 15O-water for assessing cerebral blood flow, not as the usual glucose analogue. - Its approximately 2-minute half-life requires rapid production and limits routine clinical use, making it unsuitable as the common glucose-based PET tracer. Carbon 11 - Carbon-11 can label PET tracers such as 11C-methionine, but it is not the usual radionuclide used in glucose-based PET imaging. - Its approximately 20-minute half-life requires an on-site cyclotron, limiting availability compared with 18F-FDG. Nitrogen 13 - Nitrogen 13 is used in 13N-ammonia for myocardial perfusion PET, not in the routinely used glucose analogue 18F-FDG.

  8. 8. Which method is the diagnostic reference standard for distinguishing cerebral radiation necrosis from recurrent tumor after radiotherapy?

    • A. Positron emission tomography
    • B. Computed tomography
    • C. Magnetic resonance imaging
    • D. Biopsy
    Show answer

    Answer: D. Biopsy

    Biopsy - Biopsy is the definitive diagnostic method because histological examination can directly demonstrate necrosis and associated cellular changes. - Tissue examination also helps exclude residual or recurrent malignancy, which imaging studies may not reliably distinguish from radiation-induced necrosis. Positron emission tomography - Positron emission tomography may help distinguish recurrent tumor from radiation necrosis by metabolic uptake, but inflammatory changes in necrosis can cause increased uptake and false-positive results. - Because of this limited specificity, Positron emission tomography is less definitive than tissue examination and cannot reliably establish the diagnosis alone. Computed tomography - Computed tomography may demonstrate low-density lesions, edema, or mass effect associated with radiation injury, but these findings are not specific for necrosis. - It has limited sensitivity for distinguishing radiation necrosis from residual or recurrent tumor, so it cannot definitively establish the diagnosis. Magnetic resonance imaging - Magnetic resonance imaging can show T1 hypointensity, T2 hyperintensity, edema, and mass effect in radiation necrosis, but these structural findings are nonspecific. - Magnetic resonance imaging often cannot reliably differentiate radiation necrosis from tumor recurrence, making it supportive rather than definitive for diagnosis.

  9. 9. What is the investigation performed?

    • A. X-ray mammography
    • B. Breast MR imaging
    • C. Chest radiography
    • D. Breast ultrasonography
    Show answer

    Answer: A. X-ray mammography

    X-ray mammography - The paired compressed-breast projection radiographs are characteristic of mammography, which permits assessment of breast tissue, masses, and calcifications. - A dedicated breast X-ray unit uses compression paddles to spread tissue and improve visualization of masses and calcifications. Breast MR imaging - Breast MRI produces cross-sectional images in multiple planes, such as axial, sagittal, and coronal views, rather than compressed breast projections. - It commonly uses intravenous contrast to assess soft-tissue enhancement patterns, unlike the radiographic appearance shown here. Chest radiography - Plain chest radiography images the thoracic cavity, including the lungs, ribs, and mediastinum, usually in a standard chest projection. - It does not use specialized breast positioning and compression, which distinguish dedicated mammographic imaging from a chest X-ray. Breast ultrasonography - Breast ultrasonography produces sonographic sections using a transducer, rather than the compressed projection radiographs displayed here.

  10. 10. A 79-year-old man undergoes head CT after facial trauma. What is the diagnosis shown?

    • A. Intraventricular hemorrhage
    • B. Acute hydrocephalus
    • C. Traumatic pneumocephalus
    • D. Subarachnoid hemorrhage
    Show answer

    Answer: C. Traumatic pneumocephalus

    Traumatic pneumocephalus - The image shows intracranial air, including dark areas within the brain parenchyma and ventricles, consistent with pneumocephalus after facial trauma. - Skull-base or paranasal sinus fractures can allow air to enter the cranial cavity, making pneumocephalus a relevant traumatic finding. Subarachnoid hemorrhage - Subarachnoid hemorrhage appears as hyperdense blood in the cortical sulci and basal cisterns on CT, rather than the described hypodense intracranial areas. - The described dark intracranial areas indicate air following trauma, not blood distributed through the subarachnoid spaces. Intraventricular hemorrhage - Intraventricular hemorrhage produces hyperdense material within the ventricles on CT because acute blood appears bright. - The described hypodense black appearance represents air within or around the intracranial spaces, not bright blood inside the ventricles. Acute hydrocephalus - Hydrocephalus causes enlarged ventricles from excess cerebrospinal fluid, rather than discrete intracranial air pockets. - The absence of significantly dilated ventricles and the presence of distinct dark air collections argue against hydrocephalus.

Flashcards: Future Directions in Molecular Imaging

  1. 1. C11 Methionine PET is done for the

    Show answer

    brain tumor.

  2. 2. Which compounds in molecular imaging are used for the diagnosis of neuroendocrine tumors?

    Show answer

    68Ga-DOTATOC, 68Ga-DOTATATE, and 68Ga-DOTANOC

  3. 3. is a radioactive PET imaging agent that is used to estimate the density of aggregated neurofibrillary tangles in Alzheimer's disease

    Show answer

    Flortaucipir F18
