Contrast Administration Protocols

On this page

Basics of Contrast Media - Agent Essentials

  • Purpose: Enhance visibility of internal structures.
  • Types:
    • Positive (radiopaque): ↑ X-ray attenuation.
      • Barium Sulfate ($BaSO_4$): GI tract (oral/rectal).
      • Iodinated: Vascular, GU, biliary.
        • Ionic (HOCM): ↑ Osmolality, ↑ adverse reactions.
        • Non-ionic (LOCM/IOCM): ↓ Osmolality, safer. IOCM (e.g., Iodixanol) ≈ 290 mOsm/kg $H_2O$ (iso-osmolar).
    • Negative (radiolucent): ↓ X-ray attenuation (Air, $CO_2$).
    • Neutral: Bowel distension (Water, Volumen).
  • Key Properties: Atomic number (Z), Concentration, Osmolality, Viscosity. ⭐ > Non-ionic iso-osmolar contrast media (IOCM) like Iodixanol offer the best safety profile, especially regarding CIN.
Loading diagram…

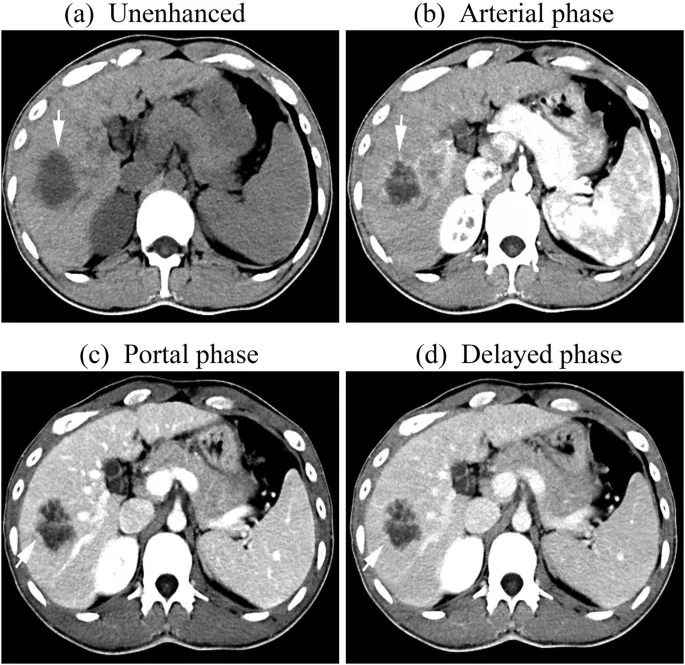

  • ⭐ > The portal venous phase (60-90s) is crucial for most routine abdominal CTs, offering optimal solid organ and venous structure enhancement.

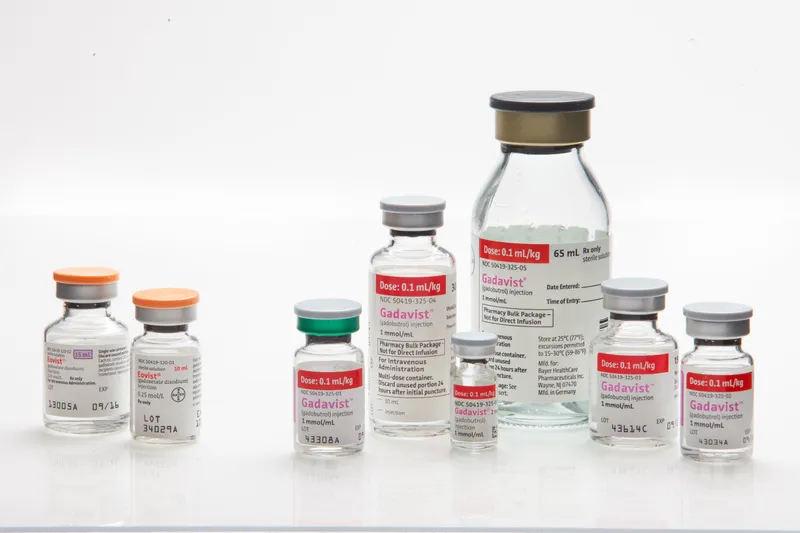

Gadolinium-Based Contrast Agents (GBCA) - MRI Magnet Magic

  • Paramagnetic; shorten $T_1$ relaxation, ↑ signal on $T_1$-weighted images.
  • Types & Stability:
    • Macrocyclic (more stable, preferred): Gadobutrol, Gadoteridol, Gadoterate.
    • Linear (less stable, higher NSF risk with some): Gadodiamide, Gadoversetamide.
  • Admin: IV. Excretion: Renal.
  • ⚠️ Nephrogenic Systemic Fibrosis (NSF):
    • Risk with GBCAs in severe renal dysfunction (eGFR < 30 mL/min/1.73m²).
    • Especially older, less stable linear agents. Screen eGFR.
  • Gadolinium Deposition: Brain (dentate nucleus, globus pallidus), bone, skin; long-term effects studied.
  • Precautions: Pregnancy (crosses placenta, use if essential), prior allergic reaction.

⭐ For patients with eGFR < 30 mL/min/1.73m², if GBCA is unavoidable, use lowest dose of a macrocyclic agent and consider prompt dialysis post-MRI in dialysis patients.

Loading diagram…

Adverse Reactions & Special Considerations - Contrast Safety Net

  • Reaction Types & Management:
    • Mild: Nausea, urticaria. Tx: Observation, antihistamines.
    • Moderate: Bronchospasm, vasovagal. Tx: O2, antihistamines, bronchodilators.
    • Severe: Anaphylaxis, arrest. Tx: Epinephrine, ABCs.
  • Key Risk Factors: Prior reaction, asthma, eGFR < 30 mL/min/1.73m², metformin.
  • Premedication (High-Risk): Corticosteroids (e.g., Prednisolone 50mg PO 13h, 7h, 1h prior) + Antihistamine (e.g., Diphenhydramine 50mg 1h prior).
  • Contrast-Induced Nephropathy (CIN):
    • Risk ↑ if eGFR < 30 mL/min/1.73m².
    • Prevention: Hydration, LOCM/IOCM.

    ⭐ CIN: Serum creatinine ↑ by > 25% or > 0.5 mg/dL from baseline (48-72h).

  • Special Cases:
    • Pregnancy: Iodinated if essential; Gadolinium avoided.
    • Lactation: Iodinated - consider stopping feeds 12-24h.
    • Metformin: Hold; resume 48h post if renal function OK.
  • Emergency Cart: Essential & readily available.
Loading diagram…
Loading diagram…

High‑Yield Points - ⚡ Biggest Takeaways

  • Pre-medicate for prior severe allergic reactions to contrast.
  • Check eGFR before iodinated contrast; <30 mL/min/1.73m² is high risk for CIN.
  • Hold Metformin for 48h post-contrast if eGFR <60 mL/min/1.73m² or in AKI.
  • Adequate hydration (oral/IV) is crucial, especially for at-risk patients.
  • Use non-ionic low-osmolar or iso-osmolar contrast media (LOCM/IOCM).
  • Manage extravasation with elevation, cold compresses, and observation.
  • Iodinated contrast is safe during lactation; gadolinium has minimal breast milk excretion.

Unlock the full lesson and continue reading

Signup to continue reading this lesson and unlimited access questions, flashcards, AI notes, and more

Scan to download app

Scan to download
UNLOCK FREE ACCESS

Practice Questions: Contrast Administration Protocols

  1. 1. Which agent is preferred among the following for contrast-enhanced CT in a patient with renal dysfunction?

    • A. Iodixanol
    • B. Gadodiamide
    • C. Diatrizoate
    • D. Iothalamate
    Show answer

    Answer: A. Iodixanol

    Iodixanol is iso-osmolar iodinated contrast and is preferred here over the listed high-osmolar iodinated agents; low-osmolar iodinated agents, not listed, are also acceptable. Diatrizoate is a high-osmolar ionic iodinated agent with greater renal risk. Gadodiamide is a gadolinium-based MRI agent, not a substitute for iodinated CT contrast solely to prevent kidney injury, and is associated with nephrogenic systemic fibrosis in severe renal dysfunction. Iothalamate is a high-osmolar ionic iodinated agent with greater renal risk.

  2. 2. A 9-year-old female child presents with history of headache and visual disturbances. X-Ray skull is shown below. What is the most likely diagnosis?

    • A. Histiocytosis- X
    • B. Pituitary macroadenoma
    • C. Craniopharyngioma
    • D. Hypothalamic hamartoma
    Show answer

    Answer: C. Craniopharyngioma

    Craniopharyngioma - Intracranial calcifications are a characteristic feature of childhood craniopharyngioma, reported in most cases, and support this diagnosis on skull radiography. - A suprasellar craniopharyngioma can compress the optic chiasm and cause hydrocephalus, explaining the child’s visual disturbances and headache. Histiocytosis- X - Langerhans cell histiocytosis typically produces punched-out, lytic “geographic skull” lesions rather than the described intracranial calcifications. - Although it may involve the hypothalamic-pituitary axis and cause diabetes insipidus, bone destruction would be the dominant radiographic finding, not calcification. Pituitary macroadenoma - Pituitary macroadenoma may cause visual disturbance, but it is uncommon at this age and usually lacks the coarse suprasellar calcification demonstrated here. Hypothalamic hamartoma - Hypothalamic hamartomas are non-neoplastic lesions that typically present with gelastic seizures or precocious puberty rather than prominent skull calcifications. - Although they may cause endocrine abnormalities, the combination of visual symptoms, headache, and intracranial calcification is more characteristic of craniopharyngioma.

  3. 3. Which agent is used to reverse opioid overdose?

    • A. Atropine
    • B. Naloxone
    • C. Flumazenil
    • D. Protamine
    Show answer

    Answer: B. Naloxone

    Naloxone - Naloxone is a competitive opioid receptor antagonist that displaces opioid agonists from their receptors during overdose. - By reversing opioid effects, it rapidly improves respiratory depression and can restore consciousness in affected individuals. Atropine - Atropine is an anticholinergic agent used for bradycardia, organophosphate poisoning, and pre-anaesthetic purposes, not opioid toxicity. - It has no direct action on opioid receptors, so it cannot reverse opioid-induced respiratory depression or loss of consciousness. Flumazenil - Flumazenil is a benzodiazepine receptor antagonist used to reverse benzodiazepine-induced sedation, not opioid toxicity. - Although it reverses another class of CNS depressants, it has no activity at opioid receptors and is not indicated for opioid overdose. Protamine - Protamine is a heparin antagonist used to neutralize the anticoagulant effects of heparin by forming a stable complex. - It is unrelated to opioid receptors and therefore cannot reverse opioid-induced respiratory depression or altered consciousness.

  4. 4. Which of the following is a nonionic dye used in medical imaging?

    • A. Iothalamate
    • B. Iohexol
    • C. Ioxaglate
    • D. Diatrizoate
    Show answer

    Answer: B. Iohexol

    Iohexol - Iohexol is a widely used nonionic, low-osmolality contrast medium for various medical imaging procedures. - Its nonionic structure and reduced osmolality generally produce a lower incidence of adverse reactions than ionic contrast agents. Ioxaglate - Ioxaglate is an ionic dimer and monoacidic dimer, so it remains fundamentally ionic despite having lower osmolality than traditional ionic monomers. - Its relatively improved safety profile reflects lower osmolality, not nonionic structure; iohexol is the true nonionic contrast medium listed. Diatrizoate - Diatrizoate is an ionic high-osmolality iodinated contrast medium, so it does not satisfy the requested nonionic classification. Iothalamate - Iothalamate is an ionic, high-osmolality contrast medium, unlike the nonionic agent requested in the question. - Its high osmolality is associated with a higher risk of adverse events, including anaphylactoid reactions and nephrotoxicity.

  5. 5. A patient presents to the emergency department after receiving a penicillin injection and is diagnosed with anaphylactic shock. Which of the following is the most critical life-saving measure for immediate treatment?

    • A. Intravenous adrenaline hydrochloride
    • B. Intravenous hydrocortisone hemisuccinate
    • C. Intramuscular adrenaline hydrochloride
    • D. Intravenous glucose saline
    Show answer

    Answer: C. Intramuscular adrenaline hydrochloride

    Intramuscular adrenaline hydrochloride is the immediate first-line treatment for anaphylaxis; injection into the anterolateral thigh provides rapid absorption, with alpha-1-mediated vasoconstriction and beta-2-mediated bronchodilation. Intravenous adrenaline hydrochloride is used as a carefully titrated, monitored infusion for anaphylaxis refractory to intramuscular adrenaline and fluid resuscitation; in cardiac arrest, intravenous or intraosseous adrenaline is given according to the resuscitation algorithm without preceding intramuscular doses. Intravenous hydrocortisone hemisuccinate has a delayed onset and cannot promptly reverse shock or airway obstruction; it must not delay adrenaline. Intravenous glucose saline is not the preferred resuscitation fluid; isotonic crystalloid, such as 0.9% sodium chloride, is used as an adjunct for hypotension and does not replace adrenaline.

  6. 6. Which element produces enhancement in routine intravenous CT contrast agents?

    • A. Iodine
    • B. Gadolinium
    • C. Iron
    • D. Barium
    Show answer

    Answer: A. Iodine

    Iodine - Iodine-based contrast agents enhance CT visualization because iodine has a high atomic number and strongly absorbs X-rays. - CT enhancement is proportional to the concentration of iodine within tissues or blood, improving visualization of vessels, organs, and lesions. Barium: Barium sulfate is used for enteric contrast, not routine intravenous CT enhancement Iron: Iron oxide particles have MRI applications but are not routine intravenous CT contrast agents Gadolinium - Gadolinium-based contrast agents are predominantly used in MRI rather than CT, so they do not explain routine CT contrast enhancement. - Gadolinium improves MRI signal by altering the magnetic properties of water molecules, whereas CT enhancement depends on X-ray attenuation by iodine.

  7. 7. A patient with known chronic kidney disease is scheduled for an MRI and is to receive gadodiamide. Which of the following investigations must be performed before administering this agent to assess renal function and guide safe use?

    • A. Serum electrolytes
    • B. Serum complement C3
    • C. Serum creatinine
    • D. Urine specific gravity
    Show answer

    Answer: C. Serum creatinine

    Serum creatinine - Gadodiamide is a gadolinium-based contrast agent primarily excreted by the kidneys; renal function must therefore be assessed before administration. - Serum creatinine permits calculation of eGFR, helping identify severe renal impairment and reduce the risk of nephrogenic systemic fibrosis. Urine specific gravity - Urine specific gravity reflects urine concentration and the kidney’s ability to conserve water, but it does not directly quantify the renal clearance needed for safe gadolinium administration. - Serum creatinine is used to calculate eGFR, which more directly assesses renal function and helps identify severe impairment associated with nephrogenic systemic fibrosis risk. Serum electrolytes - Serum electrolytes assess fluid balance and metabolic abnormalities, which may accompany kidney disease but do not directly measure renal filtration or gadolinium clearance. - The relevant pre-contrast assessment is serum creatinine with eGFR, because severe renal impairment increases the risk of nephrogenic systemic fibrosis. Serum complement C3 - Serum complement C3 levels evaluate complement activation and may support assessment of immune-mediated diseases such as lupus nephritis or glomerulonephritis. - They do not assess renal clearance of gadolinium, so they cannot guide contrast safety or identify the renal impairment associated with nephrogenic systemic fibrosis.

  8. 8. What does the following radiograph from a double contrast esophagram represent?

    • A. Esophageal atresia
    • B. Tracheoesophageal fistula
    • C. Esophageal stenosis
    • D. Feline esophagus
    Show answer

    Answer: D. Feline esophagus

    Feline esophagus - Feline esophagus shows prominent transverse mucosal striations or rings, producing a characteristic ringed or corrugated appearance. - These fine transverse folds reflect transient contraction of the muscularis mucosae and are often associated with gastroesophageal reflux; they should be distinguished from the fixed rings of eosinophilic esophagitis. Esophageal atresia - Esophageal atresia is a congenital blind-ending esophagus, preventing contrast from passing normally into the stomach. - The described study shows a patent esophageal lumen with contrast passage rather than an abrupt blind pouch, making atresia unlikely. Tracheoesophageal fistula - A tracheoesophageal fistula is an abnormal connection between the esophagus and trachea that may allow contrast to enter the airway. - No contrast aspiration into the trachea or lungs is described, so a fistula does not explain the radiographic pattern. Esophageal stenosis - Esophageal stenosis produces a focal, sustained narrowing of the lumen on contrast examination. - The described finding is a series of transverse mucosal rings, rather than a single constricted segment characteristic of stenosis.

  9. 9. Which investigation and duct abnormality are shown?

    • A. Common bile duct dilatation on PTC
    • B. Cystic duct dilatation on ERCP
    • C. Pancreatic duct dilatation on ERCP
    • D. Common bile duct dilation on ERCP
    Show answer

    Answer: D. Common bile duct dilation on ERCP

    Common bile duct dilation on ERCP - The study demonstrates common bile duct dilatation, with contrast filling the duct and intrahepatic branches, consistent with biliary obstruction. - The retrograde catheter approach through the duodenal papilla identifies ERCP, which provides diagnostic visualization and can also permit therapeutic procedures such as stone extraction or stenting. Cystic duct dilatation on ERCP - The cystic duct connects the gallbladder to the common hepatic duct and is not the main duct shown as dilated in this cholangiographic study. - Primary cystic duct obstruction more typically produces gallbladder-related disease such as cholecystitis, rather than the broader biliary obstruction pattern described. Pancreatic duct dilatation on ERCP - Pancreatic duct dilatation on ERCP is not demonstrated; the opacified branching ducts communicate with the liver and therefore represent the biliary tree rather than the pancreatic duct. Common bile duct dilatation on PTC - PTC accesses the biliary tree percutaneously through the liver and opacifies the ducts from above, unlike the retrograde access pattern described. - The demonstrated distal duct cannulation is characteristic of ERCP, so common bile duct dilatation on PTC does not fit the modality shown.

  10. 10. Serial urinary-tract radiographs show a nephrogram followed by opacification of the collecting systems and ureters. Which technique was used?

    • A. Intravenous urography
    • B. Antegrade pyelography
    • C. Retrograde pyelography
    • D. Plain abdominal radiography
    Show answer

    Answer: A. Intravenous urography

    Intravenous urography - Iodinated contrast is administered intravenously, allowing the kidneys to filter and excrete it through the urinary tract. - Timed radiographs sequentially demonstrate contrast in the renal collecting systems, ureters, and urinary bladder. Retrograde pyelography - Cystoscopy and ureteric catheterization are characteristic of retrograde pyelography, not intravenous urography. - In IVU, contrast reaches the collecting systems through renal excretion rather than direct retrograde injection. Antegrade pyelography - Percutaneous renal puncture with antegrade contrast injection describes antegrade pyelography, not IVU. - IVU uses venous access and depends on the kidneys to excrete contrast into the urinary tract. Plain abdominal radiography - A plain abdominal radiograph does not involve contrast administration and therefore cannot directly opacify the urinary tract. - IVU requires iodinated contrast and sequential imaging to show the collecting systems, ureters, and bladder.

Flashcards: Contrast Administration Protocols

  1. 1. Contrast used in CT is

    Show answer

    Iodine

  2. 2. In suspected perforation, contrast with water-soluble medium preferred

    Show answer

    single (double/single)

  3. 3. The contrast agent used for MRI is .

    Show answer

    Gadolinium

  4. 4. What is the contrast medium used for the diagnosis of perforative peritonitis?

    Show answer

    Gastrograffin/Iohexol

  5. 5. What is the contrast medium used for the diagnosis of tracheoesophageal fistula?

    Show answer

    Non-ionic water-soluble contrast (e.g., Iohexol) or Dionosil

  6. 6. Early phase CT demonstrates a well-developed peripheral arterialization, in the case of hepatic adenoma

    Show answer

    Arterial

  7. 7. In contrast studies, thick barium coats lumen, and effervescent tablets ingested to distend lumen with air.

    Show answer

    double (single/double)

  8. 8. _____ helps in increasing the diagnostic capability of MRCP.

    Show answer

    Secretin

  9. 9. In _____ view the patient lies in such a way that the sagittal plane of the skull is parallel to the film and the X-ray beam is projected _____ cephalocaudal

    Show answer

    Laws · 15

  10. 10. _____ provides best visualisation of _____ biliary tract

    Show answer

    ERCP · distal
