Cardiomyopathies

On this page

Cardiomyopathies: Intro & Types - Heart's Structural Woes

Myocardial diseases with structural/functional abnormalities, not explained by CAD, HTN, valvular, or congenital heart disease (WHO/ESC criteria).

  • Primary: Predominantly confined to heart muscle.
  • Secondary: Myocardial involvement as part of systemic disease.

Main Morpho-functional Types:

  • Dilated Cardiomyopathy (DCM): LV/RV dilation & systolic dysfunction.
  • Hypertrophic Cardiomyopathy (HCM): Unexplained LV hypertrophy.
  • Restrictive Cardiomyopathy (RCM): Impaired ventricular filling, diastolic dysfunction.
  • Arrhythmogenic Right Ventricular Dysplasia/Cardiomyopathy (ARVD/C): Fibrofatty replacement of RV myocardium.
  • Unclassified: e.g., Takotsubo cardiomyopathy, Left Ventricular Non-compaction (LVNC).

⭐ Cardiomyopathies are diseases of the myocardium associated with cardiac dysfunction, leading to impaired heart performance and often heart failure or arrhythmias.

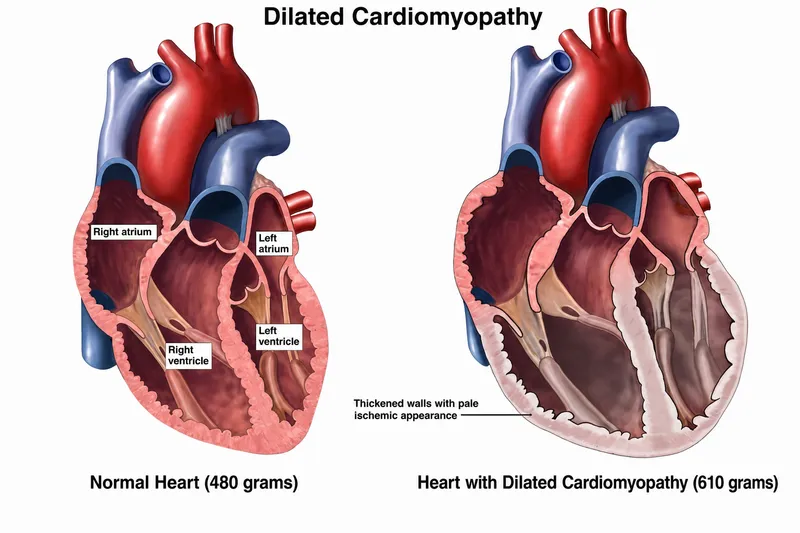

Dilated Cardiomyopathy: Big Baggy Chambers

  • Pathophysiology: Systolic dysfunction with impaired contractility, ↓ ejection fraction (EF).
  • Etiology: Primarily idiopathic; also alcohol, viral (Coxsackie B), genetic, peripartum.
    • 📌 Mnemonic (ABCCCD): Alcohol, Beri-beri, Coxsackie B, Cocaine, Chagas, Doxorubicin.
  • Key Findings:
    • CXR: Cardiomegaly (classic 'water bottle' sign), pulmonary venous hypertension, pleural effusion.

    • Echocardiography: Hallmark: LV dilation, global hypokinesia, ↓EF < 45%; often functional MR/TR.

    • Cardiac MRI: Assesses LV dilation & dysfunction; LGE (mid-myocardial linear or absent) helps differentiate etiology.

⭐ Dilated cardiomyopathy is the most common type of cardiomyopathy and a leading indication for heart transplantation.

Hypertrophic Cardiomyopathy: Thickened Heart Walls

  • Etiology: Autosomal dominant genetic disorder (sarcomeric protein mutations, e.g., MYH7, MYBPC3).
  • Pathophysiology:
    • Diastolic dysfunction (impaired LV relaxation/filling).
    • Dynamic LV Outflow Tract Obstruction (LVOTO) due to:
      • Asymmetric Septal Hypertrophy (ASH): Septum > free wall.
      • Systolic Anterior Motion (SAM) of mitral valve.
  • Imaging:
    • CXR: Often normal; may show LA enlargement, LVH signs.

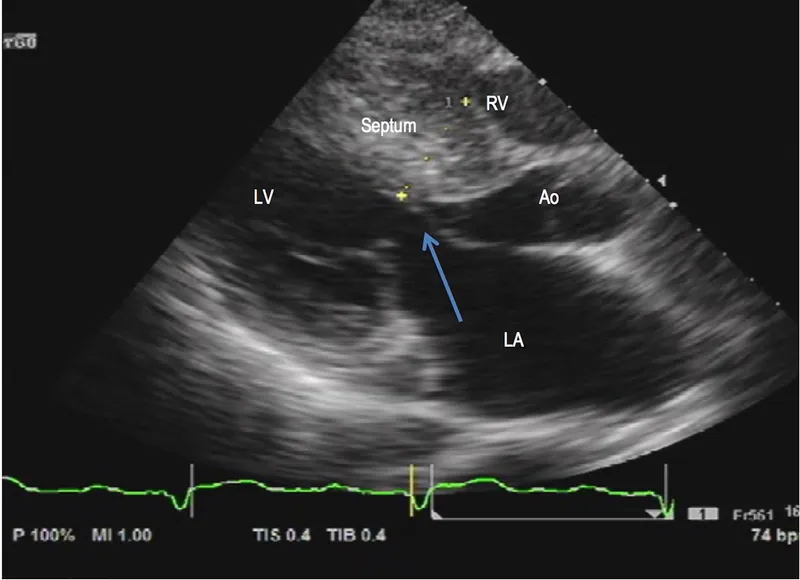

    • Echocardiography: LVH ≥15mm (in absence of other cause); ≥13mm in relatives. Shows ASH, SAM, LVOTO gradient, diastolic dysfunction.
    • Cardiac MRI: Gold standard for morphology, hypertrophy distribution, fibrosis (Late Gadolinium Enhancement - LGE at RV insertion points), crypts.
Loading diagram…

⭐ Hypertrophic cardiomyopathy is the most common genetic cardiovascular disease and a leading cause of sudden cardiac death in young athletes.

Restrictive & ARVC: Stiff Walls & Fatty Scars

  • Restrictive Cardiomyopathy (RCM): Stiff Ventricles
    • Causes: 📌 ASHES To ASHES (Amyloid, Sarcoid, Hemochromatosis, Endomyocardial fibrosis, Scleroderma), idiopathic.
    • Patho: Stiff ventricles, impaired diastolic filling, preserved EF (early).
    • Echo: Biatrial enlargement, normal/small LV, thick walls (infiltrative), diastolic dysfunction; 'sparkling' (amyloid).
    • MRI: LGE (amyloid: diffuse subendocardial/transmural; sarcoid: patchy).
  • Arrhythmogenic RV Cardiomyopathy/Dysplasia (ARVC/D): Fatty Scars
    • Cause: Genetic (desmosomal proteins).
    • Patho: RV fibrofatty replacement.
    • MRI (key): RV dilation, akinesia/dyskinesia, wall thinning, fatty infiltration, RV LGE.

⭐ ARVC/D classically involves the 'triangle of dysplasia' in the right ventricle (RV inflow, RV outflow, and RV apex).

High‑Yield Points - ⚡ Biggest Takeaways

  • HCM: Asymmetric septal hypertrophy (ASH), LVOTO, SAM. Apical HCM: "ace-of-spades".
  • DCM: Global LV dilatation, systolic dysfunction, ↓EF.
  • RCM: Impaired diastolic filling, biatrial enlargement. Amyloidosis: diffuse LGE.
  • ARVD/C: Fibrofatty replacement of RV, RV dilatation/aneurysms.
  • LVNC: Prominent trabeculations, NC/C ratio >2.3:1.
  • Takotsubo: Apical ballooning, transient dysfunction, normal coronaries.
  • Cardiac MRI LGE: Differentiates types (e.g., mid-myocardial in HCM, diffuse in amyloid).

Unlock the full lesson and continue reading

Signup to continue reading this lesson and unlimited access questions, flashcards, AI notes, and more

Scan to download app

Scan to download
UNLOCK FREE ACCESS

Practice Questions: Cardiomyopathies

  1. 1. A boy with Duchenne muscular dystrophy develops dilated cardiomyopathy. Which defective protein accounts for his cardiac disease?

    • A. Tropomyosin
    • B. Myosin
    • C. Troponin
    • D. Dystrophin
    Show answer

    Answer: D. Dystrophin

    Dystrophin deficiency in Duchenne muscular dystrophy destabilises the sarcolemma and can cause dilated cardiomyopathy. Tropomyosin mutations can cause cardiomyopathy, but tropomyosin is not the protein deficient in Duchenne muscular dystrophy. Myosin mutations can cause both hypertrophic and dilated cardiomyopathy, but do not cause Duchenne muscular dystrophy. Troponin mutations can also cause dilated cardiomyopathy, but troponin is not the defective protein in Duchenne muscular dystrophy.

  2. 2. A 30-year-old man presents with dyspnoea. The sectioned heart is shown. What is the most likely diagnosis?

    • A. Cardiac tuberculosis
    • B. Cardiac fungal granuloma
    • C. Rheumatic heart disease
    • D. Cardiac sarcoidosis
    Show answer

    Answer: C. Rheumatic heart disease

    Rheumatic heart disease is supported by the markedly thickened, fibrotic mitral leaflets and narrowed valve orifice visible in the specimen, consistent with chronic rheumatic mitral stenosis. Sarcoidosis primarily causes myocardial granulomatous disease rather than this characteristic valve deformity. Tuberculosis more commonly affects the pericardium and does not characteristically produce this mitral morphology. Cardiac fungal granuloma produces a focal inflammatory lesion rather than the diffuse fibrotic mitral deformity shown.

  3. 3. Which of the following is NOT a cause of restrictive cardiomyopathy (RCM)?

    • A. Amyloidosis
    • B. Carcinoid syndrome
    • C. Fatty infiltration
    • D. Sarcoidosis
    Show answer

    Answer: C. Fatty infiltration

    Fatty infiltration - Fatty myocardial infiltration is typically associated with arrhythmogenic right ventricular cardiomyopathy, not restrictive cardiomyopathy. - Restrictive cardiomyopathy primarily results from stiff, non-compliant ventricular walls that impair diastolic filling; fatty replacement is not the defining mechanism. Amyloidosis - Amyloidosis is a recognized cause of restrictive cardiomyopathy because insoluble amyloid fibrils deposit in the myocardial interstitium. - These deposits increase myocardial stiffness, producing impaired ventricular relaxation and diastolic filling rather than the option being unrelated to restrictive physiology. Carcinoid syndrome - Carcinoid heart disease can produce restrictive physiology through fibrous plaque deposition on the right-sided endocardium and valves. - The resulting endocardial fibrosis interferes with ventricular filling and function, so carcinoid syndrome is a recognized cause rather than the exception. Sarcoidosis - Cardiac sarcoidosis may cause restrictive cardiomyopathy through myocardial infiltration by non-caseating granulomas. - Granulomatous inflammation can lead to fibrosis and ventricular wall thickening, restricting ventricular filling and supporting its inclusion as a cause.

  4. 4. Which type of cardiomyopathy is associated with alcohol abuse?

    • A. Restrictive cardiomyopathy
    • B. Dilated cardiomyopathy
    • C. Hypertrophic cardiomyopathy
    • D. Arrhythmogenic right ventricular cardiomyopathy
    Show answer

    Answer: B. Dilated cardiomyopathy

    Dilated cardiomyopathy is the characteristic cardiomyopathy caused by chronic heavy alcohol consumption, producing ventricular dilation and systolic dysfunction. Restrictive cardiomyopathy causes impaired ventricular filling and is classically associated with infiltrative or fibrotic disorders rather than alcohol. Hypertrophic cardiomyopathy is usually an inherited disorder characterized by otherwise unexplained myocardial hypertrophy. Arrhythmogenic right ventricular cardiomyopathy is characterized by fibrofatty myocardial replacement and is not the characteristic alcohol-associated cardiomyopathy. Reference: - Title: Harrison's Principles of Internal Medicine - Edition: 21st - Section: Cardiomyopathies — alcohol-induced disease

  5. 5. Which finding is NOT characteristic of restrictive cardiomyopathy?

    • A. Preserved early systolic function
    • B. Possible ventricular wall thickening
    • C. Predominantly right-sided heart failure
    • D. Decreased ventricular filling pressure
    Show answer

    Answer: D. Decreased ventricular filling pressure

    Decreased ventricular filling pressure is the exception because stiff ventricles produce elevated filling pressures. Possible ventricular wall thickening is compatible with infiltrative causes such as amyloidosis, although it is not universal. Predominantly right-sided heart failure is a recognised presentation with systemic venous congestion. Preserved early systolic function is typical because the principal early abnormality is impaired diastolic filling.

  6. 6. A 30-year-old male football player dies suddenly during a match. Myocardial histology obtained at autopsy is shown. What is the most likely underlying diagnosis?

    • A. Restrictive cardiomyopathy
    • B. Hypertrophic cardiomyopathy
    • C. Dilated cardiomyopathy
    • D. Arrhythmogenic cardiomyopathy
    Show answer

    Answer: B. Hypertrophic cardiomyopathy

    Hypertrophic cardiomyopathy is supported by the hypertrophied myocytes, enlarged nuclei, myocyte disarray, and interstitial fibrosis shown; it can cause sudden arrhythmic death in young athletes. These histological findings do not establish whether left ventricular outflow obstruction is present. Restrictive cardiomyopathy is characterized by impaired ventricular filling and may show an infiltrative or fibrotic substrate rather than this characteristic disarray. Dilated cardiomyopathy is defined by ventricular dilation and systolic dysfunction, with less specific histological changes. Arrhythmogenic cardiomyopathy characteristically shows fibrous or fibrofatty myocardial replacement rather than the displayed hypertrophic disarray.

  7. 7. All of the following are characteristic findings in Shigella-associated hemolytic uremic syndrome EXCEPT:

    • A. Acute hepatic failure
    • B. Peripheral blood leucocytosis
    • C. Thrombotic microangiopathy
    • D. Neurological abnormalities
    Show answer

    Answer: A. Acute hepatic failure

    Acute hepatic failure - Acute hepatic failure is not a characteristic manifestation of Shigella-associated HUS, which primarily produces renal, hematologic, and sometimes neurological complications. - The expected organ injury is acute kidney injury from microvascular thrombosis; acute hepatic failure is therefore the false statement. Neurological abnormalities - Neurological abnormalities can occur in HUS, including seizures, altered mental status, and strokes, due to cerebral microthrombosis and endothelial injury. - These findings reflect ischemic organ damage from the systemic thrombotic microangiopathy and therefore are recognized complications rather than the false statement. Thrombotic microangiopathy - Thrombotic microangiopathy is the underlying pathological process in HUS, involving endothelial damage and microvascular thrombosis. - These microthrombi cause thrombocytopenia, microangiopathic hemolytic anemia, and ischemic injury, particularly affecting the kidneys. Peripheral blood leucocytosis - Peripheral blood leucocytosis is a common finding in Shigella dysentery and reflects the inflammatory response to gastrointestinal infection. - An elevated white-cell count may also suggest more severe infection and increased risk of HUS development, so it is not the false statement.

  8. 8. Which finding on echocardiography suggests 'constrictive pericarditis'?

    • A. Pericardial thickening and septal bounce
    • B. Increased wall thickness
    • C. Global hypokinesis
    • D. Pericardial effusion
    Show answer

    Answer: A. Pericardial thickening and septal bounce

    Pericardial thickening and septal bounce - Pericardial thickening indicates a fibrotic, inflamed pericardium, while septal bounce reflects abnormal interventricular septal motion with respiration. - Septal bounce demonstrates exaggerated ventricular interdependence, a characteristic echocardiographic consequence of impaired diastolic filling in constrictive pericarditis. Pericardial effusion - Pericardial effusion is fluid surrounding the heart and may cause cardiac tamponade when severe, rather than directly demonstrating constriction. - Effusions can precede or coexist with constrictive pericarditis, but they are not the hallmark finding of a rigid, thickened pericardium. Global hypokinesis - Global hypokinesis denotes reduced overall myocardial contractility, a finding more typical of dilated cardiomyopathy or significant ischemic heart disease. - This represents primarily systolic dysfunction, whereas constrictive pericarditis primarily restricts diastolic filling through a rigid pericardium. Increased wall thickness - Increased wall thickness reflects thickening of the myocardium and is more characteristic of hypertrophic cardiomyopathy or hypertensive heart disease. - Although myocardial thickening can impair diastolic function, it does not indicate the primary pericardial pathology of constrictive pericarditis.

  9. 9. Radiological features of left ventricular heart failure are all, except -

    • A. Kerley B lines
    • B. Cardiomegaly
    • C. Increased flow in upper lobe veins
    • D. Oligemic lung fields
    Show answer

    Answer: D. Oligemic lung fields

    Oligemic lung fields - Oligemic lung fields are characteristic of conditions like severe pulmonary hypertension or pulmonary embolism post-embolus, leading to reduced blood flow to the lungs, not left ventricular heart failure. - In left ventricular heart failure, the primary issue is pulmonary venous congestion and edema, leading to increased, not decreased, pulmonary vascular markings. Kerley B lines - Kerley B lines are often seen in left ventricular heart failure, indicating interstitial pulmonary edema. - They represent thickened, edematous interlobular septa due to increased hydrostatic pressure in the pulmonary capillaries. Cardiomegaly - Cardiomegaly (enlarged heart) on chest X-ray is a common finding in left ventricular heart failure, reflecting ventricular dilation and/or hypertrophy due to chronic increased workload. - This enlargement is often due to the heart's compensatory mechanisms attempting to maintain cardiac output. Increased flow in upper lobe veins - Increased flow in upper lobe veins (cephalization of pulmonary vessels) is an early sign of pulmonary venous hypertension in left ventricular heart failure. - Due to elevated left atrial pressure, blood is preferentially shunted to the less gravitationally dependent upper lobes.

  10. 10. An adult with chest pain undergoes CT angiography showing a 5.2-cm fusiform ascending aorta with an intact wall and no intimal flap or intramural hematoma. What is the diagnosis?

    • A. Ascending aortic aneurysm
    • B. Ascending aortic ectasia
    • C. Ascending aortic dissection
    • D. Aortic intramural hematoma
    Show answer

    Answer: A. Ascending aortic aneurysm

    Ascending aortic aneurysm is correct because a 5.2-cm ascending aorta is aneurysmal in an adult. Ascending aortic ectasia denotes lesser enlargement and does not appropriately classify this diameter. Ascending aortic dissection is unsupported because no intimal flap is present and the wall is intact. Aortic intramural hematoma is excluded by the absence of mural hematoma.

Flashcards: Cardiomyopathies

  1. 1. What is the investigation of choice for pericardial effusion?

    Show answer

    Echocardiography

  2. 2. What scoring method is performed using Cardiac CT to evaluate Coronary Artery Disease (CAD)?

    Show answer

    Coronary Calcium Scoring (Agatston score)

  3. 3. The X-ray shows sign which is suggestive of anomalous pulmonary venous return.

    Show answer

    Scimitar; partial

  4. 4. _____ appearance is seen with _____

    Show answer

    Egg in a Cup · Constrictive pericarditis

  5. 5. _____ on fluoroscopy is due to vigorous _____ pulsations which are seen in _____.

    Show answer

    Hilar dance · pulmonary artery · ASD

  6. 6. What is the investigation of choice to assess the thickness of the pericardium?

    Show answer

    CT scan (computed tomography)

  7. 7. _____ is a congenital heart disease characterized by a single large vessel arising from both ventricles before eventually splitting X-ray shows: _____ appearance

    Show answer

    Persistent truncus arteriosus · "sitting duck heart"

  8. 8. The x-ray given in the question shows the _____ sign suggestive of LA enlargement

    Show answer

    double-density

  9. 9. The X-ray shows _____ sign which is suggestive of _____ anomalous pulmonary venous return.

    Show answer

    Scimitar · partial

  10. 10. The given Doppler waveform is _____phasic, which is seen in severe stenosis of the artery:

    Show answer

    mono
