Computer-Aided Detection and Diagnosis - Spotting the Dots

  • CAD (Computer-Aided Detection/Diagnosis): AI tools assisting radiologists in image interpretation.
    • CADe (Detection): "Spots the dots." Identifies and marks suspicious regions of interest (ROIs).
      • Primary Goals: Improve sensitivity, reduce missed findings, act as a second reader.
    • CADx (Diagnosis): "Interprets the dots." Assesses the nature or likelihood of disease in identified ROIs.
      • Primary Goals: Enhance specificity, aid characterization, provide decision support.
  • Key Differences:
    • CADe: Focuses on detection (Is something there?). Output: Location of potential findings.
    • CADx: Focuses on diagnosis (What is it? How likely is disease?). Output: Assessment of findings.
  • Brief History: Concepts emerged in the 1980s; early applications focused on mammography.

⭐ CADe systems primarily mark suspicious regions of interest (ROIs) for radiologists, while CADx systems provide an assessment of the nature or likelihood of disease.

Computer-Aided Detection and Diagnosis - How CAD Thinks

  • Machine Learning (ML) vs. Deep Learning (DL):
    • ML: Algorithms learn from data; requires manual feature engineering.
    • DL: Subfield of ML; uses deep neural networks. Auto-learns features, excels in image analysis.
  • Core AI Engine: Convolutional Neural Networks (CNNs):
    • Image Preprocessing: Crucial first step (e.g., normalization, noise reduction).
    • CNN Architecture (📌 Convoys Pull Fast):

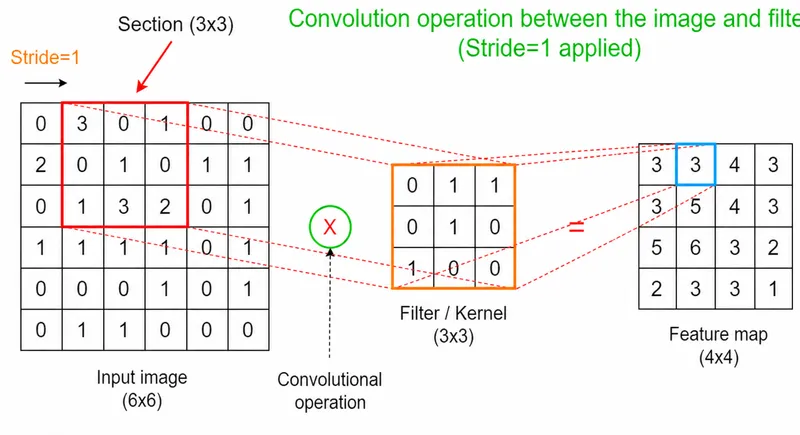

      • Convolutional Layers: Extract features (edges, textures).
      • Pooling Layers: Reduce dimensionality, retain key info.
      • Fully Connected Layers: Classify based on learned features.
    • Feature Extraction: CNNs automatically learn hierarchical features from images.
    • Classification/Detection: AI model outputs diagnosis or highlights suspicious areas.

⭐ Convolutional Neural Networks (CNNs) are the cornerstone of modern CAD, automatically learning relevant features from image data, unlike traditional ML requiring manual feature engineering.

Loading diagram…

architecture showing layers for medical image analysis)oka

Computer-Aided Detection and Diagnosis - Clinical Showcases

Computer-Aided Detection (CADe) and Diagnosis (CADx) systems are pivotal in enhancing diagnostic accuracy and efficiency across various imaging modalities. They act as a "second reader," highlighting suspicious areas for radiologists.

ModalityPrimary ApplicationKey Findings Detected / CAD Assistance
MammographyEarly breast cancer screening & detectionMicrocalcification clusters, masses; aids BI-RADS correlation
Chest X-ray/CTLung nodule, pneumonia & TB detectionLung nodules (e.g., LIDC-IDRI), consolidation, TB patterns
CT ColonographyPolyp detection for colorectal cancer screeningColonic polyps (detection, characterization, sizing)
FundoscopyAutomated diabetic retinopathy (DR) screeningMicroaneurysms, hemorrhages, exudates for DR grading
Neuroimaging (CT/MRI)Acute stroke detection & tumor analysisIschemic changes, hemorrhage, tumor segmentation & volumetry

⭐ CAD for lung nodule detection on CT is vital for early lung cancer screening, improving sensitivity and consistency in identifying subtle lesions.

Computer-Aided Detection and Diagnosis - Hurdles & Hopes

BenefitsLimitations
* ↑Sensitivity, ↑consistency, ↑efficiency* False positives & false negatives
* ↓Workload & reading time, acts as 2nd reader* Alert fatigue, 'black box' algorithms
* Data bias, poor generalizability
* Difficult integration, high implementation cost
-   Sensitivity = $TP / (TP + FN)$ (Recall)
-   Specificity = $TN / (TN + FP)$
-   Positive Predictive Value (PPV) = $TP / (TP + FP)$
-   Negative Predictive Value (NPV) = $TN / (TN + FN)$
-   Area Under ROC Curve (AUC-ROC), FROC, LROC
  • Regulatory Aspects: FDA/CE approval essential; Indian context: CDSCO guidelines evolving.
  • Future Trends: Explainable AI (XAI), federated learning for data privacy, multi-modal CAD systems.

⭐ The 'black box' problem, referring to the difficulty in understanding the decision-making process of complex AI models like deep neural networks, is a major concern for clinical trust and adoption of CADx systems.

High‑Yield Points - ⚡ Biggest Takeaways

  • CADe marks suspicious regions; CADx characterizes lesion nature (e.g., benign/malignant).
  • Key applications: mammography (calcifications, masses), chest imaging (nodules), colonoscopy (polyps).
  • Improves detection of subtle findings, acts as a second reader, reducing perceptual errors.
  • Deep learning (especially CNNs) significantly boosts CAD performance and accuracy.
  • Challenges: false positives (↑ workload), false negatives, automation bias, and generalizability.
  • Needs robust validation, regulatory clearance (FDA/CE), and careful clinical integration.
