Basic Hemodynamics - Flow's ABCs

  • Blood Flow (Q): Volume/time (L/min). $Q \propto \Delta P$, $Q \propto 1/R$.
  • Pressure Gradient ($\Delta P$): Pressure difference driving flow (High P → Low P).
  • Resistance (R): Opposition to flow.
  • Ohm's Law for Flow: $Q = \Delta P / R$.
    • ↑ $\Delta P$ or ↓ R → ↑ Q.
  • Poiseuille's Law for Resistance: $R = (8 \eta L) / (\pi r^4)$
    • $\eta$: Viscosity (↑ $\eta$ → ↑ R).
    • L: Vessel Length (↑ L → ↑ R).
    • r: Vessel Radius (most critical; $R \propto 1/r^4$).

⭐ Vessel radius ($r$) is paramount: halving $r$ increases resistance 16x and reduces flow 16x (if $\Delta P$ constant), due to the $r^4$ factor in Poiseuille's law.

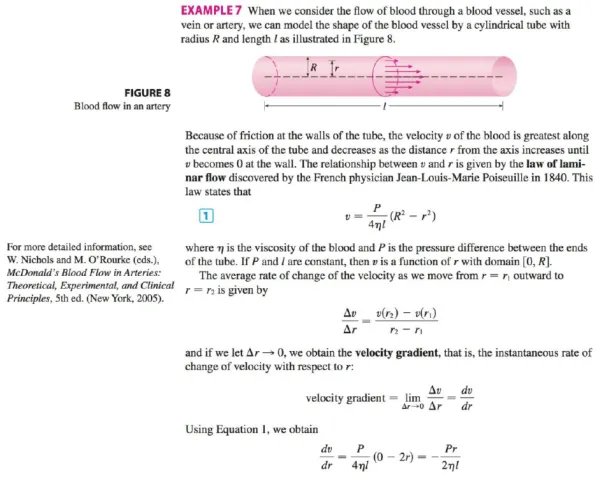

Vascular Resistance - Poiseuille's Power Play

  • Poiseuille's Law quantifies vascular resistance: $R = \frac{8 \eta L}{\pi r^4}$.
    • $R$: Resistance
    • $\eta$: Blood viscosity (e.g., polycythemia $\uparrow \eta \uparrow R$)
    • $L$: Vessel length (relatively constant)
    • $r$: Vessel radius (paramount factor)
  • Resistance dynamics:
    • Directly proportional to viscosity ($\eta$) and length ($L$).
    • Inversely proportional to radius to the fourth power ($r^4$).
      • 📌 $r^4$ Dominance: Small radius change $\rightarrow$ massive resistance change. E.g., halving radius $\uparrow$ resistance 16x.
  • Arterioles are the principal sites of systemic vascular resistance (SVR) regulation. ⭐ > Arterioles, through vasodilation and vasoconstriction, exert the most significant control over Total Peripheral Resistance (TPR), directly impacting blood pressure.

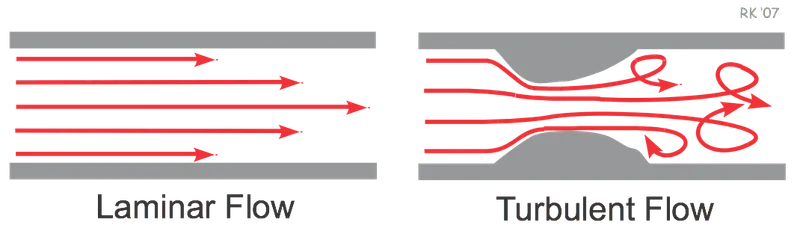

Blood Flow Patterns - Smooth or Shaky Show

  • Laminar Flow:
    • Smooth, silent, layered (parabolic velocity profile: fastest at center).
    • Normal physiological flow; energy efficient.
  • Turbulent Flow:
    • Disordered, noisy (e.g., murmurs, bruits).
    • Causes: High velocity (stenosis, high output states), ↓ blood viscosity (anemia), large vessel diameter, vessel branching.
    • Energy inefficient; ↑ endothelial stress.
  • Reynolds Number ($Re$):
    • Predicts flow pattern: $Re = \frac{\rho v D}{\eta}$ (where $\rho$=density, $v$=velocity, $D$=diameter, $\eta$=viscosity).
    • Laminar flow: $Re < \textbf{2000}$.
    • Turbulent flow: $Re > \textbf{3000}$.

⭐ Audible bruits often indicate turbulent flow, which can predispose to endothelial damage and atheroma formation, particularly at vessel bifurcations.

Vessel Dynamics & Control - Stretch, Squeeze, Survive

  • Vascular Properties:
    • Compliance ($C = \Delta V / \Delta P$): Ability to distend. Veins (high capacitance) > Arteries.
    • Elasticity: Ability to recoil. Arteries (maintain diastolic pressure) > Veins.
    • Stress-relaxation & Reverse stress-relaxation: Gradual adaptation to changes in blood volume/pressure.

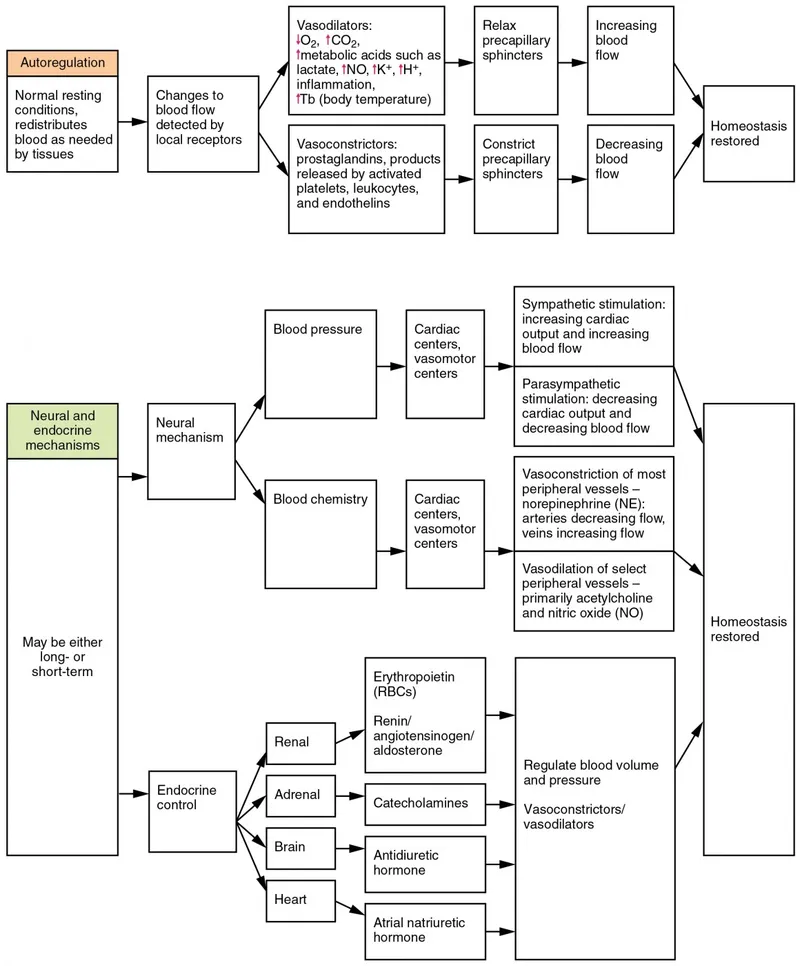

  • Blood Flow Regulation:
    • Local (Autoregulation):
      • Myogenic: Stretch (↑pressure) → Vascular Smooth Muscle (VSM) contraction (Bayliss effect).
      • Metabolic: Vasodilators (e.g., ↓O₂, ↑CO₂, ↑H⁺, ↑K⁺, adenosine).
      • Endothelial: Nitric Oxide (NO) (potent vasodilator); Endothelin-1 (potent vasoconstrictor).
    • Neural:
      • Sympathetic α₁ receptors: Vasoconstriction (most arterioles).
      • Sympathetic β₂ receptors: Vasodilation (skeletal muscle, coronary arteries).
    • Hormonal:
      • Vasoconstrictors: Angiotensin II, Vasopressin (ADH).
      • Vasodilators: Atrial Natriuretic Peptide (ANP), Bradykinin.
      • Adrenaline: Dual effect (α₁ constrict, β₂ dilate).

⭐ Flow-mediated vasodilation, primarily via Nitric Oxide (NO) release from endothelium in response to shear stress, is a critical physiological mechanism.

Loading diagram…

High‑Yield Points - ⚡ Biggest Takeaways

  • Poiseuille's Law: Resistance is dominated by vessel radius (to the 4th power); radius ↓ by half, resistance ↑ 16 times.
  • Ohm's Law for flow: Blood Flow equals Pressure Gradient divided by Resistance.
  • Velocity is slowest in capillaries (largest total cross-sectional area), aiding exchange.
  • Reynolds number predicts turbulent flow, which ↑ resistance and cardiac work.
  • Veins show high compliance (volume/pressure change), acting as blood reservoirs.
  • Mean Arterial Pressure (MAP approximately Diastolic + one-third Pulse Pressure) is key for tissue perfusion.

Unlock the full lesson and continue reading

Signup to continue reading this lesson and unlimited access questions, flashcards, AI notes, and more

Scan to download app

Scan to download
UNLOCK FREE ACCESS

Practice Questions: Hemodynamics and Blood Flow

  1. 1. Using the pressure–volume loop, what is the ejection fraction to one decimal place?

    • A. 55.0%
    • B. 50.0%
    • C. 61.5%
    • D. 40.0%
    Show answer

    Answer: C. 61.5%

    61.5% is the ejection fraction because the loop shows EDV 130 mL and ESV 50 mL. EF = (130 − 50)/130 × 100 = 61.538…%, rounded to one decimal place. 55.0% would require ESV 58.5 mL at the displayed EDV, which the loop does not show. 50.0% would require ESV 65 mL. 40.0% would require ESV 78 mL.

  2. 2. The recording of cardiac cycle is drawn below. Which of the following is correct about $X$ and $Y$ shown in the image?

    • A. $X=$ LV ejection time and $Y=$ Pre-ejection period
    • B. $X=$ Pre-ejection period and $Y=$ LV ejection time
    • C. $X=$ Electromechanical systole and $Y=$ LV ejection time
    • D. $X=$ Pre-ejection period and $Y=$ Electromechanical systole
    Show answer

    Answer: B. $X=$ Pre-ejection period and $Y=$ LV ejection time

    $X=$ Pre-ejection period and $Y=$ LV ejection time - X represents the pre-ejection period, extending from the Q wave to aortic valve opening and including isovolumetric ventricular contraction. - Y represents LV ejection time, the interval from aortic valve opening to closure during which blood is ejected into the aorta. $X=$ LV ejection time and $Y=$ Pre-ejection period - X is the interval before ventricular ejection, from ventricular depolarization to aortic valve opening; therefore it represents the pre-ejection period, not LV ejection time. - Y extends between aortic valve opening and closure, representing LV ejection time; the option reverses the sequence of these two intervals. $X=$ Electromechanical systole and $Y=$ LV ejection time - X is not electromechanical systole; it is only the pre-ejection period, which occurs before aortic valve opening. - Y correctly denotes LV ejection time, but the option is incorrect because electromechanical systole includes both pre-ejection and ejection intervals. $X=$ Pre-ejection period and $Y=$ Electromechanical systole - X correctly represents the pre-ejection period, but it does not represent the entire electromechanical systole. - Electromechanical systole extends from the Q wave to aortic valve closure and includes both X and Y, whereas Y alone is LV ejection time.

  3. 3. In established hypovolaemic shock, which renal haemodynamic change is expected?

    • A. Renal blood flow decreases
    • B. Afferent arteriolar resistance decreases
    • C. Renal perfusion increases
    • D. Glomerular filtration rate increases
    Show answer

    Answer: A. Renal blood flow decreases

    Renal blood flow decreases in established hypovolaemic shock because reduced circulating volume and renal vasoconstriction reduce renal perfusion. Afferent arteriolar resistance decreases is incorrect because sympathetic activation generally increases afferent resistance in this setting. Renal perfusion increases is incorrect because renal perfusion falls. Glomerular filtration rate increases is incorrect because filtration generally falls as renal hypoperfusion becomes established.

  4. 4. Which of the following is NOT associated with thymoma?

    • A. Myasthenia gravis
    • B. Mediastinal compression
    • C. Pure red cell aplasia
    • D. Hypergammaglobulinemia
    Show answer

    Answer: D. Hypergammaglobulinemia

    Hypergammaglobulinemia - Thymoma is associated with Good syndrome, an immunodeficiency characterized by reduced B cells and low serum immunoglobulins. - Therefore, hypogammaglobulinemia, not hypergammaglobulinemia, is the expected immunoglobulin abnormality, making this option the exception. Myasthenia gravis - Myasthenia gravis is a well-established autoimmune association with thymoma, occurring in approximately 30–45% of patients with thymoma. - Thymoma may induce abnormal T-cell selection and autoimmunity, making neuromuscular-junction disease a characteristic paraneoplastic manifestation rather than an exclusion. Mediastinal compression - Thymomas arise in the anterior mediastinum and may enlarge sufficiently to compress adjacent mediastinal structures. - This local mass effect can cause cough, dyspnea, chest pain, or superior vena cava syndrome, so mediastinal compression is associated with thymoma. Pure red cell aplasia - Pure red cell aplasia is a recognized paraneoplastic manifestation of thymoma, reflecting immune-mediated suppression of erythroid precursors. - Approximately 5–15% of patients with pure red cell aplasia have an associated thymoma, and tumor removal may occasionally produce hematologic remission.

  5. 5. Which of the following receptors mediate the release of ACTH by Vasopressin?

    • A. Oxytocin receptor
    • B. V3
    • C. V1a
    • D. V2
    Show answer

    Answer: B. V3

    V3 - V3 receptors, also called V1b receptors, are located on anterior pituitary corticotrophs and mediate vasopressin-stimulated ACTH release. - They are Gq-coupled, activating phospholipase C, increasing intracellular calcium, and promoting ACTH secretion; vasopressin acts synergistically with CRH. Oxytocin receptor - Oxytocin receptor mediates uterine contraction and milk ejection, not vasopressin-stimulated ACTH release from corticotrophs. V1a - V1a receptors primarily occur on vascular smooth muscle, where they mediate vasoconstriction, and in the liver, where they promote glycogenolysis. - Although V1a is a genuine vasopressin receptor, it does not primarily mediate ACTH release from anterior pituitary corticotrophs; that function belongs to V3/V1b. V2 - V2 receptors are located mainly on principal cells of the renal collecting ducts and mediate vasopressin’s antidiuretic effect. - Through the Gs-cAMP pathway, V2 receptors promote aquaporin-2 insertion and water reabsorption; they do not mediate pituitary ACTH release.

  6. 6. An increase in afterload and venous compliance can cause stroke volume to change from the point marked X to which point?

    • A. C
    • B. E
    • C. A
    • D. D
    Show answer

    Answer: B. E

    E represents reduced filling and reduced stroke volume: increased venous compliance reduces venous return, while increased afterload impedes ventricular ejection. C lies to the right of X and therefore represents greater rather than reduced filling. A lies above X and therefore represents increased rather than reduced stroke volume. D also lies to the right of X, contrary to the reduced filling expected from increased venous compliance.

  7. 7. Which physiological phenomenon is illustrated by the difference in peripheral flow between the two panels?

    • A. Poiseuille's law
    • B. Windkessel effect
    • C. Ohm's law of flow
    • D. Frank-Starling law
    Show answer

    Answer: B. Windkessel effect

    Windkessel effect - The Windkessel effect allows the compliant aorta to expand during systole, storing part of the stroke volume and dampening pressure pulsations. - During diastole, aortic elastic recoil releases the stored energy after valve closure, maintaining forward blood flow between heartbeats. Ohm's law of flow - Ohm's law of flow in circulation relates blood flow to the pressure gradient and vascular resistance, expressed as flow = ΔP/R. - The diagram emphasizes aortic compliance and elastic buffering rather than the resistance-based relationship governing blood flow. Poiseuille's law - Poiseuille’s law describes flow through a cylindrical tube as dependent on vessel radius, length, fluid viscosity, and pressure gradient. - It does not explain elastic energy storage and release by the aorta during systole and diastole. Frank-Starling law - The Frank-Starling law increases cardiac contraction force when venous return and end-diastolic volume rise. - This concerns cardiac muscle pump function, not the compliant aorta’s vascular recoil and buffering of pulsatile flow.

  8. 8. The Doppler effect in medical ultrasound refers to a change in which property of reflected sound?

    • A. Direction
    • B. Amplitude
    • C. Frequency
    • D. Speed
    Show answer

    Answer: C. Frequency

    Frequency is the property shifted in the Doppler effect. Relative motion between the transducer and reflector causes the received frequency to differ from the transmitted frequency. Direction may change during reflection or refraction, but this does not define the Doppler effect. Amplitude describes wave strength rather than the motion-dependent frequency shift. Speed is determined principally by the propagation medium and is not the property whose change defines the Doppler effect.

  9. 9. The two rigid cylindrical vessels shown carry the same fluid under an equal pressure difference in steady laminar flow. Using the dimensions marked in the diagram, what is the volume flow rate in A compared with B?

    • A. 4 times
    • B. 8 times
    • C. 16 times
    • D. 32 times
    Show answer

    Answer: B. 8 times

    8 times - Poiseuille’s law states that flow is proportional to radius⁴ and inversely proportional to length when pressure difference, viscosity, and laminar conditions are constant. - Vessel A has twice the radius and twice the length, so Qₐ/Qᵦ = (2r)⁴/(2L) ÷ (r⁴/L) = 16/2 = 8 times. 4 times - Four times does not account for the fourth-power effect of radius on flow; doubling diameter produces a 16-fold radius contribution before considering length. - Because vessel A is also twice as long, its increased resistance halves that contribution, yielding 8 times, not 4 times. 16 times - Sixteen times would apply if vessel A had twice the radius but the same length as vessel B, since flow would then increase by 2⁴. - Vessel A is twice as long, which doubles resistance and reduces the ratio from 16 to 8; therefore, 16 times is not correct. 32 times - Thirty-two times would require twice the radius combined with half the length, producing a 16-fold radius effect and a further twofold length effect. - Here, vessel A has twice the length, not half the length, so its length-related resistance reduces the flow ratio to 8 times.

  10. 10. The largest component of the total peripheral resistance is due to:

    • A. Venules
    • B. Arterioles
    • C. Capillaries
    • D. Precapillary sphincters
    Show answer

    Answer: B. Arterioles

    Arterioles - Arterioles are the primary contributors to total peripheral resistance, accounting for approximately 47% of peripheral vascular resistance because of their small radius and high smooth-muscle tone. - As the main precapillary resistance vessels, they regulate blood-flow distribution and mean arterial pressure through vasoconstriction and vasodilation. Venules - Venules are primarily capacitance vessels with thin walls and large luminal diameters, so they contribute relatively little to total peripheral resistance. - Their main role is collecting blood from capillaries rather than regulating vascular resistance, making them unsuitable as the largest component of total peripheral resistance. Precapillary sphincters - Precapillary sphincters act as local flow-control valves, regulating blood entry into individual capillary beds. - Although they influence local blood flow, they are small muscle bands and do not contribute as substantially to total peripheral resistance as arterioles. Capillaries - Although individual capillaries have very small diameters, their vast numbers and parallel arrangement substantially reduce the overall resistance of the capillary bed. - Capillaries primarily support nutrient and gas exchange, contributing only a small fraction to total peripheral resistance rather than generating the greatest resistance.

Flashcards: Hemodynamics and Blood Flow

  1. 1. The main site of peripheral vascular resistance is precapillary

    Show answer

    arterioles

  2. 2. have both unitary and multiunit smooth muscle systems

    Show answer

    Blood vessels

  3. 3. The main regulatory factor for vasomotion is tissue concentration.

    Show answer

    oxygen

  4. 4. What phenomenon is responsible for blood flow through the capillaries?

    Show answer

    Vasomotion

  5. 5. Resistance is _____ proportional to the _____ of the blood

    Show answer

    directly · viscosity (η)

  6. 6. is a semiquantitative method that measures changes in the volume of blood flow and velocity

    Show answer

    Plethysmography

  7. 7. The _____ function curve is a plot of the relationship between _____ of the right atrium and _____

    Show answer

    vascular · pressure · venous return

  8. 8. Does the following cardiac/vascular function graph reflect a patient with chronic anemia or anaphylaxis? _____

    Show answer

    Anaphylaxis

  9. 9. The image shows a _____ pulse waveform.

    Show answer

    normal

  10. 10. Does the following cardiac/vascular function graph reflect a patient with chronic anemia or anaphylaxis? _____

    Show answer

    Chronic Anemia
