Material Properties & Metals - Foundation & Frameworks

  • Core Mechanical Properties:
    • Stress ($\sigma$): Force/Area ($F/A$). Strain ($\epsilon$): Relative deformation ($\Delta L/L_0$).
    • Young's Modulus ($E = \sigma/\epsilon$): Stiffness; resistance to elastic deformation.
    • Yield Strength: Stress initiating plastic deformation.
    • Ultimate Tensile Strength (UTS): Max stress before fracture.
    • Fatigue Strength: Resistance to failure under cyclic loads.
  • Biocompatibility: Elicits appropriate host response; non-toxic (ISO 10993).
  • Primary Metals in P&O:
    • Stainless Steel (316L): Strong, corrosion-resistant, ductile. Uses: Orthotic joints, fixation. Con: Heavy.
    • Titanium & Alloys (Ti-6Al-4V): Superior strength-to-weight, excellent biocompatibility & corrosion resistance. Uses: Prosthetic pylons, cementless implants.

      ⭐ Titanium's osseointegration (direct bone-to-implant growth) is vital for long-term stability of cementless prostheses.

    • Aluminium Alloys (6061, 7075): Lightweight, formable, cost-effective. Uses: Pylons, KAFO uprights. Con: Lower fatigue strength.

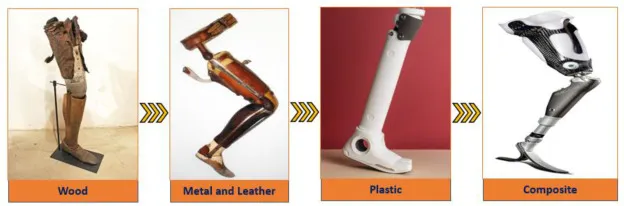

    • Cobalt-Chromium Alloys (Co-Cr): High strength, hardness, wear/corrosion resistance. Uses: Joint replacement articulating surfaces. Evolution of Prosthetic Leg Materials

Polymers & Composites - Shaping Modern P&O

  • Polymers: Lightweight, moldable, corrosion-resistant.

    • Thermoplastics: Remoldable with heat; recyclable.
      • Polypropylene (PP): Common, rigid yet flexible. Uses: Sockets, AFOs, KAFOs.
      • Polyethylene (PE):
        • LDPE: Flexible (liners, padding).
        • HDPE: Stiffer (structural components).
        • UHMWPE: Low friction, high wear resistance (joint components).
      • Copolymers (e.g., with EVA): Enhanced flexibility & cushioning.
    • Thermosets: Permanent shape after curing; stronger, more rigid.
      • Epoxy Resins: High strength, good adhesion (lamination matrix).
      • Polyester Resins: Cost-effective alternative to epoxy (lamination matrix).
      • Acrylic Resins (PMMA): Used for lamination, transparent check sockets. 📌 Mnemonic: ThermoPlastics (PP, PE) = Pliable & Processable repeatedly. ThermoSets (Epoxy, Polyester) = Strong & Set permanently.
  • Composites: Reinforcing fibers in a polymer matrix (typically thermoset).

    • High strength-to-weight ratio, stiffness, fatigue resistance.
    • Reinforcing Fibers:
      • Carbon Fiber: Highest strength & stiffness, lightweight. Uses: High-performance prostheses, energy-storing components, dynamic AFOs.
      • Glass Fiber (E-glass, S-glass): Good strength, lower cost. Uses: General P&O applications.
      • Aramid Fiber (e.g., Kevlar®): High impact & fracture resistance. Uses: Sockets requiring high durability.
    • Matrix Materials: Epoxy or polyester resins bind fibers.

⭐ Carbon fiber composites offer the highest strength-to-weight ratio, crucial for lightweight, energy-storing prosthetic feet and dynamic orthoses, significantly improving user mobility and reducing energy expenditure.

Other Materials & Selection - Cushion, Cover & Choice

  • Natural Materials:
    • Wood: E.g., Willow, Poplar. Lightweight, carvable. Used in older designs, specific pylons.
    • Leather: For straps, suspension components, socket lining. Durable, molds to shape.
  • Foams & Liners (Cushioning/Interface):
    • Polyurethane (PU) Foam: Variable densities for cushioning, shock absorption.
    • Silicone: Liners, suspension sleeves. Excellent biocompatibility, good skin interface, distributes pressure.
    • EVA (Ethylene Vinyl Acetate): Lightweight, resilient, thermoformable. Common in liners, soft orthoses.
  • Covers: Enhance cosmesis, protect internal components. Materials: Foam, fabric, custom silicone.
  • Material Selection Criteria (The "Choice"):
    • Strength-to-weight ratio: Critical for energy expenditure.
    • Durability & Fatigue Resistance: Withstand cyclic loading.
    • Biocompatibility: Prevent skin irritation/allergy.
    • Cost-effectiveness: Balance performance and affordability.
    • Ease of fabrication & maintenance.
    • Patient-specific factors: Activity level, weight, cosmetic needs, comorbidities (e.g., diabetes).
    • Environmental resistance (moisture, temperature).

⭐ Silicone liners offer excellent skin protection and suspension but can be expensive and require meticulous hygiene.

High‑Yield Points - ⚡ Biggest Takeaways

  • Titanium alloys: Superior strength-to-weight ratio, biocompatibility for endoskeletal parts.
  • Polypropylene: Common thermoplastic for AFOs/KAFOs; durable, easy to fabricate.
  • Carbon fiber composites: High strength, lightweight, energy return for dynamic prostheses.
  • Silicone: For liners/suspension sleeves; soft, biocompatible, good grip.
  • Plastazote (PE foam): Widely used for cushioning and thermoformable linings.
  • Stainless steel: Valued for high strength and corrosion resistance in specific components.
  • Key properties: Strength, weight, durability, biocompatibility, fabrication ease.
