Lower Limb Orthoses

On this page

LLO Basics & Biomechanics - Foundation Footings

  • Orthosis: External device; supports/controls body part.
  • LLO (Lower Limb Orthosis): Orthosis for hip, knee, ankle, foot.
  • Goals:
    • Support & Stability
    • Alignment
    • Immobilisation
    • Prevent/Correct Deformity
    • Improve Function
    • Pain Relief
  • Biomechanical Principles:

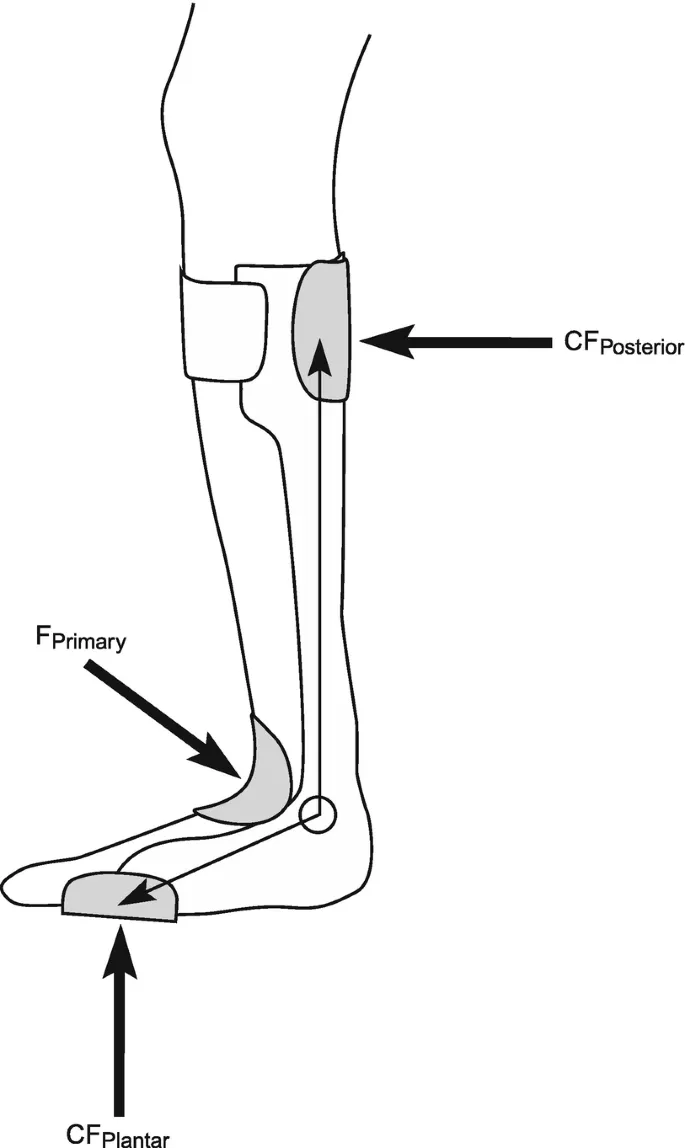

    • 3-Point Pressure: Two forces countered by a third. 3-point pressure system in lower limb orthosis
    • Ground Reaction Force (GRF): Force from ground on body.
    • Levers: Orthoses modify forces acting as levers.

⭐ The primary goal of an orthosis is to control, guide, limit, or immobilize a joint or body segment.

Foot & Ankle Orthoses - Stepping Stones

  • Foot Orthoses (FOs): Modify foot forces, improve alignment.

    • UCBL: Controls hindfoot valgus/varus. Ind: Flexible pes planovalgus.
    • SMO: Controls foot & ankle. Ind: Severe pronation/supination in children.
    • Heel Cups: Cushioning. Ind: Plantar fasciitis, heel spurs.

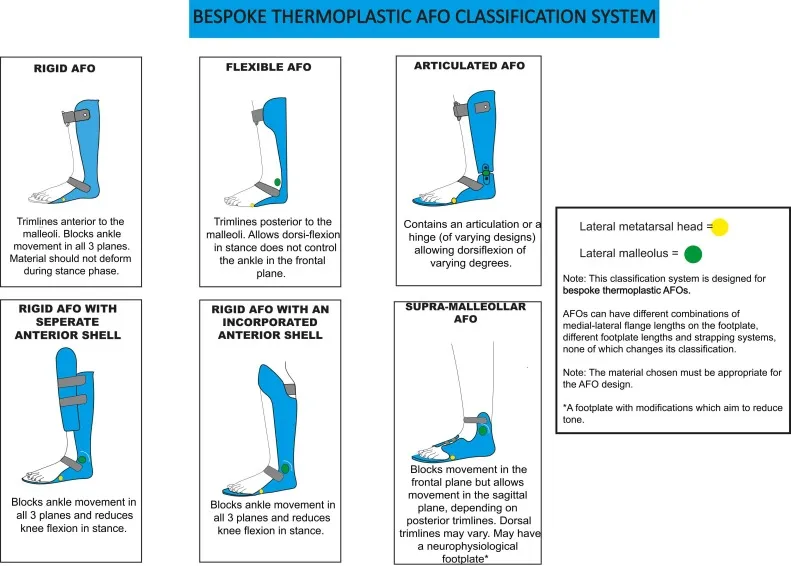

  • Ankle-Foot Orthoses (AFOs): Control ankle motion. Bespoke Thermoplastic AFO Classification System

    AFO TypeControl & Key Indications
    Static AFOs
    Solid AFOImmobilizes ankle. Ind: Severe spasticity, post-op, instability.
    GRAFOBlocks DF, aids knee ext. Ind: Crouch gait, quad weakness.
    Dynamic AFOs
    PLS AFOAssists DF, allows PF. Ind: Foot drop (DF weakness).
    Hinged AFOControlled PF/DF (stops). Ind: Spasticity with motor control, knee hyperextension.
    Articulated AFOSpecific joint motion (stops). Ind: Variable; fine-tunes ankle movement.

⭐ Posterior Leaf Spring (PLS) AFO is indicated for isolated dorsiflexion weakness with good mediolateral ankle stability.

Knee & Hip Orthoses - Joint Protectors

  • Knee Orthoses (KOs): Support/protect knee.
    • Prophylactic: Prevent/reduce injury (sports).
    • Rehabilitative: Limit motion post-op/injury (ACL).
    • Functional: Support unstable knee.
    • Unloader/Offloader: Reduce load (osteoarthritis).
  • Knee-Ankle-Foot Orthoses (KAFOs): Control knee, ankle, foot.
    • Types: Conventional (metal/leather), Thermoplastic (lighter).
    • Stance Control KAFOs (SCKAFOs): Lock knee in stance, unlock in swing.
  • Hip Orthoses (HOs) & Hip-Knee-Ankle-Foot Orthoses (HKAFOs):
    • Indications: SCI, polio, muscular dystrophy, post-op hip.
    • HKAFOs control hip, knee, ankle, foot.

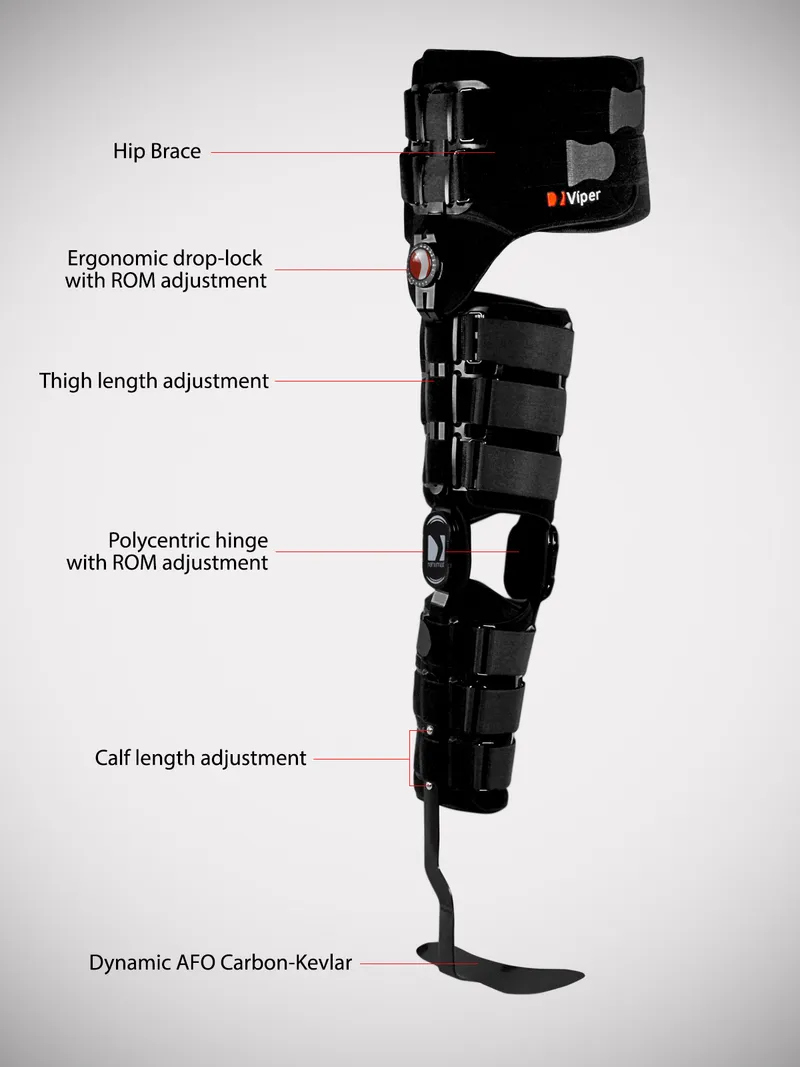

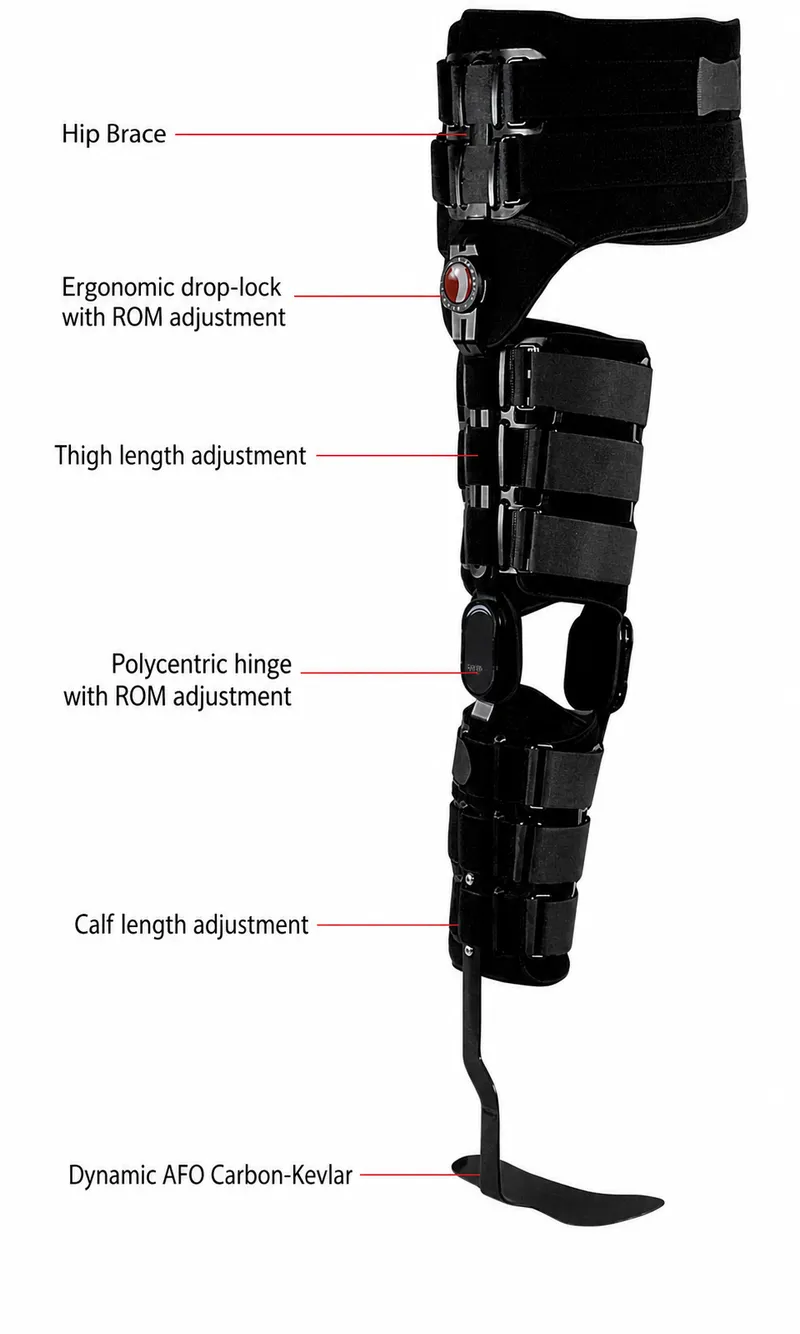

    • HKAFO components and adjustments

⭐ A Swedish Knee Cage (KO) is used to control genu recurvatum.

Clinical Rx & Complications - Brace for Impact

  • Common Conditions & Orthotic Choices:

    ConditionTypical Orthotic PrescriptionKey Goals
    Foot dropAnkle-Foot Orthosis (AFO)Dorsiflexion assist, toe clearance
    Genu Varum/ValgumUnloader Knee Orthosis (KO)↓ compartment load, pain relief
    ParaplegiaKAFO / HKAFOStability for standing/ambulation
    Cerebral PalsyVarious AFOs / KAFOsGait aid, spasticity control, support
    Charcot FootCROW BootImmobilize, offload, prevent deformity
  • Materials:

    • Metals (e.g., stainless steel, aluminum alloys): Strong, durable.
    • Plastics (e.g., polypropylene, polyethylene): Light, moldable.
    • Composites (e.g., carbon fiber): High strength/weight, dynamic.
  • Complications: 📌 SKIN (Sores, Kinesthesia altered, Irritation, Nerve palsy).

    • Skin breakdown, pressure sores (⚠️ at bony prominences).
    • Nerve palsy (e.g., common peroneal nerve with AFO).
    • Patient non-compliance due to discomfort/cosmesis.

    ⭐ The most common complication of orthotic use is skin irritation or breakdown.

  • Checkout & Fitting Principles:

    • 3-point pressure check.
    • Trim lines clear prominences, allow intended ROM.
    • Educate: wear schedule, skin checks, hygiene.

Fitting an AFO

High‑Yield Points - ⚡ Biggest Takeaways

  • Foot Orthoses (FO): For pes planus, plantar fasciitis, metatarsalgia.
  • Ankle-Foot Orthoses (AFO): Manage foot drop (peroneal nerve palsy), cerebral palsy spasticity.
  • Knee-Ankle-Foot Orthoses (KAFO): For quadriceps weakness, genu recurvatum, major knee instability.
  • Hip-Knee-Ankle-Foot Orthoses (HKAFO): For paraplegia (SCI), severe global lower limb weakness.
  • Three-point pressure principle: Core biomechanics for orthotic control, deformity correction.
  • Materials: Thermoplastics (polypropylene) favored: lightweight, durable, moldable.
  • Orthotic Checkout: Verifies fit, alignment, function; prevents skin breakdown.
