Biomechanics of Upper Limb

On this page

Shoulder Complex - The Mobile Anchor

  • Glenohumeral Stability:
    • Static: Labrum, capsule, GH & CH ligaments, negative intra-articular pressure.
    • Dynamic: Rotator cuff (📌 SITS), biceps long head, deltoid, scapular stabilizers.
  • Rotator Cuff (📌 SITS): Key for movement & dynamic stability.
    • Supraspinatus: Initiates abduction (first ~15°).
    • Infraspinatus & Teres Minor: External rotation.
    • Subscapularis: Internal rotation.
  • Scapulohumeral Rhythm: Coordinated GH & scapulothoracic (ST) movement. Overall ratio GH:ST approx. $2:1$.

    ⭐ The overall ratio of glenohumeral to scapulothoracic movement during arm elevation is approximately 2:1.

    • Muscles: Serratus anterior, trapezius.
  • Force Couples: Synergistic muscle actions.
    • Deltoid (up) & Rotator Cuff (down/compressive) → stable abduction.
    • Trapezius & Serratus Anterior → scapular upward rotation.
  • Common Movements:
    • Abduction: Deltoid, Supraspinatus.
    • Flexion: Ant. Deltoid, Coracobrachialis, Pectoralis Major (clavicular). Scapulohumeral rhythm during shoulder abduction

Elbow & Forearm - Hinge & Swivel

  • Joints & Movements:
    • Humeroulnar: Hinge (flexion/extension).
    • Humeroradial: Hinge & pivot (flexion/extension, pro/supination).
    • Proximal Radioulnar: Pivot (pronation/supination).
  • Carrying Angle: (Cubitus valgus)
    • Males: 5-10°; Females: 10-15°.
    • Clears hips during ambulation. Carrying angle of the elbow
  • Stability:
    • Valgus: Medial Collateral Ligament (MCL/UCL).
    • Varus: Lateral Collateral Ligament (LCL) complex.
  • Key Muscles:
    • Flexors: Biceps brachii, brachialis, brachioradialis.
    • Extensors: Triceps brachii, anconeus.
    • Pronators: Pronator teres, pronator quadratus.
    • Supinators: Supinator, biceps brachii.
  • Forces: High in lifting (compression) & throwing (MCL tension).

⭐ The normal carrying angle of the elbow is typically 5-10 degrees in males and 10-15 degrees in females, facilitating objects to be carried away from the thighs.

Wrist & Hand - Dexterity's Dance

  • Wrist Joint: Radiocarpal & Ulnocarpal complex (TFCC critical for ulnar stability).
    • 📌 Carpal Bones: Some Lovers Try Positions That They Can't Handle (Scaphoid, Lunate, Triquetrum, Pisiform, Trapezium, Trapezoid, Capitate, Hamate).
  • Carpal Kinematics: "Dart thrower's motion" - coupled flexion-ulnar deviation & extension-radial deviation for functional tasks.
  • Hand Arches: Longitudinal & Transverse (proximal, distal) allow cupping & grip adaptation. Anatomy of hand arches and carpal bones
  • Grip Types & Muscle Roles:
  • Tendon Pulley System: Annular (A1-A5) & cruciform (C1-C3) ligaments prevent flexor tendon bowstringing, optimizing mechanical efficiency.

⭐ The scaphoid bone acts as a crucial mechanical link between the proximal and distal carpal rows, and is the most commonly fractured carpal bone (often from FOOSH).

Clinical Applications - When Forces Fail

  • Rotator Cuff Impingement/Tears: Subacromial space ↓, repetitive overhead motion → supraspinatus compression. Abnormal scapulohumeral rhythm. Normal vs. Impinged Rotator Cuff
  • Shoulder Instability: Humeral head excessive translation. Static/dynamic stabilizer failure. Force > stabilizing capacity.
  • Tennis Elbow (Lateral Epicondylitis): Repetitive wrist extension/supination. Eccentric ECRB overload.

    ⭐ Tennis elbow (lateral epicondylitis) is primarily caused by repetitive eccentric overload of the extensor carpi radialis brevis (ECRB) origin.

  • Golfer's Elbow (Medial Epicondylitis): Repetitive wrist flexion/pronation. Common flexor origin overload.

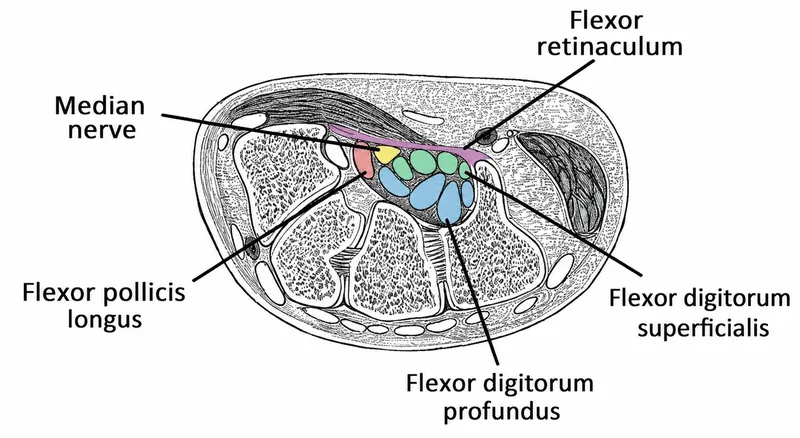

  • Carpal Tunnel Syndrome: ↑ carpal tunnel pressure → median nerve compression. Repetitive wrist movements. Cross-section of carpal tunnel with median nerve
  • Ulnar Nerve Entrapment:
    • Elbow (Cubital Tunnel): Compression/traction in cubital tunnel; elbow flexion ↑ pressure.
    • Wrist (Guyon's Canal): Compression in Guyon's canal; repetitive trauma/pressure.

High‑Yield Points - ⚡ Biggest Takeaways

  • Shoulder joint: Most mobile, least stable; rotator cuff (SITS) crucial for dynamic stability.
  • Scapulohumeral rhythm: Essential 2:1 ratio for full shoulder abduction.
  • Elbow: A hinge joint (flexion/extension); normal carrying angle is 5-15° valgus.
  • Forearm rotation: Pronation/supination via proximal & distal radio-ulnar joints.
  • Wrist (radiocarpal joint): Enables flexion-extension & radial-ulnar deviation.
  • Grip strength: Relies on extrinsic flexors & intrinsic hand muscles.
  • Upper limb joints function as lever systems, optimizing force and range of motion.
