Biomechanics of Sports Injuries

On this page

Biomechanics Basics - Force & Failure Fun

  • Stress ($\.sigma\.): Force/Area ($F/A$). Types: tension, compression, shear.
  • Strain ($\.epsilon\.): Deformation/Original Length ($\.Delta L/L_0\.$).
  • Stress-Strain Curve:
    • Elastic Region: Reversible. Slope = Young's Modulus (E) (stiffness).
    • Yield Point: Elastic limit.
    • Plastic Region: Permanent deformation.
    • Ultimate Strength: Max stress.
    • Failure Point: Fracture.
  • Material Properties: Ductile (deforms), Brittle (fractures easily), Toughness (energy absorption).
  • Viscoelasticity: Time-dependent.
    • Creep: ↑ strain @ constant stress.
    • Stress Relaxation: ↓ stress @ constant strain.
    • Rate-dependent: Stiffer at ↑ loading rates.
  • Wolff's Law: Bone adapts to loads.

    ⭐ Bone remodels along lines of maximal stress.

  • Failure Modes:

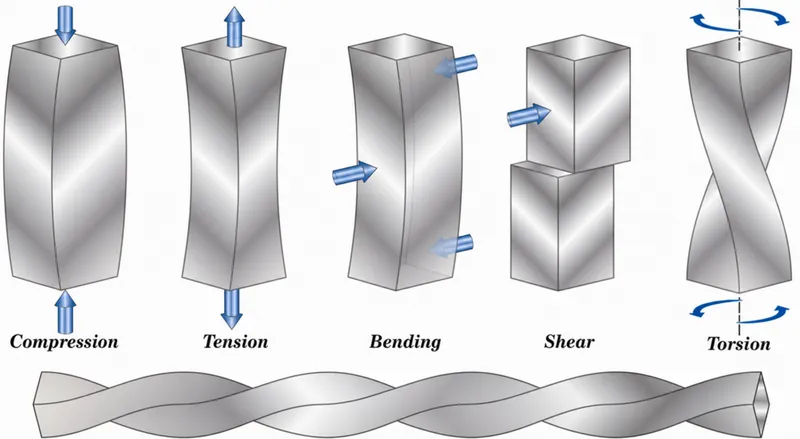

    • Load Types: Tension, compression, shear, bending, torsion.
    • Fatigue: Repetitive sub-maximal loads.
    • Acute: Single traumatic overload.

Injury Mechanisms - Snap, Crackle, Pop!

  • Primary Forces Causing Injury:
    • Tensile: Stretching/pulling (e.g., muscle/tendon strain, ligament sprain).
    • Compressive: Direct impact/crushing (e.g., contusion, cartilage damage).
    • Shear: Parallel forces in opposite directions (e.g., ACL tear, blister).
    • Torsional: Twisting/rotational (e.g., spiral fracture, meniscal tear).
  • Injury Classification by Onset:
    • Acute (Traumatic): Single, identifiable high-energy event. Results in macrotrauma.
    • Chronic (Overuse): Repetitive submaximal stress. Leads to microtrauma accumulation.
  • Tissue Biomechanical Response: Load → Stress → Strain. Exceeding elastic limit → Plastic deformation → Tissue failure.
  • Characteristic Sounds (Audible Clues):
    • Snap: Often indicates acute ligament or tendon rupture.
    • Crackle/Crepitus: Suggests fracture fragments rubbing or chondromalacia.
    • Pop: Common with ACL tears, meniscal injuries, or joint subluxation.

Loading diagram…

⭐ The stress-strain curve illustrates tissue behavior: elastic region (reversible deformation), yield point, plastic region (irreversible), and ultimate failure point.

Joint Hotspots - High-Stress Zones

  • Knee Joint: High valgus & rotational loads (cutting/pivoting).
    • ACL Injury: Non-contact deceleration, hyperextension, valgus + tibial rotation. Audible "pop".
      • 📌 Unhappy Triad (O'Donoghue's): ACL, MCL, Medial Meniscus tear (ATM).
    • Meniscal Tears: Twisting on flexed, weight-bearing knee. Locking/catching. Bucket-handle type.
  • Shoulder Joint (Glenohumeral): ↑ROM compromises stability; overuse risk.
    • Rotator Cuff Tears: Overuse (overhead sports), impingement. Supraspinatus most common; pain on abduction.
    • Dislocations (Anterior > Posterior): Abduction, external rotation, extension (FOOSH). Bankart & Hill-Sachs lesions.
  • Ankle Joint: Most frequently injured in sports.
    • Lateral Ankle Sprains: Inversion & plantarflexion (ATFL most common, then CFL).
    • High Ankle Sprain (Syndesmotic): Forced dorsiflexion/external rotation (AITFL/PITFL). Squeeze test positive.

⭐ The anterior talofibular ligament (ATFL) is the weakest and most commonly injured ligament in lateral ankle sprains.

Prevention & Performance - Biomechanical Shield

  • Injury Prevention Strategies:
    • Technique analysis & correction: Optimizes load distribution, minimizes joint stress.
    • Equipment modification: Custom footwear, appropriate protective gear (helmets, pads), taping/bracing.
    • Targeted conditioning: Enhances strength, flexibility, endurance, and proprioception.
    • Load management & recovery: Prevents overuse injuries, allows tissue adaptation.
  • Performance Enhancement:
    • Movement efficiency: Reduces energy cost, delays fatigue.
    • Force optimization: Maximizes power output and skill execution.

⭐ Eccentric strengthening programs are highly effective in preventing muscle strains, particularly hamstring injuries in athletes (e.g., Nordic hamstring exercise).

High‑Yield Points - ⚡ Biggest Takeaways

  • Tensile loading causes ligament sprains (e.g., ACL) and muscle-tendon strains.
  • Compressive forces lead to cartilage damage, meniscal tears, and impaction fractures.
  • Shear forces are critical in rotational injuries, causing chondral defects or avulsions.
  • Repetitive microtrauma underlies overuse syndromes like tendinopathies and stress fractures.
  • Eccentric muscle actions frequently cause muscle fiber damage and DOMS.
  • Valgus stress is key for MCL tears, often with ACL/meniscus (e.g., O'Donoghue's triad).
  • Altered kinematics and excessive loads are primary sports injury risk factors.

Unlock the full lesson and continue reading

Signup to continue reading this lesson and unlimited access questions, flashcards, AI notes, and more

Scan to download app

Scan to download
UNLOCK FREE ACCESS

Practice Questions: Biomechanics of Sports Injuries

  1. 1. A tissue specimen gradually returns completely to its original shape after a sustained deforming force is removed. Which type of deformation does this demonstrate?

    • A. Elastic deformation
    • B. Plastic deformation
    • C. Viscoplastic deformation
    • D. Viscoelastic deformation
    Show answer

    Answer: D. Viscoelastic deformation

    Viscoelastic deformation produces delayed recovery: elasticity restores the shape while viscosity delays recovery. Elastic deformation produces immediate complete recovery in the ideal purely elastic model. Viscoplastic deformation leaves rate-dependent permanent strain. Plastic deformation leaves permanent strain after yielding. Viscoelastic solids may recover fully; permanent viscous flow is not a universal feature of viscoelasticity.

  2. 2. Most common site of osteochondritis dissecans?

    • A. Lateral part of the lateral femoral condyle
    • B. Lateral part of the medial femoral condyle
    • C. Medial part of the lateral femoral condyle
    • D. Medial part of the medial femoral condyle
    Show answer

    Answer: B. Lateral part of the medial femoral condyle

    Lateral part of the medial femoral condyle - The lateral part of the medial femoral condyle is the most common site of knee osteochondritis dissecans, accounting for approximately 85% of cases. - Osteochondritis dissecans involves osteonecrosis and subchondral bone separation from the epiphysis, typically affecting this susceptible load-bearing region. Lateral part of the lateral femoral condyle - Lateral femoral condyle involvement is uncommon in knee osteochondritis dissecans, which has a strong predilection for the medial femoral condyle. - The lateral part of the medial femoral condyle is the characteristic site because of localized osteonecrosis and subchondral bone separation in a load-bearing region. Medial part of the lateral femoral condyle - The medial part of the lateral femoral condyle is an uncommon location because osteochondritis dissecans strongly favors the medial femoral condyle. - The typical lesion is instead found on the lateral aspect of the medial femoral condyle, where biomechanical stresses increase susceptibility. Medial part of the medial femoral condyle - The medial part of the medial femoral condyle can be affected but is less common than the lateral aspect of the same condyle. - The characteristic location is the lateral part of the medial femoral condyle, reflecting the condition’s site-specific biomechanical susceptibility.

  3. 3. Identify the clinical sign being tested in the image:

    • A. Ober clinical test
    • B. Trendelenburg test
    • C. Patrick (FABER) test
    • D. Thomas clinical test
    Show answer

    Answer: B. Trendelenburg test

    Trendelenburg test is shown by left-leg stance without external support and elevation of the right foot. A fall of the unsupported right hemipelvis would constitute a positive test and suggest impaired left hip-abductor function; the clothing tilt alone does not establish that result. Thomas clinical test assesses hip-flexion contracture with the patient supine. Ober clinical test assesses iliotibial-band tightness with the patient side-lying. Patrick (FABER) test uses supine hip flexion, abduction and external rotation to assess hip or sacroiliac pathology.

  4. 4. A 25-year-old man has knee pain for 2 days after a football injury. Varus stress is applied to the knee. Which ligament is primarily assessed?

    • A. Medial collateral ligament
    • B. Anterior cruciate ligament
    • C. Posterior cruciate ligament
    • D. Lateral collateral ligament
    Show answer

    Answer: D. Lateral collateral ligament

    Lateral collateral ligament - The varus stress test applies a force that opens the lateral knee compartment, directly assessing the integrity of the lateral collateral ligament. - The lateral collateral ligament resists varus angulation; pain or laxity during this maneuver therefore indicates possible LCL injury. Medial collateral ligament - The medial collateral ligament resists valgus stress, in which the knee is forced medially, rather than the varus force described here. - A varus stress test distracts the lateral side of the knee, so medial collateral ligament injury is not the primary finding assessed. Anterior cruciate ligament - The anterior cruciate ligament is evaluated using tests such as the Lachman and anterior drawer tests, which assess anterior tibial translation. - A varus stress specifically assesses collateral ligament stability, not the rotational and anteroposterior instability associated with an ACL tear. Posterior cruciate ligament - The posterior cruciate ligament is assessed primarily with the posterior drawer and posterior sag tests, which evaluate posterior tibial displacement. - The described varus force tests lateral collateral stability, so it does not primarily evaluate the posterior cruciate ligament.

  5. 5. A 30-year-old man has acute low back pain radiating down his left leg after lifting a heavy object. MRI reports focal left posterolateral displacement of L5–S1 disc material compressing the S1 root. What is the most likely diagnosis?

    • A. Lumbar spondylolysis
    • B. Lumbar spondylolisthesis
    • C. Prolapsed disc
    • D. Lumbar spondylosis
    Show answer

    Answer: C. Prolapsed disc

    Prolapsed disc is the correct answer because the MRI report describes displaced L5–S1 disc material compressing the S1 root. Lumbar spondylolysis is a pars interarticularis defect, which is not the reported lesion. Lumbar spondylolisthesis requires vertebral translation rather than focal displacement of disc material. Lumbar spondylosis denotes degenerative changes and does not specifically identify the focal compressive lesion described here.

  6. 6. A 26-year-old male presented with proximal 1/3rd fracture shaft of the femur. What is the treatment of choice in this patient?

    • A. Dynamic hip screw
    • B. Locking compression plate
    • C. Dynamic condylar screw
    • D. Interlocking nail
    Show answer

    Answer: D. Interlocking nail

    Interlocking nail is preferred for an adult proximal-third femoral-shaft fracture because it provides load sharing and controls length and rotation. Dynamic condylar screw is an extramedullary construct used for selected proximal femoral fractures rather than routine shaft fixation. Dynamic hip screw is principally used for appropriate extracapsular proximal femoral fractures, not this shaft fracture. Locking compression plate is an alternative when intramedullary fixation is unsuitable, not the routine first choice.

  7. 7. A 67-year-old woman has progressive right shoulder pain for 3 months. Active abduction and external rotation are weak, but passive movement is normal. She cannot maintain the arm at 90° abduction. Distal motor function, sensation and pulses are normal. What is the most likely diagnosis?

    • A. Brachial plexus injury
    • B. Glenohumeral osteoarthritis
    • C. Proximal humerus fracture
    • D. Rotator cuff tear
    Show answer

    Answer: D. Rotator cuff tear

    Rotator cuff tear - Rotator cuff tear causes weakness of active abduction and external rotation while preserving passive range of motion, indicating tendon dysfunction rather than a stiff glenohumeral joint. - Inability to maintain the arm at 90° abduction is a positive drop-arm test, strongly suggesting a substantial, particularly supraspinatus, tear. Brachial plexus injury - Brachial plexus injury can produce weakness, but usually causes associated sensory abnormalities, pain, or a recognizable nerve-distribution deficit, which are absent here. - The patient has normal sensation, pulse, and motor examination otherwise, with selective shoulder movement weakness and preserved passive motion, favoring a rotator cuff lesion instead. Glenohumeral osteoarthritis - Glenohumeral osteoarthritis typically causes joint pain, crepitus, and restriction of both active and passive range of motion because the articular surfaces and joint mechanics are affected. - This patient’s normal passive range of motion with marked selective weakness is inconsistent with the expected mechanical stiffness of advanced glenohumeral osteoarthritis. Proximal humerus fracture - Proximal humerus fracture generally follows acute trauma and produces sudden pain, often with swelling, bruising, and substantial movement limitation rather than a progressive three-month course. - The absence of a reported acute injury and the preserved passive range of motion make fracture less fitting than a rotator cuff tear.

  8. 8. Manoeuvre carried out for diagnosing medial meniscus injury is:

    • A. McMurray's test
    • B. Lachmann's test
    • C. Varus stress test
    • D. Valgus stress test
    Show answer

    Answer: A. McMurray's test

    McMurray's test - McMurray’s test is designed to detect meniscal tears, particularly involving the medial meniscus, through knee extension combined with tibial rotation. - A positive test produces pain or a click as the knee is extended from flexion while the tibia is internally or externally rotated. Varus stress test - Varus stress testing assesses the lateral collateral ligament by applying a laterally directed force at the medial knee and an opposing medially directed force at the ankle, checking for pain or increased lateral joint opening. - It does not primarily evaluate the medial meniscus; meniscal injury is assessed with rotational manoeuvres such as McMurray’s test rather than collateral-ligament stress. Lachmann's test - Lachmann’s test is used to assess the anterior cruciate ligament (ACL) by pulling the tibia anteriorly with the knee flexed approximately 20–30 degrees. - Excessive anterior translation indicates ACL laxity, so this test does not specifically diagnose a medial meniscus injury. Valgus stress test - Valgus stress testing evaluates the medial collateral ligament (MCL) by applying an outward force while stabilizing the thigh and observing pain or medial joint-line gapping. - Although it acts at the medial side of the knee, it tests MCL integrity, not the medial meniscus; rotational testing is more appropriate for meniscal injury.

  9. 9. A 24-year-old male footballer presents with knee pain after a twisting injury. The illustrated examination maneuver is positive. What is the most likely diagnosis?

    • A. Medial meniscus tear
    • B. Medial collateral ligament tear
    • C. Posterior cruciate ligament tear
    • D. Anterior cruciate ligament tear
    Show answer

    Answer: A. Medial meniscus tear

    Medial meniscus tear is supported by a medial joint-line click during knee extension with external tibial rotation and valgus stress, constituting a positive medial McMurray maneuver. Anterior cruciate ligament tear is assessed by Lachman or anterior drawer testing. Medial collateral ligament tear produces pain or laxity on valgus stress testing without the characteristic rotational joint-line click. Posterior cruciate ligament tear is assessed by posterior drawer testing or the posterior sag sign.

  10. 10. Hill-Sach's lesion is seen in:

    • A. Anterior dislocation of hip
    • B. Posterior dislocation of hip
    • C. Recurrent dislocation of shoulder
    • D. Posterior dislocation of shoulder
    Show answer

    Answer: C. Recurrent dislocation of shoulder

    Recurrent dislocation of shoulder - A Hill-Sachs lesion is a compression fracture of the posterolateral humeral head caused by impaction against the anterior glenoid rim. - Repeated anterior dislocations produce recurrent impaction, making recurrent shoulder dislocation the best answer. Posterior dislocation of shoulder - A posterior shoulder dislocation is not typically associated with a standard Hill-Sachs lesion, which involves the posterolateral humeral head. - Posterior dislocations may instead produce a reverse Hill-Sachs lesion, an anterior humeral head defect, or posterior glenoid injury. Posterior dislocation of hip - A posterior hip dislocation involves displacement of the femoral head from the acetabulum and does not cause a Hill-Sachs lesion. - Although high-impact trauma may cause acetabular fractures or sciatic nerve injury, the Hill-Sachs defect involves the humerus. Anterior dislocation of hip - An anterior hip dislocation displaces the femoral head anteriorly from the acetabulum and is unrelated to a Hill-Sachs lesion. - A Hill-Sachs lesion is a defect of the humeral head, not the femoral head involved in hip dislocation.

Flashcards: Biomechanics of Sports Injuries

  1. 1. When the knee is extended, the _____ bundle of ACL is tight, and the _____ bundle is moderately lax.

    Show answer

    PL · AM

  2. 2. Cloverleaf shape of K-nail on the cross-section which provides good stability.

    Show answer

    rotational

  3. 3. When _____ is weak, trunk lurches _____ at heel-strike on _____ side to interrupt forward motion of the trunk

    Show answer

    gluteus maximus · backward · weakened
