Biomechanics of Spine

On this page

Spinal Anatomy & Curves - Backbone Basics

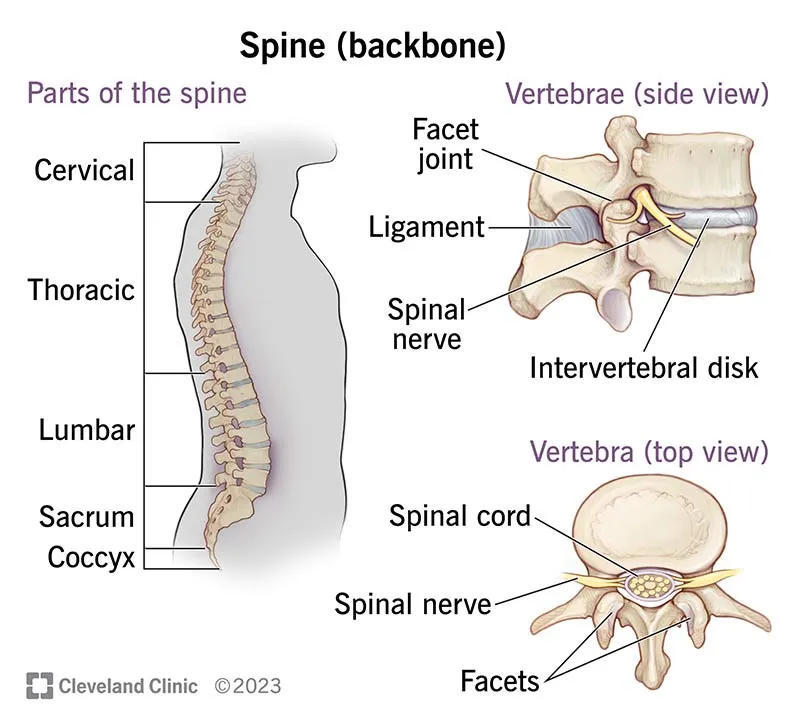

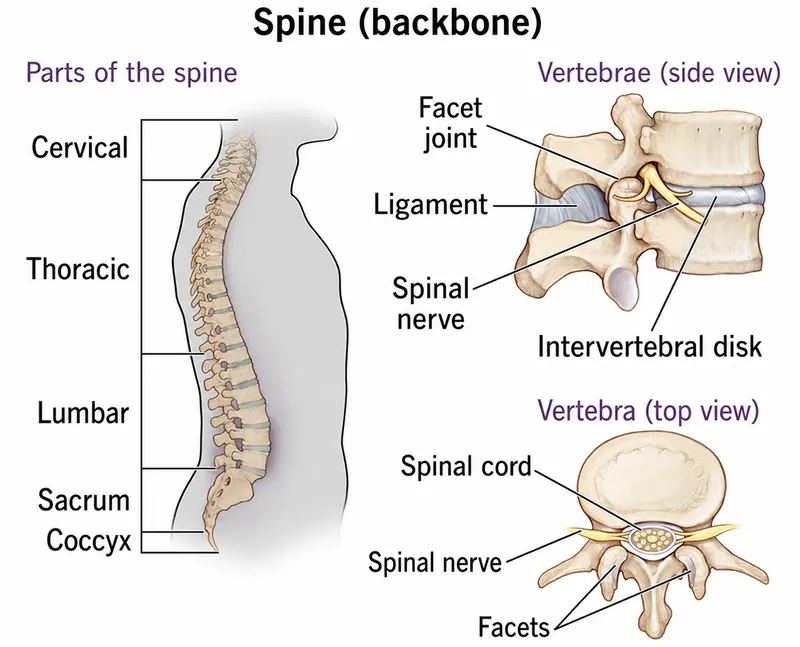

Spine Anatomy: Vertebral Column, Segments, and Curves

  • Vertebral Column: 33 vertebrae: 7 Cervical (C), 12 Thoracic (T), 5 Lumbar (L), 5 Sacral (S - fused), 4 Coccygeal (Co - fused).
  • Segments:
    • Anterior: Vertebral bodies, intervertebral discs (IVD).
    • Posterior: Vertebral arch (pedicles, laminae), facet joints, processes (spinous, transverse, articular).
  • Spinal Curves (Sagittal Plane):
    • Lordosis (concave posteriorly): Cervical, Lumbar.
    • Kyphosis (convex posteriorly): Thoracic, Sacral.
    • Develop postnatally (Cervical - head lifting; Lumbar - walking).
  • Intervertebral Disc (IVD):
    • Annulus Fibrosus: Outer, fibrocartilaginous rings.
    • Nucleus Pulposus: Inner, gelatinous core.

⭐ The nucleus pulposus, primarily composed of water (70-90%) and proteoglycans, is responsible for the disc's ability to resist compressive loads.

  • Ligaments: Anterior Longitudinal (ALL), Posterior Longitudinal (PLL), Ligamentum Flavum, Interspinous, Supraspinous. Provide stability. (📌 All People Like Fun In Summer for ligament order anterior to posterior, roughly).

Kinematics & Motion Segments - Spine's Smooth Moves

  • Kinematics: Study of motion; each segment has 6 degrees of freedom (DOF):
    • Translations (3): Anterior-Posterior, Lateral, Cranial-Caudal.
    • Rotations (3): Flex/Ext (Sagittal), Lat Bend (Coronal), Axial Rot (Transverse).
  • Functional Spinal Unit (FSU): Smallest motion unit.
    • Components: Two vertebrae, Intervertebral Disc (IVD), facet joints, ligaments.
    • Key for movement & stability.
  • Coupled Motions: Movement in one plane induces motion in another.

    ⭐ In the cervical spine (C2-C7), lateral bending is typically coupled with axial rotation to the same side.

  • Regional ROM Highlights:
    • Cervical: Max ROM. C1-C2: ~50% cervical rotation.
    • Thoracic: Max axial rotation; Flex/Ext limited by ribs.
    • Lumbar: Max Flex/Ext; rotation limited. Coupled motion in cervical spine functional unitoka

Loads on the Spine - Under Pressure Profile

  • Spinal loads include: axial compression, bending (flexion, extension, lateral), and torsion.
  • Intradiscal Pressure (IDP): A key indicator of the load experienced by intervertebral discs, especially lumbar.
    • Varies significantly with posture, body weight, muscle activity, and external loads.
    • Muscle co-contraction (e.g., abdominal bracing) can ↑ IDP but also ↑ spinal stability.
  • Relative IDP Values (Nachemson & Elfstrom, approximate units):
    • Lying supine: ~25
    • Standing erect: ~100
    • Sitting unsupported: ~140
    • Sitting, leaning forward / Forward bending: ~185-200
    • Lifting 20kg (correctly: back straight, knees bent): ~210
    • Lifting 20kg (incorrectly: back bent, knees straight): ~340 ⚠️ (High risk!)
  • Prolonged sitting, especially with poor posture, significantly ↑ IDP.

⭐ Intradiscal pressure is lowest when lying supine (~25 units), increases with standing (~100 units), and is significantly higher when sitting unsupported and leaning forward (~185 units) or lifting weights.

Intradiscal pressure in postures and activities (Nachemson)

Spinal Stability & Muscles - Balancing Act Breakdown

  • Panjabi's Three-Subsystem Model: Essential for spinal integrity under load.
    • Passive: Vertebrae, intervertebral discs, ligaments, facet joints. Provide inherent stiffness.
    • Active: Muscles and tendons (e.g., multifidus, erector spinae, abdominals). Generate forces for dynamic stability.
    • Neural Control: Central (CNS) & Peripheral Nervous Systems (PNS). Coordinate muscle responses.
  • Key Stabilizing Muscles:
    • Local (Deep/Core): Multifidus, Transversus Abdominis (TrA), Quadratus Lumborum (deep fibers). Critical for segmental control & stiffness.
    • Global (Superficial): Erector spinae, Rectus abdominis, External/Internal obliques. Control trunk motion & general stability.
  • Muscle Actions for Stability:
    • Co-contraction of antagonists (e.g., abdominals & back extensors).
    • Intra-Abdominal Pressure (IAP) mechanism.
    • 📌 Mnemonic: "PAL" for Panjabi's model (Passive, Active, Neural).

⭐ The multifidus muscle plays a crucial role in segmental stability of the lumbar spine, and its atrophy is often associated with chronic low back pain.

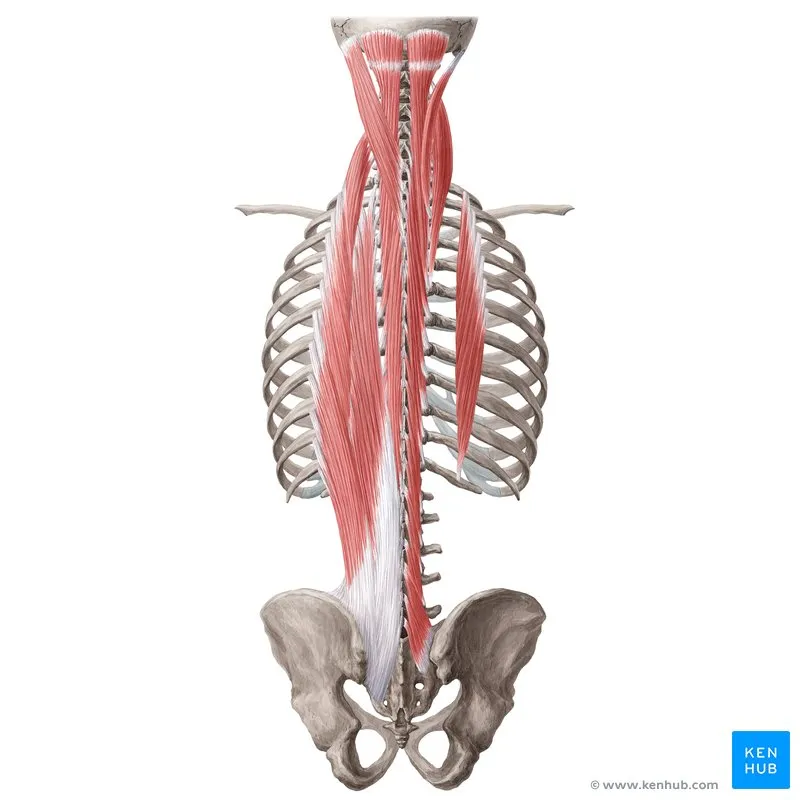

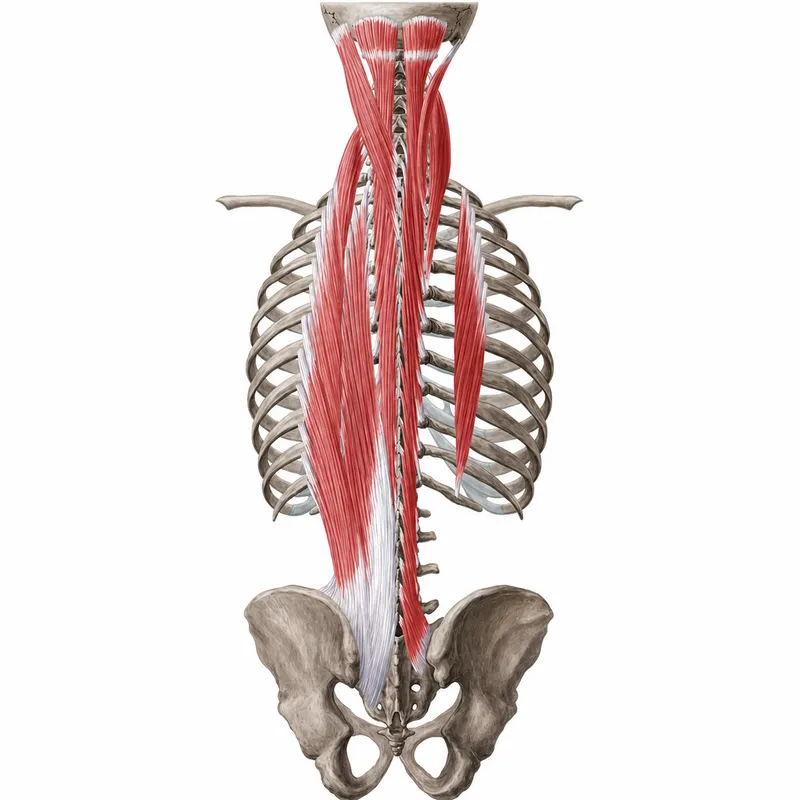

Deep and superficial spinal muscles

High‑Yield Points - ⚡ Biggest Takeaways

  • Fryette's Laws: Type I (neutral, opposite coupling), Type II (non-neutral, same-side coupling) for spinal motion.
  • IVD: Annulus fibrosus resists tension/torsion; Nucleus pulposus handles compression.
  • Facet joints guide motion, bear significant load (especially in extension/rotation), and limit range.
  • Instantaneous Axis of Rotation (IAR) shifts with disc degeneration, signaling instability.
  • Axial compression is primary spinal load; intradiscal pressure lowest when supine.
  • Denis three-column theory (anterior, middle, posterior) assesses thoracolumbar fracture stability.
  • Cervical spine (C2-C7): side-bending and rotation couple to the same side (Type II-like motion).
