Biomechanics of Hip

On this page

Hip Anatomy & Kinematics - Joint's Basic Moves

  • Articular Surfaces: Femoral head & acetabulum (lunate surface, notch).
  • Acetabular Labrum: Fibrocartilage rim; deepens socket, ↑ stability.
  • Joint Capsule: Strong, fibrous; encloses joint.
  • Key Ligaments: 📌
    • Iliofemoral (Y-ligament): Strongest; prevents hyperextension.
    • Pubofemoral: Limits abduction, extension.
    • Ischiofemoral: Limits internal rotation, extension.
    • Ligamentum Teres: Artery to femoral head (children).
  • Movements (ROM): (Plane / Axis)
    • Flexion: 120°, Ext: 20° (Sagittal / Frontal).
    • Abduction: 45°, Add: 30° (Frontal / Sagittal).
    • Ext. Rot: 45°, Int. Rot: 35° (Transverse / Vertical).
  • Blood Supply (Femoral Head):
    • Main: Medial Circumflex Femoral A. (MCFA).
    • Lateral Circumflex Femoral A. (LCFA).
    • Artery of Lig. Teres (children).

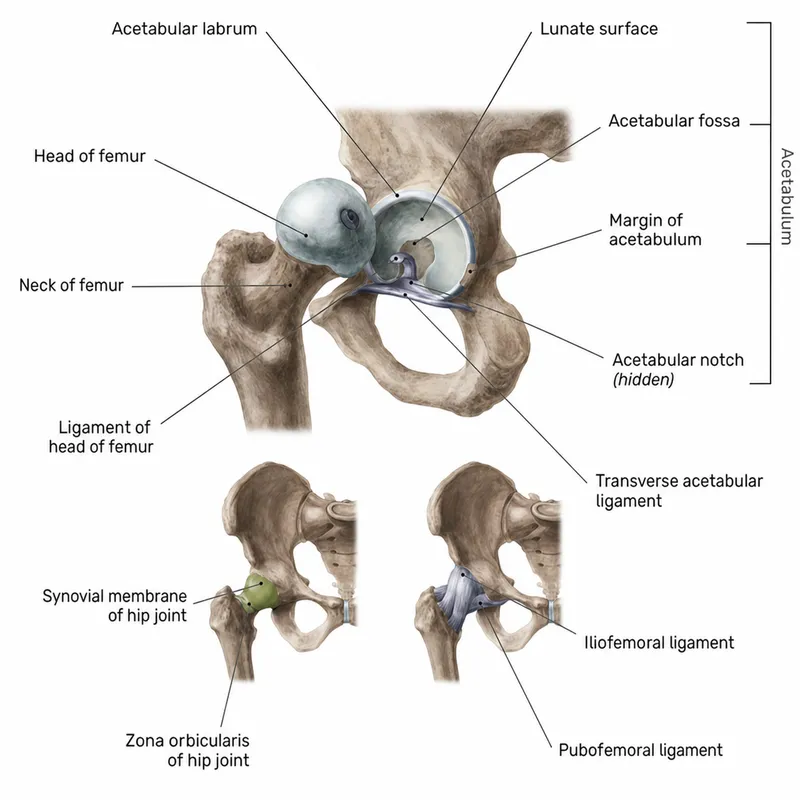

Hip joint anatomy: bones, labrum, capsule, ligaments Hip joint axes of motion and movements

⭐ Iliofemoral ligament (Y-ligament): strongest in body, prevents hip hyperextension.

Forces on the Hip - Balancing Act

  • Key Forces & JRF:
    • Body Weight (BW): Gravitational force vector.
    • Abductor Muscle Force (AMF): Gluteus medius/minimus; crucial for pelvic stability in single leg stance.
    • Joint Reaction Force (JRF): Net force across the hip. Magnitude: 3-6x BW (walking). Concept: $JRF \approx BW + AMF$ (vector sum).
  • Center of Rotation: Femoral head's center; reference for force moments.
  • Femoral Angles:
    • Neck-Shaft Angle (Inclination): Normal 125-135°. (<125° coxa vara; >135° coxa valga).
    • Anteversion Angle: Normal 10-15° (adults). (↑ leads to in-toeing).
  • Lever Arm Mechanics (Single Leg Stance):
    • BW lever arm (hip center to body CoG) > Abductor lever arm (hip center to greater trochanter).
    • Abductors must generate high force to balance. Hip forces free body diagram
  • Pauwels' Classification (Femoral Neck Fractures): Angle of fracture line to horizontal.
    • Type I: <30° (Stable; compression).
    • Type II: 30-50° (Less stable; shear).
    • Type III: >50° (Unstable; high shear; ↑non-union risk). Pauwels' Classification of Femoral Neck Fractures

⭐ During normal walking, the hip joint reaction force can reach 3-6 times body weight, peaking during the mid-stance phase due to dynamic loading and muscle activity.

  • Gait Cycle & Hip:
    • Stance: Heel strike (30° flex) → midstance (neutral) → toe off (10° hyperext). JRF 3-5x body weight.
    • Swing: Hip flexes for clearance.
  • Pelvic Stability:
    • Abductors (gluteus medius/minimus) crucial in single leg stance.
    • Trendelenburg Sign: Pelvic drop (swing side) if stance abductors weak.
    • Trendelenburg Gait: Trunk lean over stance limb. Trendelenburg gait vs normal gait
  • Hip OA Biomechanics:
    • ↑ Medial load, osteophytes, ↓ joint space, subchondral sclerosis.
  • THA Principles:
    • Restore: Rotation center, femoral offset, leg length.
    • Acetabular cup: Inclination ~40°±10°, Anteversion ~15°±10° (Lewinnek's zone). X-ray of THR pelvis with acetabular component angles
  • Cane Use:
    • Contralateral hand preferred.
    • ↓ Abductor force & JRF. 📌 COAS: Cane Opposite Affected Side.

⭐ Using a cane contralateral to the affected hip reduces hip JRF by counteracting body weight moment, decreasing abductor force.

High‑Yield Points - ⚡ Biggest Takeaways

  • Hip joint reaction force (JRF) is 2.5-3 times body weight during single-leg stance, increasing with activity.
  • Abductor muscles (gluteus medius & minimus) are crucial for pelvic stability during gait.
  • Trendelenburg sign/gait indicates weak hip abductors or mechanical disadvantage (e.g., coxa vara, NAI).
  • Normal femoral neck anteversion is 10-15 degrees; excessive anteversion causes in-toeing.
  • Medializing the hip center of rotation in THA ↓ JRF and abductor muscle force needed.
  • Pauwels' angle predicts femoral neck fracture stability based on fracture line orientation to the horizontal.
  • Shear forces across a femoral neck fracture ↑ with ↑ Pauwels' angle, impacting healing potential.
