Navigation and Robotics

On this page

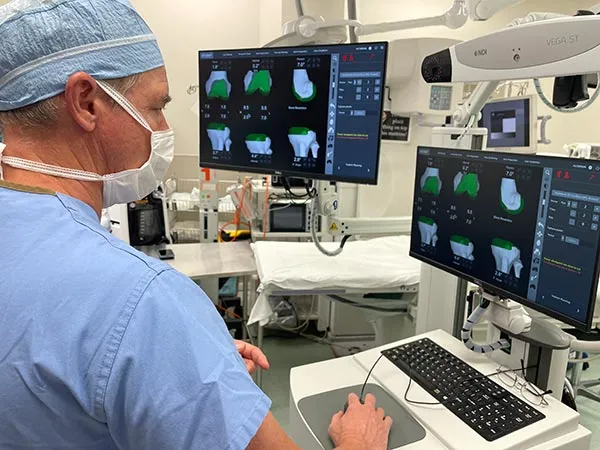

  • Navigation (CAS): Real-time image-guidance for surgical precision. Acts as a surgical GPS.
    • Core Components: Computer workstation, trackers (optical/EM), patient-specific imaging (CT/MRI/fluoro).
    • Key Process: Registration (crucial image-to-patient anatomy alignment), then real-time instrument/implant tracking.
    • Benefits: ↑Accuracy in placement, ↓radiation exposure, supports MIS.
  • Robotics: Robotic systems enhance surgeon's actions, offering superior control.
    • Types: Haptic (tactile feedback), active (autonomous tasks), shared-control (collaborative).
    • Advantages: ↑Precision, tremor filtration, improved dexterity.

⭐ Registration is the pivotal step in CAS, accurately mapping pre-operative imaging data to the patient's live anatomical position for precise surgical execution.

Orthopaedic Navigation: Systems & Workflow - Digital Eyes

  • Core: Real-time tracking of instruments/implants relative to patient anatomy for guided surgery.

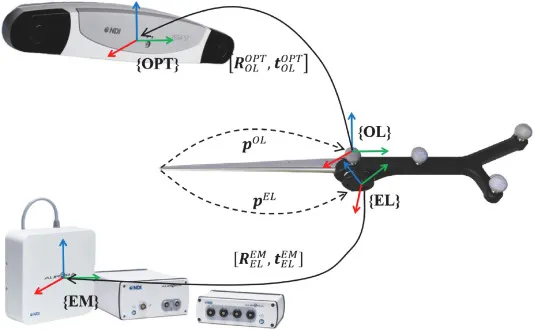

  • System Types:
    • Optical: Infrared cameras track reflective/emitting markers.
      • Active: IR-emitting markers (LEDs). Accurate, wired.
      • Passive: IR-reflecting markers. Wireless, line-of-sight needed.
    • Electromagnetic: Sensors tracked in magnetic fields. No line-of-sight issues; metallic interference.
    • CT-based: Pre-op CT for 3D plan; intra-op registration needed.
    • Fluoro-based: Uses C-arm images (2D/3D). Real-time; radiation.
    • Imageless: Uses digitized landmarks, kinematic data. Less radiation.

  • Typical Workflow:
Loading diagram…

⭐ Registration accuracy is key for navigation success (errors < 2 mm & < 2°). Links pre-op plans to intra-op reality.

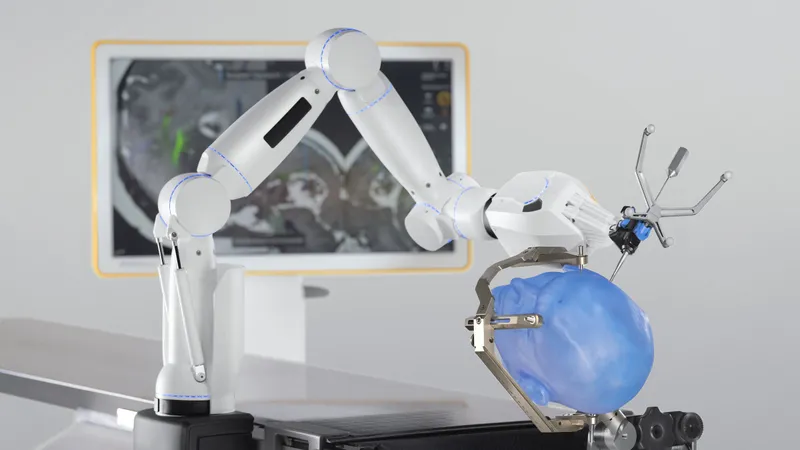

Robotic-Assisted Orthopaedics: Types & Tech - Surgeon's Smart Hand

  • Robotic Systems: Enhance surgical precision & accuracy.
    • Active: Autonomous execution of pre-planned tasks (e.g., ROBODOC for bone milling). Surgeon supervises.
    • Semi-Active (Haptic/Shared-Control): Surgeon-guided with robotic constraints & tactile feedback (e.g., MAKO, NAVIO, ROSA). Most common.
    • Passive: Instrument/camera holders; surgeon fully controls actions (advanced navigation aid).
  • Core Technology:
    • Planning: CT/MRI-based 3D models.
    • Registration: Aligning patient anatomy to plan intraoperatively.
    • Robotic Arm: Executes tasks or guides surgeon.
    • Tracking: Optical/electromagnetic systems for real-time positioning.

⭐ Semi-active robotic systems (e.g., MAKO) in arthroplasty show improved accuracy in implant positioning and limb alignment versus conventional methods.

Clinical Applications & Challenges: Real-World Impact - Precision & Pitfalls

  • Precision Benefits (Navigation & Robotics):
    • ↑ Accuracy: Implant placement (THA cup, TKA cuts), osteotomies, screw paths.
    • ↓ Complications: Reduced malpositioning, neurovascular injury risk.
    • ↓ Radiation: Key for spine procedures (surgeon/staff).
    • MIS: Facilitates smaller incisions, less tissue trauma.
  • Key Clinical Applications:
    • Arthroplasty: TKA, THA, UKA - bone cuts, component alignment, leg length.
    • Spine: Pedicle screws, cage insertion, deformity.
    • Trauma: Pelvic/acetabular #, complex intra-articular #.
    • Oncology: Tumor resection, limb salvage.
  • Pitfalls & Challenges:
    • Cost: High initial & maintenance.
    • Learning Curve: Steep; dedicated training needed.
    • Operative Time: Can be ↑ initially; registration process.
    • Registration Errors: Can propagate, affecting accuracy.
    • System Limits: Bulkiness, tech malfunction, ↓ tactile feedback (robotics).

⭐ Robotic-assisted TKA aims for mechanical axis alignment within ±3°, showing improved accuracy over conventional methods.

High‑Yield Points - ⚡ Biggest Takeaways

  • Navigation (CAS) improves implant accuracy in THR (acetabular cup) & TKR (femoral/tibial cuts).
  • Imageless navigation avoids radiation exposure unlike CT-based systems, reducing patient risk.
  • Robotic surgery offers sub-millimeter precision and aims for reproducible results.
  • Registration (e.g., point-based, surface mapping) is crucial for matching patient anatomy to the surgical plan.
  • Haptic feedback in many robotic systems guides surgeons, preventing excessive bone resection.
  • Potential benefits include reduced malalignment, improved joint kinematics, and potentially better long-term implant survivorship.
  • Key challenges include high initial cost, a steep learning curve, and potential for longer initial operative times.
