External Fixation

On this page

External Fixation Basics - Pinning It Down

  • Definition: Percutaneous pins/wires in bone, linked to an external frame for skeletal stabilization.
  • Purpose: Fracture fixation (esp. open/comminuted), soft tissue injury management, deformity correction, limb lengthening.
  • Advantages: Minimal soft tissue disruption, allows wound access, adjustability, early mobilization.
  • Disadvantages: Pin-tract infection, neurovascular injury, patient compliance issues, bulky frame, refracture risk.
  • Biomechanical Principles:
    • Stability & Stiffness: Resistance to displacement & deformation. Increased by: ↑ pin diameter/number/spread, ↓ bone-to-frame distance.
    • Load Sharing: Frame and bone share axial load (e.g., Ilizarov); promotes callus.
    • Load Bearing: Frame carries all axial load (e.g., bridging comminuted fractures); protects fracture site.

⭐ Pin-tract infection is the most common complication associated with external fixation devices.

Types of External Fixators - Frame Game Strong

  • Components: Pins/Wires (Schanz, K-wires), Clamps, Rods/Rings (carbon fibre/steel).
  • Frame Types:
TypeConfigurationStabilityKey Principle/Use
UniplanarPins in 1 planeLowSimple, rapid. Diaphyseal #s (tibia, radius).
BiplanarPins in 2 planesModerate↑ Stability. Periarticular, pelvic #s.
Circular (Ilizarov, TSF)Rings, tensioned wires. TSF: hexapod.HighLimb lengthening (Ilizarov), deformity. Complex #s.
HybridPins + wires/ringsVariableVersatile for complex periarticular #s.

⭐ Ilizarov's "tension-stress" principle enables distraction osteogenesis at ~1 mm/day.

Indications & Contraindications - When to Frame?

Indications:

  • Open fractures (esp. Gustilo-Anderson types II, III)
  • Polytrauma (Damage Control Orthopaedics - DCO)
  • Unstable pelvic fractures
  • Limb lengthening & deformity correction
  • Arthrodesis (joint fusion)
  • Infected fractures / nonunions

Contraindications:

  • Patient non-compliance
  • Severe osteoporosis (relative)
  • Active infection at proposed pin sites (if not part of treatment strategy)

Flowchart: Open Fracture Management Decision

Loading diagram…

⭐ External fixation is a cornerstone of Damage Control Orthopaedics (DCO) in polytrauma, allowing rapid stabilization with minimal physiological insult.

Application & Pin Care - Pinpoint Precision

  • Pre-op Planning: Templating, meticulous identification of neurovascular structures.

  • Pin Insertion:

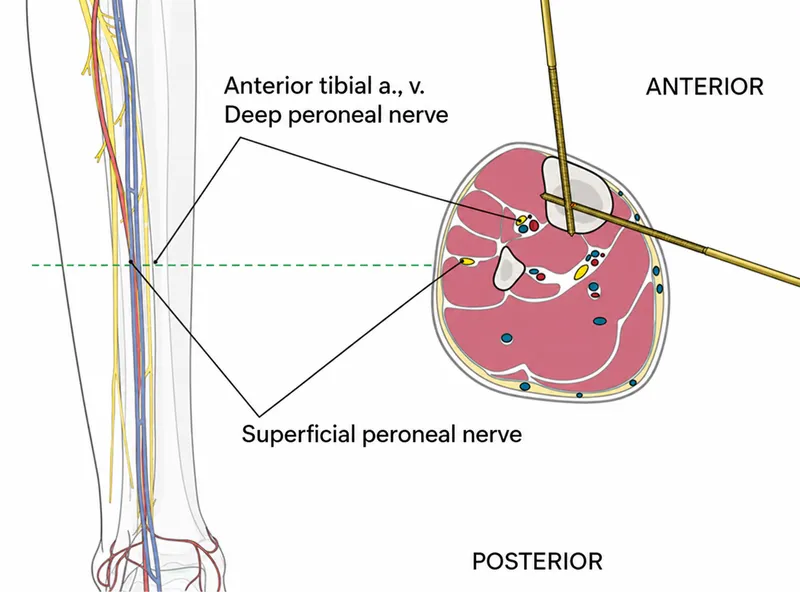

    • Safe Corridors: Tibia (anteromedial), Femur (lateral), Pelvis (iliac crest).
    • Technique: Pre-drill to prevent thermal necrosis (use sharp drill, low speed <150 rpm, copious irrigation). Ensure bicortical purchase for stability.
  • Frame Construction: Maximize stability (e.g., wide pin spread, near-far pin placement), while allowing adequate access for wound and soft tissue care.

  • Pin Site Care: Daily cleaning (e.g., Chlorhexidine 2mg/ml or 0.5% alcoholic solution).

  • ⚠️ Monitor for: Pin loosening (toggling, pain on micromotion), erythema, warmth, purulent discharge (early infection signs).

⭐ Pin tract infection is the most common complication of external fixation; meticulous and regular pin site care is paramount to prevention and early management.

Complications & Management - Trouble Shooters

ComplicationPreventionManagement
Pin Tract InfectionSterile technique, pin careAntibiotics (Checketts-Otterburns), debridement
Pin Loosening/BreakageCorrect insertion, avoid stressReplace pin, adjust frame
Neurovascular InjurySafe corridors, careful drillingExplore, repair
Muscle/Tendon ImpingeAnatomical placementReposition pin, release
Delayed/NonunionStable fixation, early weight-bearingBone graft, dynamize, revise
MalunionAnatomic reduction, X-ray checksCorrective osteotomy
Refracture (post-removal)Gradual dynamization, protect WBRecast/re-fixate
Joint StiffnessEarly ROM, proper pin placementPhysiotherapy, MUA, surgical release

High‑Yield Points - ⚡ Biggest Takeaways

  • Primary use: severe open fractures (Gustilo III), pelvic injuries, polytrauma, damage control.
  • Advantages: minimal soft tissue disruption, wound access, early mobilization, adjustability.
  • Pin tract infection is the most common complication; meticulous pin care is vital.
  • Ilizarov (circular) frames enable distraction osteogenesis and complex deformity correction.
  • Frame stability relies on pin characteristics (diameter, number, spread) and frame configuration.
  • Remove after sufficient bony union to avoid stress shielding and refracture.
