Cavus Foot: Definition & Anatomy - High Arches, Hidden Issues

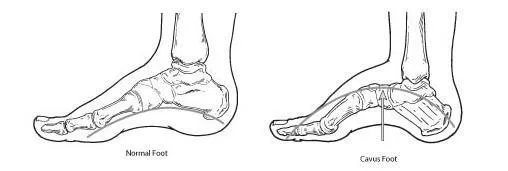

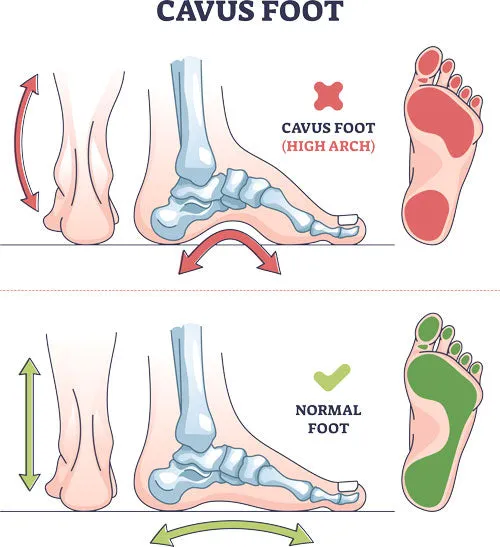

  • Definition: Complex foot deformity with an abnormally high medial longitudinal arch; can be flexible or rigid.
  • **Key Anatomical Features (Triplanar Deformity):
    • Hindfoot: Varus (most common), ↑ calcaneal pitch angle.
    • Midfoot: Adduction, plantarflexion of first ray (creates cavus).
    • Forefoot: Adduction, pronation (compensatory), claw toes (MTPJ extension, IPJ flexion).
  • Terminology: Pes cavus, talipes cavus, high-arched foot.

⭐ The Coleman block test is essential to differentiate between forefoot-driven and hindfoot-driven cavus, guiding treatment decisions by assessing hindfoot flexibility when the first metatarsal is allowed to drop off the edge of a block.

Cavus Foot: Etiology & Pathomechanics - Why the Arch?

  • Etiology (Often Neuromuscular):
    • Neurological (Most Common):
      • Charcot-Marie-Tooth (CMT) (📌 Cavus Mostly Together)
      • Friedreich's Ataxia, Spinal Dysraphism, Polio
    • Other: Trauma (e.g., compartment syndrome, malunion), Congenital, Idiopathic
  • Pathomechanics (Muscle Imbalance):
    • Forefoot Driven: Peroneus Longus (PL) overpowers Tibialis Anterior (TA) → 1st ray plantarflexion.
    • Hindfoot Driven: Tibialis Posterior (TP) overpowers Peroneus Brevis (PB) → Hindfoot varus.
    • Intrinsic Imbalance: → Claw toes.
    • Result: ↑ Arch, rigid foot, ↓ shock absorption.

    ⭐ The Coleman block test helps differentiate flexible hindfoot varus (corrects with block) from rigid hindfoot varus in cavus foot, guiding surgical planning by assessing forefoot-driven deformity contribution to hindfoot varus.

Cavus Foot: Clinical Assessment - Spotting the Signs

  • History: Onset (congenital/acquired), progression, pain (location, character), instability, family history (e.g., Charcot-Marie-Tooth disease), footwear issues.
  • Observation:
    • High arch (medial longitudinal).
    • Hindfoot: Varus ("peek-a-boo" sign), increased calcaneal pitch.
    • Forefoot: Adduction, pronation, plantarflexed 1st ray.
    • Toes: Clawing. Callosities (lateral border, metatarsal heads).
  • Gait: Lateral weight-bearing, ankle instability.
  • Key Tests:
    • Coleman Block Test: Assesses hindfoot flexibility.
    • Thorough neurological examination (essential for etiology).

⭐ The Coleman block test is crucial: it differentiates a flexible hindfoot (corrects with block under lateral forefoot) from a rigid deformity, guiding surgical strategy.

Loading diagram…

Cavus Foot: Imaging & Classification - X-Ray Vision

  • X-Rays (Weight-Bearing):
    • Lateral View:
      • ↑ Meary's Angle: >4° (Talus-1st MT) - apex dorsal.
      • ↑ Hibb's Angle: >45° (Calcaneus-1st MT).
      • ↑ Calcaneal Pitch: >30°.
    • AP View:
      • ↓ Kite's Angle (Talocalcaneal): <20° (hindfoot varus).
  • Coleman Block Test: Differentiates flexible forefoot-driven hindfoot varus.
  • Classification: Based on radiographic angles (severity) & deformity apex.

    ⭐ Meary's angle (talus-1st metatarsal) is key for identifying apex and severity of cavus deformity on lateral X-ray.

Cavus Foot: Management Principles - Fixing the Foot

  • Conservative: Stretching exercises, custom orthotics (e.g., UCBL, lateral wedge for forefoot/hindfoot), appropriate footwear modifications.
  • Surgical Goals: Relieve pain, improve stability, correct deformity.
    • Flexible Deformity: Plantar fascia release, tendon transfers (e.g., Peroneus Longus to Brevis, Hibbs).
    • Rigid Deformity: Bony procedures.
      • Osteotomies: Calcaneal (Dwyer), metatarsal (dorsiflexion).
      • Arthrodesis: For severe, arthritic joints (e.g., triple arthrodesis).
    • Apex of deformity guides surgical choice.
Loading diagram…

⭐ The Coleman block test helps differentiate forefoot-driven cavus (plantarflexed first ray) from hindfoot-driven cavus, guiding surgical strategy.

High‑Yield Points - ⚡ Biggest Takeaways

  • Cavus foot: high-arched foot, often from neuromuscular disorders (e.g., Charcot-Marie-Tooth).
  • Symptoms: painful callosities (metatarsal heads), claw toes, ankle instability, hindfoot varus.
  • Coleman block test: crucial for assessing hindfoot flexibility and differentiating forefoot vs. hindfoot driven deformity.
  • Radiographs: ↑ calcaneal pitch, ↑ Meary's angle, abnormal Hibb's angle.
  • Treatment: orthotics initially; surgery (osteotomies, tendon transfers) for severe cases.
  • Investigate for neurological causes (e.g., spinal dysraphism), especially if unilateral.

Unlock the full lesson and continue reading

Signup to continue reading this lesson and unlimited access questions, flashcards, AI notes, and more

Scan to download app

Scan to download
UNLOCK FREE ACCESS

Practice Questions: Cavus Foot

  1. 1. What condition is primarily diagnosed using Von Rosen's view?

    • A. Transient synovitis of the hip
    • B. Slipped capital femoral epiphysis
    • C. Perthes disease
    • D. Congenital hip dislocation
    Show answer

    Answer: D. Congenital hip dislocation

    Congenital hip dislocation - Von Rosen's view is a specialized radiographic projection for assessing developmental dysplasia of the hip, also called CDH. - Positioning the hips in extension, abduction, and internal rotation helps visualize the relationship between the femoral head and acetabulum. Slipped capital femoral epiphysis - Slipped capital femoral epiphysis is assessed using appropriate pelvic radiographs rather than Von Rosen's view. Perthes disease - Perthes disease is an avascular necrosis of the femoral head that usually presents later in childhood. - It is typically evaluated with AP pelvis and frog-leg lateral radiographs rather than Von Rosen's view. Transient synovitis of the hip - Transient synovitis of the hip is assessed clinically, with ultrasonography when indicated, rather than with Von Rosen's view.

  2. 2. Which muscles are known as 'Triceps surae'?

    • A. Tibialis anterior and posterior
    • B. Gastrocnemius and soleus
    • C. Popliteus and plantaris
    • D. Fibularis longus and brevis
    Show answer

    Answer: B. Gastrocnemius and soleus

    Gastrocnemius and soleus - Triceps surae consists of the two heads of gastrocnemius together with the soleus, collectively forming the powerful calf muscle. - These muscles converge into the calcaneal (Achilles) tendon and are prime movers of ankle plantarflexion. Tibialis anterior and posterior - Tibialis anterior dorsiflexes and inverts the foot, while tibialis posterior plantarflexes and inverts it. - Neither muscle is part of the Triceps surae, which comprises gastrocnemius and soleus. Popliteus and plantaris - Popliteus helps unlock the knee at the beginning of flexion, while plantaris weakly assists knee flexion and ankle plantarflexion. - Although both are posterior muscles, neither is part of the Triceps surae. Fibularis longus and brevis - Fibularis longus and brevis lie in the lateral compartment and evert the foot while assisting ankle plantarflexion. - Their plantarflexor action does not make them part of the Triceps surae, which consists of gastrocnemius and soleus in the posterior compartment.

  3. 3. A boy fell from a height onto his outstretched hand. The X-ray of his forearm is shown below. What is the most likely diagnosis?

    • A. Colles' fracture
    • B. Rolando fracture
    • C. Galeazzi fracture
    • D. Monteggia fracture
    Show answer

    Answer: C. Galeazzi fracture

    Galeazzi fracture - Fracture of the distal third of the radius with distal radioulnar joint (DRUJ) dislocation, commonly caused by fall on outstretched hand (FOOSH). - The ulnar head appears prominent on X-ray due to DRUJ disruption, and there's shortening of the radius relative to the ulna. Colles’ fracture is a distal radial metaphyseal fracture with dorsal angulation or displacement. Associated DRUJ injury can occur, but the radial shaft fracture displayed here is the distinguishing feature supporting Galeazzi fracture. Rolando fracture - A comminuted intra-articular fracture of the base of the first metacarpal (thumb). - Affects the carpometacarpal joint of the thumb, not the radius or DRUJ as seen in this case. Monteggia fracture - Fracture of the proximal or mid-shaft ulna with radial head dislocation at the radiocapitellar joint. - The radiocapitellar line fails to pass through the capitellum, which is not the pattern described here.

  4. 4. A 3-year-old child has windswept knee deformity, widened wrists, and costochondral beading. What is the most likely diagnosis?

    • A. Childhood rickets
    • B. Childhood scurvy
    • C. Hyperparathyroidism
    • D. Juvenile idiopathic arthritis
    Show answer

    Answer: A. Childhood rickets

    Childhood rickets is the most likely diagnosis: defective mineralisation at growing physes produces metaphyseal widening at the wrists and costochondral enlargement, termed the rachitic rosary, while weight bearing can produce windswept knees with valgus on one side and varus on the other Childhood scurvy - Childhood scurvy is caused by severe vitamin C deficiency, impairing collagen synthesis and producing bleeding gums, poor wound healing, and perifollicular hemorrhages. - Although scurvy affects bone and connective tissue, it does not typically produce the characteristic windswept knee deformity. Hyperparathyroidism - Hyperparathyroidism causes excessive parathyroid hormone activity, increasing bone resorption and often producing hypercalcaemia. - It may cause bone fragility and osteitis fibrosa cystica, but it does not specifically produce a windswept deformity. Juvenile idiopathic arthritis - Juvenile idiopathic arthritis causes persistent inflammatory joint swelling and restricted movement; it does not explain the combination of widened wrists and costochondral beading characteristic of rickets

  5. 5. Among the following complications, which is most common after carpal tunnel release?

    • A. Median nerve injury
    • B. Wound infection
    • C. Flexor tendon injury
    • D. Finger stiffness
    Show answer

    Answer: D. Finger stiffness

    Finger stiffness is the most common of the listed complications and can follow postoperative pain, swelling, or reduced mobilisation; this comparison does not rank it above scar tenderness or pillar pain overall. Median nerve injury is a recognized but uncommon operative complication. Wound infection is a recognized but uncommon postoperative complication. Flexor tendon injury is an uncommon iatrogenic complication rather than the usual postoperative problem.

  6. 6. Commonest ligament injured in ankle injury ?

    • A. Anterior talofibular ligament
    • B. Posterior talofibular ligament
    • C. Plantar calcaneonavicular ligament
    • D. Calcaneofibular ligament
    Show answer

    Answer: A. Anterior talofibular ligament

    Anterior talofibular ligament - The anterior talofibular ligament (ATFL) is the most frequently injured ankle ligament because it is relatively weak and commonly stressed during inversion injuries. - Its anatomical position makes it vulnerable when the foot rolls inward, the typical mechanism for common lateral ankle sprains. Posterior talofibular ligament - The posterior talofibular ligament (PTFL) is the strongest lateral ankle ligament and is rarely injured in an isolated ankle sprain. - PTFL injury usually indicates a severe sprain with substantial talar displacement or ankle dislocation, rather than the commonest injury. Plantar calcaneonavicular ligament - The plantar calcaneonavicular ligament, or spring ligament, lies on the medial foot and supports the medial longitudinal arch. - It is not primarily involved in typical ankle sprains, which usually injure the lateral collateral ligaments. Calcaneofibular ligament - The calcaneofibular ligament (CFL) is stronger than the ATFL and is generally injured by more severe inversion forces. - Although CFL rupture may accompany ATFL injury, it is not the most commonly injured ligament in ankle sprains.

  7. 7. In an infant with idiopathic CTEV successfully corrected by the Ponseti method, which splint is used to maintain correction and prevent relapse?

    • A. Thomas knee splint
    • B. Denis Browne splint
    • C. Bohler-Brown splint
    • D. Ankle-foot orthosis
    Show answer

    Answer: B. Denis Browne splint

    Denis Browne splint - After Ponseti correction, a Denis Browne-type foot-abduction brace maintains the corrected foot in abduction and dorsiflexion and reduces relapse. Its shoes are connected by a bar; an isolated ankle-foot orthosis does not maintain the required abduction. Ankle-foot orthosis - An ankle-foot orthosis does not provide the foot abduction required for standard relapse prevention after Ponseti correction. Thomas knee splint - A Thomas knee splint is used for lower-limb fracture immobilisation or traction, not maintenance of Ponseti correction. Bohler-Brown splint - A Bohler-Brown splint is used for lower-limb fracture immobilisation or traction, not maintenance of Ponseti correction.

  8. 8. Which of the following does NOT favor typical acute disseminated encephalomyelitis (ADEM) over relapsing–remitting multiple sclerosis?

    • A. Encephalopathy during the acute illness
    • B. Monophasic demyelinating presentation
    • C. Marked resolution of large, ill-defined MRI lesions
    • D. Involvement of both brainstem and spinal cord
    Show answer

    Answer: D. Involvement of both brainstem and spinal cord

    Correct answer: C. Brainstem and spinal cord involvement can occur in both ADEM and MS and does not, by itself, favor ADEM. A monophasic course, substantial resolution of large poorly demarcated MRI lesions, and encephalopathy accompanying the acute illness favor typical ADEM over relapsing–remitting MS. These distinctions follow the clinical and imaging descriptions in Harrison’s Principles of Internal Medicine; they are supportive features rather than individually absolute diagnostic rules.

  9. 9. A 3-year-old boy falls from a roof and lands on his feet. What is the Salter–Harris type of the distal tibial fracture illustrated?

    • A. Type III
    • B. Type II
    • C. Type V
    • D. Type I
    Show answer

    Answer: B. Type II

    Type II is correct because the diagram shows separation through the physis with extension into the metaphysis, producing a triangular Thurston–Holland fragment while sparing the epiphysis. Type III would extend into the epiphysis and articular surface while sparing the metaphysis, which is not shown. Type V is a physeal compression injury rather than the displaced separation with a metaphyseal fragment illustrated here. Type I is confined to the physis and would not produce the visible metaphyseal fragment.

  10. 10. High stepping gait is due to

    • A. Gluteus maximum paralysis
    • B. CDH
    • C. Quadriceps paralysis
    • D. Foot drop
    Show answer

    Answer: D. Foot drop

    Foot drop - Foot drop causes the patient to lift the leg higher during walking to prevent the toes from dragging, producing a high stepping gait. - It results from weakness or paralysis of the ankle dorsiflexors, commonly due to peroneal nerve injury or L4/L5 radiculopathy. Gluteus maximum paralysis - Gluteus maximus paralysis causes difficulty with hip extension, often compensated by a backward trunk lurch during gait. - It may cause instability during standing; a Trendelenburg gait is associated with gluteus medius involvement, not isolated high stepping. Quadriceps paralysis - Quadriceps paralysis causes weakness or inability to extend the knee, impairing knee stability during stance. - Patients compensate by hyperextending the knee or leaning forward over the affected leg, rather than lifting the leg in a high stepping gait. CDH - Congenital hip dysplasia (CDH) involves abnormal development and instability of the hip joint, rather than weakness of ankle dorsiflexion. - It usually produces a waddling gait, pain, or limb-length discrepancy, not the toe-clearance compensation of a high stepping gait.

Flashcards: Cavus Foot

  1. 1. Hallux valgus leads to overriding of the _____ toe and prominence of the _____ MTP head

    Show answer

    2nd · 1st

  2. 2. The tibial nerve is commonly injured due to:- _____ trauma- _____ (proximal lesion) - _____ (distal lesion)

    Show answer

    knee · Baker cyst · tarsal tunnel syndrome

  3. 3. Pain on passive foot _____ is seen in _____ compartment syndrome

    Show answer

    inversion · lateral

  4. 4. Mallet toe is characterised by flexion deformity of the  joint (similar to mallet finger).

    Show answer

    distal IP

  5. 5. What structural foot abnormalities are associated with Charcot-Marie-Tooth disease? _____ and _____

    Show answer

    Pes cavus · hammer toes

  6. 6. _____ screw is a type of modified cancellous screw with a sharp-pointed tip

    Show answer

    Malleolar

  7. 7. Foot drop is characterized by a foot that is _____ and _____ at rest.

    Show answer

    inverted · plantarflexed

  8. 8. _____ is characterized by sharp _____ pain that is worse in the _____

    Show answer

    Plantar fasciitis · heel · morning
