Introduction & Principles - Print Perfect Bones

3D printing, or Additive Manufacturing (AM), creates patient-specific orthopaedic implants and surgical guides from digital models (CT/MRI scans). This allows for complex geometries, aiming for reduced OR time and improved surgical accuracy.

Loading diagram…

  • Process: Layer-by-layer material deposition (e.g., SLS, FDM, DMLS).
  • Input: CT/MRI data converted to STL (Standard Tessellation Language) files.
  • Design: Using CAD (Computer-Aided Design) software.
  • Benefits: High patient-specificity, fabrication of intricate structures, potential for ↓OR time & ↑accuracy.

⭐ STL (Standard Tessellation Language) is the most common file format used to convert 3D CAD models into data for 3D printers.

Materials & Anatomical Models - Crafty Cartilage Creators

  • Key 3D Printing Materials:
    • Metals: Titanium alloys (e.g., Ti6Al4V - strong, biocompatible), Co-Cr alloys (wear-resistant for joints).
    • Polymers: PEEK (bone-like modulus, radiolucent for cages), PLA (biodegradable scaffolds).
    • Ceramics: Hydroxyapatite (HA - osteoconductive, for implant coatings).
    • Bio-inks: Hydrogels with cells for tissue engineering (e.g., cartilage).
  • Anatomical Models:
    • Patient-specific physical replicas from CT/MRI data.
    • Uses: Surgical planning, procedure simulation, education, patient communication.

⭐ Titanium alloys, particularly Ti6Al4V, are extensively used for 3D-printed orthopaedic implants due to their excellent biocompatibility, corrosion resistance, and mechanical strength similar to bone.

Patient-Specific Solutions - Custom Cut Cures

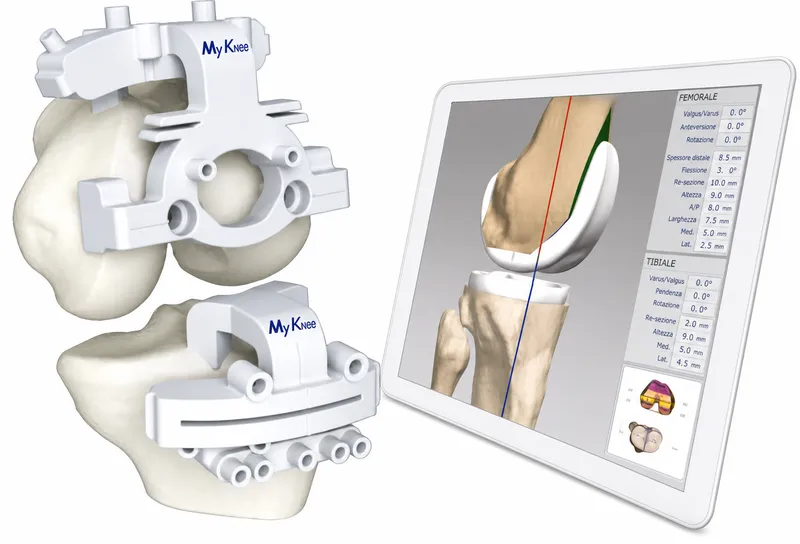

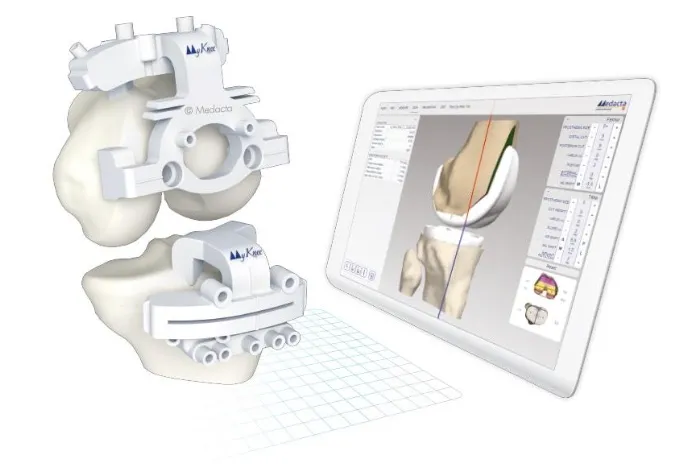

  • Patient-Specific Instruments (PSIs): Custom-made surgical guides, 3D printed from patient's CT/MRI scans.
    • Key Applications:
      • Total Knee Arthroplasty (TKA): For precise femoral & tibial cuts.
      • Total Hip Arthroplasty (THA): Aids acetabular cup & femoral stem positioning.
      • Spine Surgery: Improves accuracy of pedicle screw placement.
    • Advantages: ↑Surgical precision, potentially ↓operative time, ↓instrument trays.
  • Custom Implants: Individually designed implants for complex anatomical challenges.
    • Trauma:
      • Complex fractures: e.g., comminuted articular fractures, malunions.
      • Pelvic & acetabular reconstruction: For intricate defects.
    • Oncology:

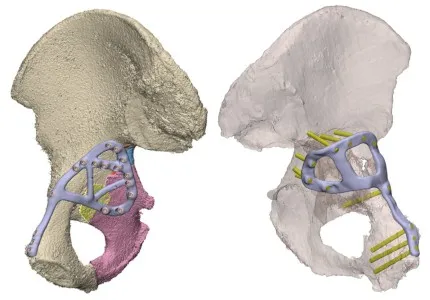

      • Tumor resection & reconstruction: e.g., limb salvage with custom megaprostheses after bone sarcoma.
    • Arthroplasty:
      • Custom acetabular components: For significant bone loss or deformity (e.g., Paprosky type III defects, protrusio acetabuli).
      • Revision components: Addressing failed previous arthroplasty.
    • Osteotomies:
      • Patient-specific cutting jigs for accurate deformity correction (e.g., high tibial osteotomy, femoral osteotomy).

⭐ 3D-printed patient-specific implants are particularly valuable in complex oncological reconstructions and revision arthroplasty where standard implants may not suffice.

Challenges & Innovations - Printing New Paths

  • Current Hurdles (Limitations):
    • High costs & manufacturing time.
    • Steep learning curve for surgeons.
    • Rigorous regulatory approval.
    • Material biocompatibility/strength constraints.
    • Limited long-term clinical data.
  • Future Horizons (Innovations):
    • Bioprinting: Tissue scaffolds with cells, growth factors.
    • 4D Printing: Implants adapting shape/function over time.
    • Point-of-Care (POC) Manufacturing: On-site implant creation.

⭐ While promising, bioprinting of functional tissues for orthopaedic applications faces significant hurdles, including achieving adequate vascularization and long-term cell viability.

High‑Yield Points - ⚡ Biggest Takeaways

  • Patient-Specific Implants (PSIs) offer superior fit and osseointegration.
  • 3D-printed surgical guides boost accuracy in osteotomies and implant placement.
  • Anatomical models are vital for pre-op planning in complex cases.
  • Common materials: Titanium alloys, PEEK, and bioabsorbable polymers.
  • Key benefits: Reduced OR time, improved precision, and better patient outcomes.
  • Widely used in complex trauma, arthroplasty, spine, and orthopaedic oncology.
  • Facilitates custom porous designs for enhanced bone ingrowth.
