Joint Biomechanics

On this page

Levers & Loads - Forceful Fun

  • Levers: Rigid bars; Fulcrum (F), Effort (E), Resistance (R).
  • 📌 FRE 123:
    • Class 1: F in middle (Triceps/Elbow extension). MA varies.
    • Class 2: R in middle (Calf raise). MA > 1.

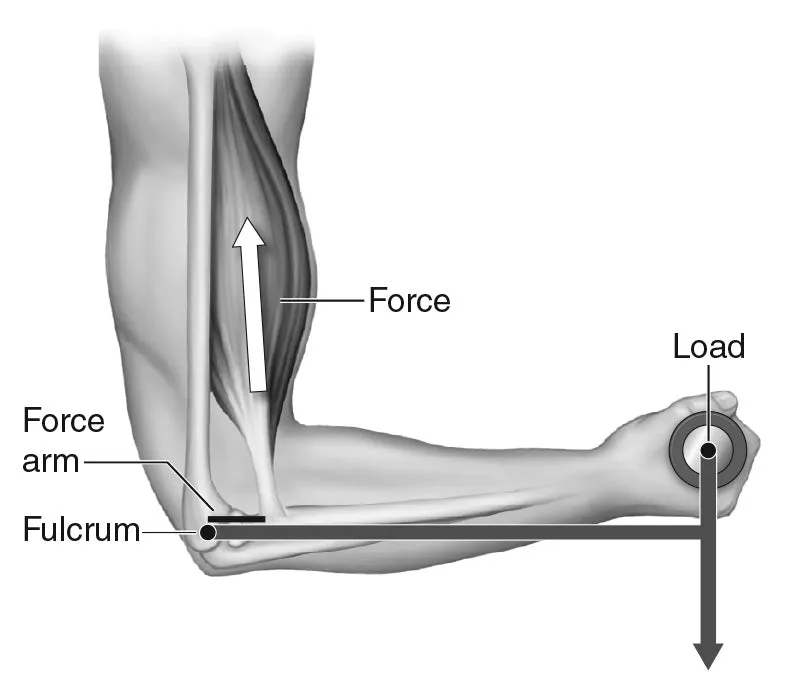

    • Class 3: E in middle (Biceps/Elbow flexion). MA < 1; ↑ROM/speed. Class 3 Lever in Human Arm
  • Loads: Forces on joints. Types: Compressive, Tensile, Shear.
  • Stress ($σ$) = $F/A$.
  • Strain ($ε$) = $ΔL/L_0$.

⭐ The most common type of lever in the human body is Class 3.

Joint Junctions - Motion Masters

  • Joint Classification:
    • Synarthrosis: Immovable (e.g., skull sutures).
    • Amphiarthrosis: Slightly movable (e.g., pubic symphysis, intervertebral discs).
    • Diarthrosis (Synovial): Freely movable. Key features: articular (hyaline) cartilage, joint capsule, synovial membrane & fluid.
  • Synovial Joint Types & Axes:

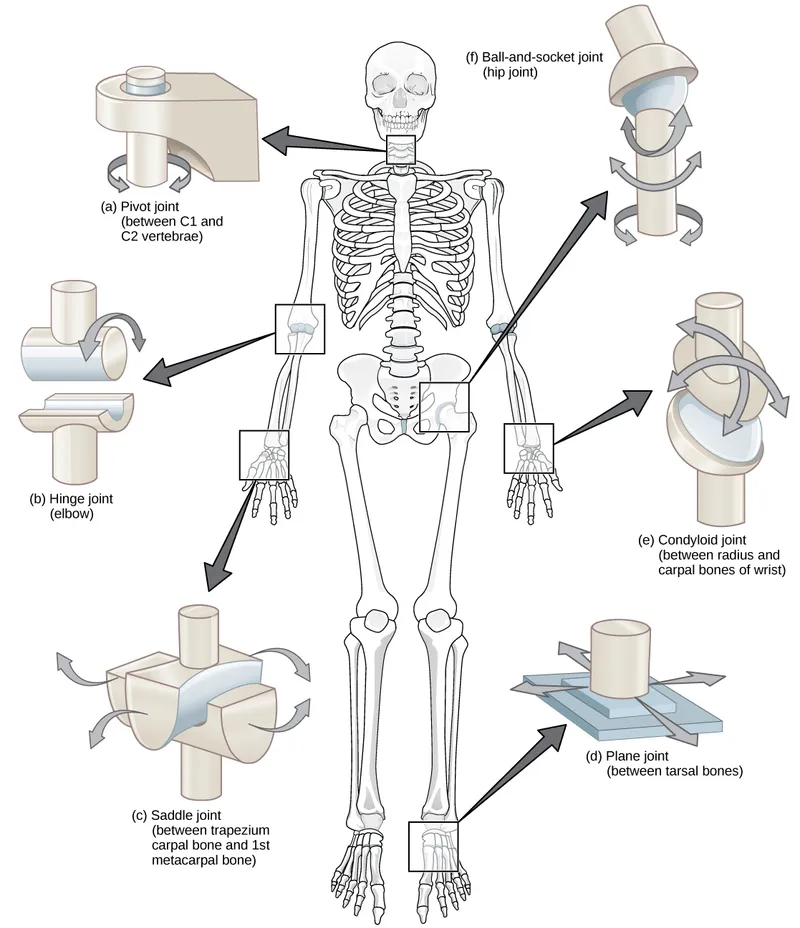

    • Plane (non-axial), Hinge (uniaxial), Pivot (uniaxial), Condyloid (biaxial), Saddle (biaxial), Ball-and-socket (multiaxial). Types of Synovial Joints and Axes of Motion
  • Joint Kinematics:
    • Osteokinematics: Physiological motion of bones (e.g., flexion, extension, abduction).
    • Arthrokinematics: Accessory motions at joint surfaces.

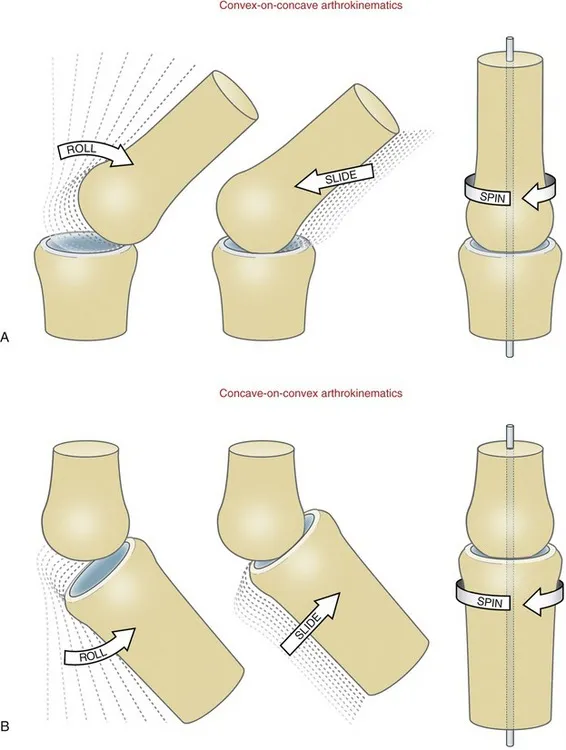

      • Roll, Slide (Glide), Spin. Arthrokinematics: roll, slide, and spin

⭐ Convex-Concave Rule: Convex on concave: roll & slide opposite. Concave on convex: roll & slide same direction.

Cartilage & Cushions - Smooth Operators

Articular (hyaline) cartilage: smooth, low-friction, shock-absorbing surface in synovial joints.

  • Composition:
    • Water: 70-80% by weight.
    • Cells: Chondrocytes (maintain ECM).
    • ECM: Type II collagen (tensile strength), Aggrecan (compressive stiffness, binds water).
  • Structure (Zones): 📌 Superficial Tangential Deep Calcified (STDC).
    • Superficial: Collagen parallel, resists shear.
    • Transitional: Random collagen.
    • Deep: Collagen perpendicular, resists compression. Tidemark separates from calcified zone. Articular cartilage zones and structure
  • Properties: Avascular, aneural, alymphatic (limited repair). Nutrition via synovial fluid. Low friction coefficient (e.g., 0.002-0.02). Viscoelastic (creep, stress relaxation).
  • Lubrication Mechanisms:
    • Boundary: Lubricin (PRG4) coats surfaces.

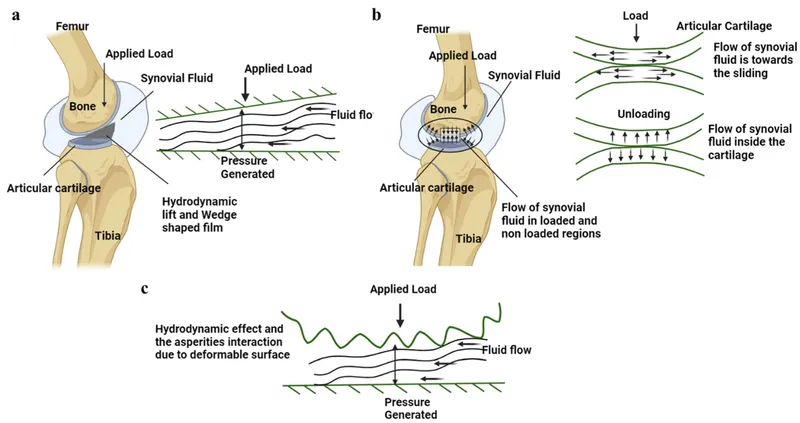

    • Fluid Film: Weeping, elastohydrodynamic, boosted. Joint Lubrication Mechanisms Diagram

⭐ Aggrecan is the major proteoglycan in articular cartilage, responsible for its compressive stiffness.

Soft Tissue Supports - Elastic Enablers

  • Ligaments & Tendons: Viscoelastic; vital for joint stability & motion.
    • 📌 Mnemonic: Ligaments Bind Bones (LBB); Tendons Marry Muscles to Bones (TMB).
    • Composition: Primarily Type I collagen, elastin.

      ⭐ Ligaments and tendons are primarily composed of Type I collagen.

    • Biomechanics: Show creep (deformation at constant load) & stress relaxation (stress ↓ at constant deformation).
    • Stress-Strain Curve:
      • Toe region: Collagen crimp straightens.
      • Linear region: Elastic deformation.
      • Failure region: Microscopic to macroscopic tears.
    • Ligaments: Bone-to-bone; stability. Failure strain 20-25%.
    • Tendons: Muscle-to-bone; transmit force. Stronger, less extensible. Failure strain 8-15%.
  • Synovial Fluid:
    • Functions: Lubrication (hyaluronan, lubricin), nutrition, shock absorption.
    • Nature: Non-Newtonian (viscosity ↓ with ↑ shear rate).

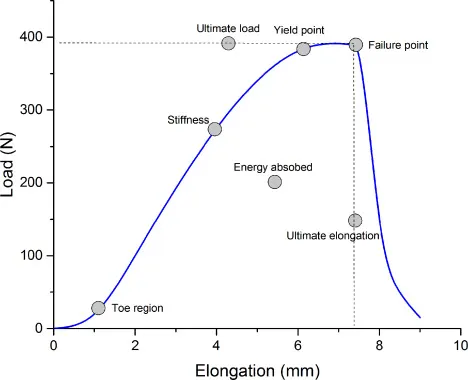

Ligament/Tendon Stress-Strain Curve

High‑Yield Points - ⚡ Biggest Takeaways

  • Stress-Strain Curve defines material behavior; Wolff's Law dictates bone remodeling under stress.
  • Synovial joints have ultra-low friction due to hyaline cartilage and synovial fluid.
  • Musculoskeletal system mainly uses Class 3 levers, favoring speed/range over force.
  • Viscoelasticity (creep, stress relaxation) is vital for soft tissue function (e.g., tendons, ligaments).
  • Joint Reaction Force (JRF) is the net force acting across a joint during activity.
  • Normal gait cycle consists of 60% stance phase and 40% swing phase.
