Vertical Deviations

On this page

Vertical Deviations: Anatomy & Assessment - Eye Muscle Gymnastics

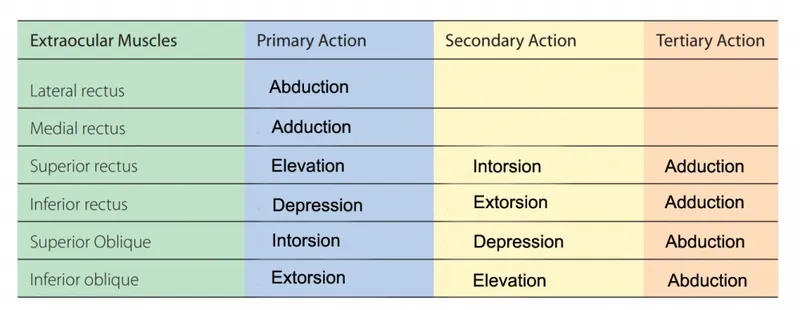

  • Vertical Muscles & Actions:
    • SR: Elevation, Adduction, Incyclotorsion.
    • IR: Depression, Adduction, Excyclotorsion.
    • SO: Incyclotorsion, Depression, Abduction.
    • IO: Excyclotorsion, Elevation, Abduction.
    • 📌 Mnemonic: SIN-RAD (Superiors Intort; Recti Adduct).
  • Assessment:
    • Cover Tests: Detect tropias (cover-uncover), measure total deviation (alternate cover).
    • Versions/Ductions: Binocular movements (cardinal gazes); monocular muscle function.
    • Parks-Bielschowsky 3-Step Test: Isolates paretic cyclovertical muscle.
        1. Hypertropia in primary?
        1. Worse in R/L gaze?
        1. Worse in R/L head tilt?
    • Subjective: Maddox Rod, Hess Chart.

⭐ The Parks-Bielschowsky 3-Step Test is key for diagnosing isolated cyclovertical muscle palsies, like Superior Oblique palsy.

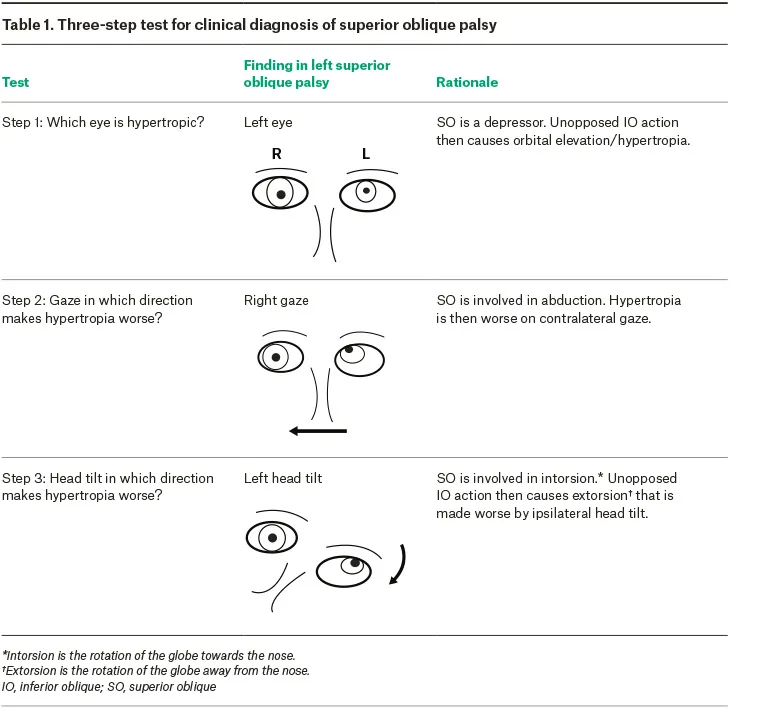

Vertical Deviations: Parks-Bielschowsky Test - The 3-Step Tilt Solver

Diagnostic algorithm to isolate a single paretic cyclovertical muscle.

  • Step 1: Primary Hypertropia
    • Which eye is higher? Narrows to 4 muscles (e.g., R hyper: RSO, RIR, LIO, LSR).
  • Step 2: Gaze Worsening
    • Hypertropia ↑ in R/L gaze? Narrows to 2 muscles (e.g., R hyper ↑ L gaze: RSO or LSR).
  • Step 3: Bielschowsky Head Tilt
    • Hypertropia ↑ with R/L head tilt? Isolates 1 muscle.
      • SO palsy: ↑ hypertropia on tilt to same side.
      • IO palsy: ↑ hypertropia on tilt to opposite side.
Loading diagram…

⭐ SO palsy: characteristic head tilt to opposite shoulder to minimize diplopia.

📌 SO-S: Superior Oblique palsy worsens with head tilt to Same Side.

Vertical Deviations: Key Cyclovertical Palsies - Palsy Parade Puzzlers

Vertical misalignments from cyclovertical muscle paresis. Parks-Bielschowsky 3-step test aids diagnosis.

  • Superior Oblique (SO) / CN IV Palsy: Most frequent.

    • Etiology: Congenital (commonest), Trauma (commonest acquired).
    • Features: Ipsilateral Hypertropia (HT), which:
      • ↑ in contralateral gaze.
      • ↑ on ipsilateral head tilt (Bielschowsky positive).
    • Compensatory Head Posture (CHP): Contralateral head tilt, chin down, face turn away.
    • Excyclotorsion.
    • 📌 SO actions: Intorsion, Depression, Abduction (IDA).
  • Inferior Rectus (IR) Palsy: Ipsilateral HT, worse on downgaze in abduction. Often with orbital floor 'blowout' fractures.

  • Other palsies: IO (Ipsilateral Hypotropia), SR (Ipsilateral Hypotropia).

⭐ CN IV palsy often causes torsional diplopia (excyclotorsion), especially on reading.

Vertical Deviations: Special Syndromes & DVD - Oddball Eye Drifts

  • Dissociated Vertical Deviation (DVD)
    • Spontaneous, slow upward drift of one eye when covered or inattentive; also extorts & abducts.
    • No corresponding hypotropia in fellow eye (violates Hering's Law).
    • Often bilateral, asymmetric; associated with infantile esotropia, latent nystagmus.
    • Bielschowsky dark wedge filter test: induces upward drift.

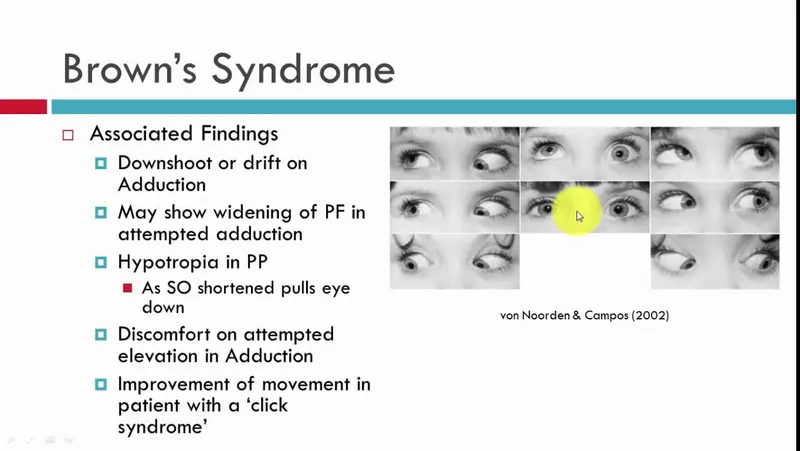

  • Brown Syndrome
    • Limited elevation in adduction (eye cannot look "up and in").
    • Cause: tight/short superior oblique (SO) tendon or trochlear anomaly.
    • May have V-pattern strabismus, audible "click" on upgaze.
    • 📌 Brown's = Bad Boy SO (superior oblique).
  • Other Restrictive Causes
    • Thyroid Eye Disease (TED): Inferior rectus restriction commonest, causing hypotropia & limited elevation.
    • Orbital Floor Fracture: Entrapment of inferior rectus/orbital tissues limits elevation.

⭐ In Brown Syndrome, forced duction testing is positive for restriction of elevation in adduction, differentiating it from SO palsy where FDT is negative for restriction in that field of gaze (though may be positive for SO tendon laxity).

High‑Yield Points - ⚡ Biggest Takeaways

  • Parks-Bielschowsky 3-step test diagnoses superior oblique (SO) palsy; note head tilt away from lesion.
  • Brown syndrome: limited elevation in adduction, positive forced duction test.
  • Double elevator palsy: monocular elevation deficit, often with chin-up head posture.
  • Inferior oblique overaction (IOOA) commonly causes V-pattern strabismus.
  • Superior oblique overaction (SOOA) commonly causes A-pattern strabismus.
  • Dissociated Vertical Deviation (DVD): upward/outward drift of non-fixing eye, often bilateral.
  • Skew deviation: vertical misalignment from brainstem lesion, part of ocular tilt reaction (OTR).

Unlock the full lesson and continue reading

Signup to continue reading this lesson and unlimited access questions, flashcards, AI notes, and more

Scan to download app

Scan to download
UNLOCK FREE ACCESS

Practice Questions: Vertical Deviations

  1. 1. A 48-year-old woman presents with conductive hearing loss and pulsatile tinnitus for 6 months. What is the most likely diagnosis on the CT scan shown?

    • A. Glomus jugulare
    • B. Glomus tympanicum
    • C. Acoustic neuroma
    • D. Otosclerosis
    Show answer

    Answer: A. Glomus jugulare

    Glomus jugulare is the best answer because the CT shows a left jugular-foraminal mass with adjacent bone involvement, fitting the conductive hearing loss and pulsatile tinnitus. Glomus tympanicum originates on the cochlear promontory and is primarily a middle-ear lesion rather than a jugular-foraminal mass. Otosclerosis affects the otic capsule and stapes footplate and does not produce this jugular-foraminal mass. Acoustic neuroma arises in the internal auditory canal or cerebellopontine angle and typically causes sensorineural rather than conductive hearing loss.

  2. 2. Which of the following is NOT typically seen in a third nerve palsy?

    • A. Exotropia
    • B. Diplopia
    • C. Ptosis
    • D. Miosis
    Show answer

    Answer: D. Miosis

    Miosis - Miosis is not typical because third nerve damage interrupts parasympathetic fibers from the Edinger–Westphal nucleus that normally constrict the pupil. - Pupillary parasympathetic loss instead causes mydriasis and loss of the light reflex, making miosis the incorrect finding. Ptosis - Ptosis occurs because third nerve palsy paralyzes the levator palpebrae superioris, producing typically complete, curtain-like drooping of the upper eyelid. - This finding fits loss of oculomotor motor function and is a characteristic feature of third nerve palsy, rather than an exclusion criterion. Exotropia - Outward deviation occurs when the medial, superior, and inferior recti are paralyzed, leaving the lateral rectus and superior oblique relatively unopposed. - The resulting down-and-out position reflects the characteristic ocular misalignment of third nerve palsy, so this option is typically seen. Diplopia - Diplopia results from ocular misalignment because paralysis of multiple extraocular muscles prevents coordinated movement of the two eyes. - Loss of balanced ocular motility in third nerve palsy produces double vision, although severe ptosis may sometimes obscure the affected eye.

  3. 3. What conditions can be diagnosed using the cover-uncover test?

    • A. Amblyopia and anisometropia
    • B. Heterophoria and aniseikonia
    • C. Pseudostrabismus and amblyopia
    • D. Strabismus and heterophoria
    Show answer

    Answer: D. Strabismus and heterophoria

    Strabismus and heterophoria can be detected using the cover-uncover test. During the cover phase, movement of the uncovered eye to take up fixation indicates manifest strabismus. During the uncover phase, a corrective movement of the previously covered eye can reveal heterophoria. Amblyopia and anisometropia are not diagnosed by this test: they require assessment of best-corrected visual acuity and refraction, respectively. Heterophoria and aniseikonia is incorrect because, although heterophoria can be detected, aniseikonia concerns unequal perceived image sizes and is not diagnosed by the cover-uncover test. Pseudostrabismus and amblyopia is incorrect because pseudostrabismus produces apparent misalignment without corresponding refixation movement, and amblyopia requires assessment of best-corrected visual acuity.

  4. 4. Where is a lesion that produces a left superior homonymous quadrantanopia ("pie in the sky" defect)?

    • A. Right optic nerve
    • B. Right temporal lobe
    • C. Right optic tract
    • D. Right parietal lobe
    Show answer

    Answer: B. Right temporal lobe

    Right temporal lobe - A right temporal lobe lesion involving Meyer’s loop interrupts inferior retinal fibers carrying the left superior visual field. - This produces a left superior homonymous quadrantanopia, classically called a “pie in the sky” defect. Right optic nerve - A right optic nerve lesion causes monocular visual loss, such as right-eye blindness or a central scotoma, rather than a defect affecting corresponding fields in both eyes. - The lesion is before the optic chiasm, so it cannot produce a left homonymous field defect involving fibers from both eyes. Right optic tract - A right optic tract lesion affects visual fibers from both eyes and causes a complete left homonymous hemianopia. - This would involve both superior and inferior left visual fields, making the defect more extensive than a quadrantanopia. Right parietal lobe - A right parietal lobe lesion affects the superior optic radiations, which carry information corresponding to the contralateral inferior visual field. - It therefore causes a left inferior homonymous quadrantanopia (“pie on the floor”), not the superior defect described.

  5. 5. Chemical labyrinthectomy by transtympanic route is done in Meniere's disease using which drug?

    • A. Amikacin
    • B. Streptomycin
    • C. Gentamicin
    • D. Tobramycin
    Show answer

    Answer: C. Gentamicin

    Gentamicin - Gentamicin is an aminoglycoside antibiotic with preferential vestibulotoxicity, making it suitable for chemical labyrinthectomy in patients with severe Ménière's disease. - When given transtympanically, gentamicin reaches the inner ear and ablates vestibular function, thereby reducing recurrent severe vertigo. Amikacin - Amikacin is an aminoglycoside with ototoxic potential, but it is not the established drug used for transtympanic chemical labyrinthectomy in Ménière's disease. - Although it may cause hearing loss, gentamicin has a more established and preferential effect on the vestibular system for this treatment. Streptomycin - Streptomycin is vestibulotoxic but is not the established transtympanic agent for chemical labyrinthectomy in Ménière’s disease Tobramycin - Tobramycin can cause ototoxicity but is not the established transtympanic agent for this procedure

  6. 6. Which disorder is characterised by predominantly 3-repeat tau inclusions in frontotemporal neurons?

    • A. Pick’s disease
    • B. Lewy body dementia
    • C. Alzheimer's disease
    • D. Progressive supranuclear palsy
    Show answer

    Answer: A. Pick’s disease

    Pick’s disease is characterised by predominantly 3-repeat tau inclusions in affected frontotemporal neurons. Alzheimer’s disease also involves tau, but its neurofibrillary tangles contain both 3-repeat and 4-repeat isoforms and coexist with amyloid-beta plaques. Progressive supranuclear palsy is predominantly a 4-repeat tauopathy, unlike the predominantly 3-repeat tau pathology of Pick’s disease. Lewy body dementia is defined by alpha-synuclein-containing Lewy bodies rather than predominantly 3-repeat tau inclusions.

  7. 7. Bilateral ptosis is a recognised feature of all of the following EXCEPT:

    • A. Traumatic injury
    • B. Graves' disease
    • C. Congenital ptosis
    • D. Myotonic dystrophy
    Show answer

    Answer: B. Graves' disease

    Graves' disease - Hyperthyroidism classically causes lid retraction, producing stare and lid lag rather than bilateral ptosis. - Although Graves' ophthalmopathy may cause proptosis and conjunctival injection, it does not typically manifest as ptosis, making this the exception. Traumatic injury - Trauma can produce ptosis when the levator muscle, its aponeurosis, or the third cranial nerve is damaged. - Extensive head trauma may affect both sides, making bilateral traumatic ptosis a recognized presentation rather than an exclusion. Congenital ptosis - Congenital ptosis usually results from improper development of the levator palpebrae superioris muscle. - It may be bilateral and is often isolated, without associated systemic symptoms, so it fits the pattern described. Myotonic dystrophy - Myotonic dystrophy is a hereditary muscle disorder causing progressive muscle weakness and can involve both eyelids. - Bilateral ptosis is a common early sign and may accompany facial weakness and myotonia, supporting this option as a cause.

  8. 8. Ataxia, nystagmus, and ophthalmoplegia are seen in which of the following conditions?

    • A. Oculomotor (third) nerve palsy
    • B. Autoimmune myasthenia gravis
    • C. Acute Wernicke encephalopathy
    • D. Progressive external ophthalmoplegia
    Show answer

    Answer: C. Acute Wernicke encephalopathy

    Acute Wernicke encephalopathy - Wernicke encephalopathy classically causes altered mental status, gait ataxia, and ocular motor abnormalities, including nystagmus and ophthalmoplegia. - It results from thiamine (vitamin B1) deficiency, commonly associated with chronic alcohol use or severe malnutrition. Progressive external ophthalmoplegia - Progressive external ophthalmoplegia is a mitochondrial disorder causing slowly progressive weakness of the extraocular muscles, with bilateral ptosis and restricted eye movements. - It does not typically produce the combined neurologic findings of ataxia and nystagmus, which distinguish Wernicke encephalopathy from an isolated ophthalmoplegia syndrome. Autoimmune myasthenia gravis - Autoimmune myasthenia gravis is an autoimmune neuromuscular-junction disorder causing fluctuating weakness that worsens with activity, often with ptosis and diplopia. - Although it may cause ophthalmoplegia, it does not typically cause cerebellar signs such as ataxia or nystagmus. Oculomotor (third) nerve palsy - Oculomotor (third) nerve palsy causes ptosis and impaired upward, downward, or medial eye movements; pupillary dilation occurs when its parasympathetic fibers are involved. - It causes usually unilateral ophthalmoplegia, but does not typically produce the combination of ataxia and nystagmus.

  9. 9. Maxillary bone does not articulate with:

    • A. Lacrimal
    • B. Frontal
    • C. Sphenoid
    • D. Ethmoid
    Show answer

    Answer: C. Sphenoid

    Sphenoid does not articulate directly with the maxilla; their orbital surfaces are separated by the inferior orbital fissure. Ethmoid articulates with the maxilla and contributes to the medial orbital wall. Lacrimal articulates with the maxilla in the lacrimal region. Frontal articulates with the frontal process of the maxilla at the frontomaxillary suture.

  10. 10. A patient with an A-pattern squint shows excessive depression in adduction. Which extraocular muscle is overacting?

    • A. Inferior oblique
    • B. Inferior rectus
    • C. Superior oblique
    • D. Superior rectus
    Show answer

    Answer: C. Superior oblique

    Superior oblique is the best answer because its overaction produces excessive depression in adduction and is classically associated with an A-pattern squint. Inferior oblique overaction produces excessive elevation in adduction and is classically associated with a V-pattern; inferior oblique weakness can contribute to an A-pattern but is not the overaction described here. Inferior rectus primarily depresses the abducted eye and does not explain excessive depression in adduction. Superior rectus primarily elevates the eye and does not explain excessive depression in adduction.

Flashcards: Vertical Deviations

  1. 1. Negative angle kappa: Pseudootropia

    Show answer

    es (es/ex)

  2. 2. Infantile squint maybe associated with dissociated _____ deviation (70%) and Latent horizontal _____

    Show answer

    vertical · nystagmus

  3. 3. In Maddox rod test (for the left eye), if the light is on the right side of the line, it is an -deviation

    Show answer

    eso

  4. 4. When the amount of deviation varies in different directions of gaze, it is said to be

    Show answer

    incomitant

  5. 5. Maddox _____ test is used to check for heterophoria for _____ vision

    Show answer

    wing · near

  6. 6. In A or V pattern heterotropia, muscle dysfunction is the commonest

    Show answer

    oblique

  7. 7. Forced duction test (FDT) is done to find out ocular muscle vs squint due to the mechanical restriction of the ocular movements.

    Show answer

    palsy

  8. 8. Measurement of fusion reserve is done using a _____ or _____

    Show answer

    synoptophore · prism bar

  9. 9. _____ test is used to approximate the angle of manifest deviation in strabismus by placement of prisms in front of the fixating eye until the corneal light reflections are symmetrical

    Show answer

    Krimsky

  10. 10. Maddox _____ test is used to check for heterophoria for _____ vision

    Show answer

    tangent · distance
