Optical Low Vision Aids

On this page

Optical LVAs: The Basics - Vision Boosters

Optical Low Vision Aids (LVAs) enhance remaining visual function for individuals with low vision.

  • Purpose: Magnify retinal image, improve contrast, or modify visual field.
  • Goal: Enable daily activities (reading, writing, face recognition).
  • Key Point: LVAs aid, not cure; maximize existing sight.
  • Prescription: Based on visual acuity, working distance, and patient goals.

⭐ Kestenbaum's Rule estimates initial dioptric power for near aids: Power (D) ≈ Reciprocal of Snellen VA (e.g., 6/60 VA ≈ 10D).

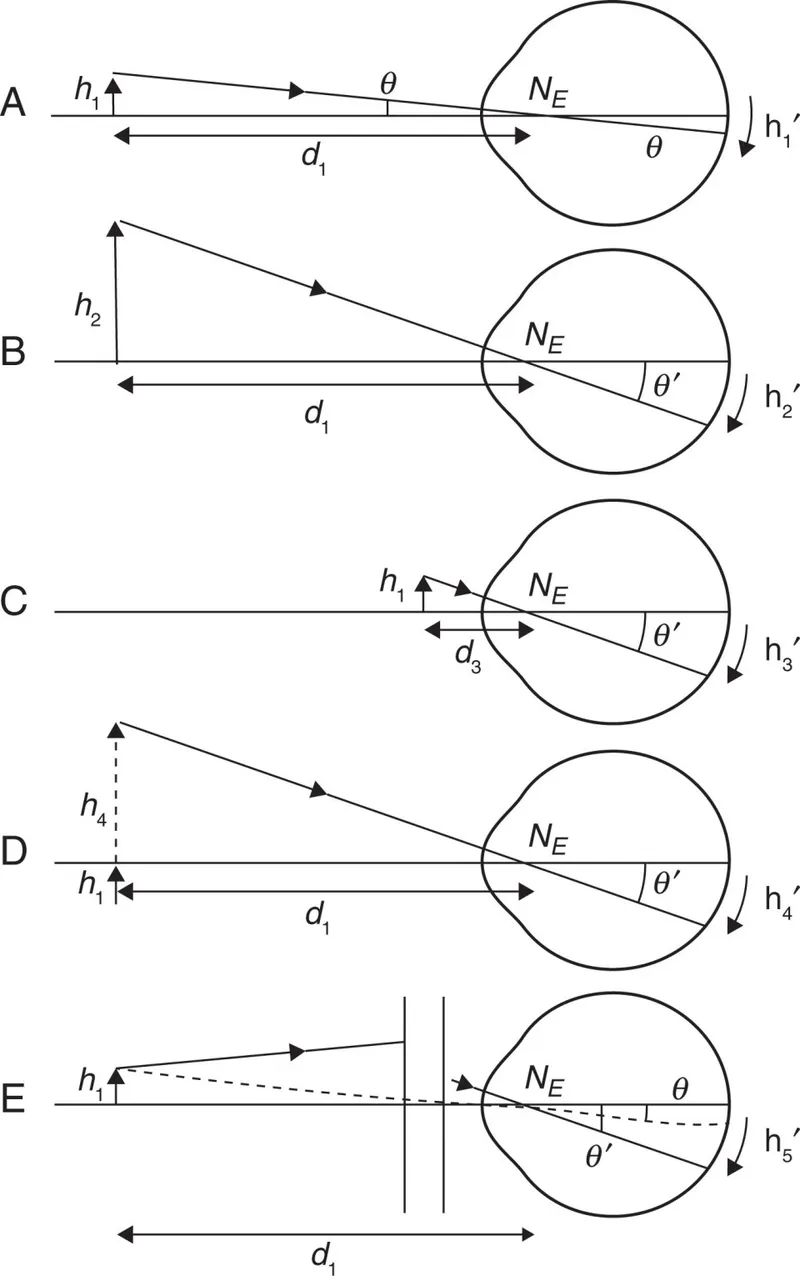

Magnification Mechanics - Sizing It Up!

  • Goal: Enlarge retinal image.
  • Types & Formulas:
    • Relative Size (RSM): Larger object. $M = \frac{\text{New Size}}{\text{Old Size}}$. (e.g., large print)
    • Relative Distance (RDM): Closer object. $M = \frac{\text{Old Distance}}{\text{New Distance}}$. (e.g., reading near)
    • Angular (AM): Optical aids (lenses). $M \approx \frac{P}{\textbf{4}}$ for simple magnifiers (P=Dioptric power).
    • Projection (PM): Electronic (CCTV). $M = \frac{\text{Image Size}}{\text{Object Size}}$.

⭐ Conventional magnification for simple magnifiers is $M = \frac{P}{\textbf{4}}$, where P is lens power in Diopters.

Near Vision Aids - Clearly Closer

Aids for near tasks magnify retinal image. Key types:

  • Principle: Angular magnification. Formula: $M = D/4$ ($D$=dioptric power).
  • 📌 Kestenbaum's Rule: Initial add (D) = Reciprocal of Snellen VA (e.g., 6/60 VA → 10D).

Aid TypeMag. ($M$) RangeWDFOVProsCons
Hand Magnifier (HM)1.5x-20xVariableModeratePortable, often lit, inexpensiveNeeds steady hand, one hand use
Stand Magnifier (SM)1.5x-20xFixedModerateStable image, good for tremors, hands-free optionBulky, fixed WD, posture issues
Spectacle Magnifier1x-12x (+4D to +48D)ShortWidestHands-free, binocular (low $M$)Very short WD (high $M$), cosmesis, aberrations
Near Telescope (NT)2x-10xLongerNarrowIncreased WD (writing, hobbies)Narrow FOV, critical focus, costly
Electronic (EVM/CCTV)Up to 60x+VariableVariableHighest $M$, contrast/polarity controlExpensive, less portable (most)

Distance Vision Aids - Far Sights Focused

  • Telescopes are primary aids for distance; available as handheld or spectacle-mounted.
  • Angular magnification ($M$): $M = \frac{P_e}{P_o}$ (Eyepiece Power / Objective Power).
FeatureGalilean TelescopeKeplerian Telescope
OpticsConvex objective, Concave eyepieceConvex objective, Convex eyepiece
ImageErect, virtualInverted, real (needs erecting system)
MagnificationLower (typically 2-4x)Higher (typically 2-8x+)
Field of ViewWiderNarrower
Size & WeightShorter, lighterLonger, heavier
UsesQuick spotting, TV viewingDetailed viewing, blackboard

⭐ Keplerian telescopes offer higher magnification but require an erecting system (e.g., prism), making them longer and heavier than Galilean telescopes of similar power.

Prescribing Pointers - Power & Precision

  • Starting Power Estimation:
    • Kestenbaum's Rule: Reciprocal of VA = Diopters (e.g., 6/60 → 10 D).
    • N-notation: (Actual N-point / Desired N-point) = Required Magnification.
  • Magnification (M) Calculation:
    • Hand/Stand Magnifiers: $M = D/4$ (D=dioptric power, assumes 25 cm reference).
    • Telescopes: Specified by angular magnification (e.g., $2X$, $4X$).
  • Key Considerations: Patient's VA, specific visual goals, preferred working distance.
  • Essential Step: Always trial aids; provide thorough training for effective use.

⭐ For telescopic aids, the prescribed power is often slightly less than the calculated ideal to achieve a wider field of view and better patient tolerance.

High‑Yield Points - ⚡ Biggest Takeaways

  • Optical LVAs achieve vision enhancement primarily through magnification.
  • Kestenbaum's rule (Dioptric power = Reciprocal of Snellen acuity) is key for spectacle magnifiers.
  • Telescopes (Galilean for wider field, Keplerian for higher power) provide angular magnification for distance.
  • Hand magnifiers offer portability; stand magnifiers ensure stable focus.
  • Higher magnification generally leads to a reduced field of view.
  • Optimal illumination is essential for maximizing LVA benefit.
  • Electronic aids (e.g., CCTVs) offer variable magnification and contrast enhancement.

Unlock the full lesson and continue reading

Signup to continue reading this lesson and unlimited access questions, flashcards, AI notes, and more

Scan to download app

Scan to download
UNLOCK FREE ACCESS

Practice Questions: Optical Low Vision Aids

  1. 1. What does a visual acuity test primarily assess?

    • A. Ability to resolve details
    • B. Ability to perceive light
    • C. Ability to differentiate colors
    • D. Ability to detect contrast
    Show answer

    Answer: A. Ability to resolve details

    Ability to resolve details - A visual acuity test, typically using a Snellen chart, measures the ability to recognize letters or symbols at a specified distance. - This assesses spatial resolution, or the sharpness of vision needed for tasks such as reading and recognizing faces. Ability to perceive light - Light perception testing determines whether a person can detect the presence or absence of light, representing the most basic level of visual function. - Visual acuity testing assesses fine detail resolution, whereas light perception is assessed separately and does not measure recognition of letters or symbols. Ability to differentiate colors - Color vision tests, such as Ishihara plates, assess the ability to differentiate colors and evaluate cone photoreceptor function. - Color differentiation identifies deficiencies such as red-green color blindness; it does not primarily measure visual sharpness or detail recognition. Ability to detect contrast - Contrast sensitivity tests assess the ability to distinguish objects from their background at different contrast levels. - Contrast detection contributes to overall visual quality but differs from high-contrast detail recognition, which is the primary focus of visual acuity testing.

  2. 2. A patient complains of an inability to read a newspaper, particularly in bright sunlight. What is the most likely diagnosis?

    • A. Nuclear cataract
    • B. Posterior subcapsular cataract
    • C. Cortical cataract
    • D. Anterior subcapsular lens cataract
    Show answer

    Answer: B. Posterior subcapsular cataract

    Posterior subcapsular cataract - Posterior subcapsular cataract causes marked glare and photophobia because the opacity lies near the posterior lens capsule, directly within the visual axis. - In bright light, pupillary constriction directs light through the central posterior opacity, producing disproportionate difficulty with reading and supporting this diagnosis. Nuclear cataract - Nuclear cataract commonly causes a myopic shift and temporary improvement in near vision. It can also worsen in bright light, so bright-light symptoms alone do not exclude it; the disproportionate reading difficulty favours posterior subcapsular cataract. Anterior subcapsular lens cataract - Anterior subcapsular lens cataract is an opacity beneath the anterior capsule, often associated with trauma or atopic disease; disproportionate reading difficulty with bright-light glare is more characteristic of posterior subcapsular cataract. Cortical cataract - Cortical cataract produces characteristic spoke-like opacities that begin peripherally and extend inward toward the visual axis. - Vision may remain relatively good until the visual axis is involved; although glare can occur, bright-light difficulty is less characteristic than in posterior subcapsular cataract.

  3. 3. Posterior staphyloma is seen in which condition?

    • A. High hypermetropia
    • B. Presbyopia
    • C. Astigmatism
    • D. High myopia
    Show answer

    Answer: D. High myopia

    High myopia - Posterior staphyloma is an outward bulging of the posterior sclera and choroid, commonly associated with high myopia. - Excessive axial elongation in severe myopia causes thinning and weakening of the posterior sclera, allowing this structural change to develop. High hypermetropia - High hypermetropia usually results from a short axial length or flat cornea, causing light to focus behind the retina; it is not typically associated with posterior staphyloma. - Its smaller axial length does not produce the posterior scleral stretching and weakening characteristic of the condition seen in high myopia. Presbyopia - Presbyopia is an age-related reduction in near accommodation caused mainly by lens hardening and reduced accommodative ability, not posterior scleral deformation. - It does not cause the axial elongation or posterior scleral changes responsible for posterior staphyloma. Astigmatism - Astigmatism results from irregular curvature of the cornea or lens, producing different refractive powers in different meridians and blurred vision. - This is an anterior optical-surface abnormality, rather than outward bulging of the posterior sclera and choroid.

  4. 4. The instrument shown below is:

    • A. Direct ophthalmoscope
    • B. Indirect ophthalmoscope
    • C. Slit lamp biomicroscope
    • D. Streak retinoscope
    Show answer

    Answer: B. Indirect ophthalmoscope

    Indirect ophthalmoscope - The head-mounted structure, converging lenses, and integrated light source are characteristic of an indirect ophthalmoscope. - An indirect ophthalmoscope provides a stereoscopic, wide-angle retinal view, commonly using a handheld condensing lens. Direct ophthalmoscope - A direct ophthalmoscope is a small handheld instrument held close to the patient’s eye, unlike the head-mounted device described here. - It provides a monocular, upright, virtual, magnified view of a relatively small retinal area, rather than the wide-angle stereoscopic view expected here. Slit lamp biomicroscope - A slit lamp biomicroscope is a large, table-mounted instrument used for high-magnification examination of the eye. - It includes an adjustable slit-shaped light beam and biomicroscope, not the head-mounted binocular arrangement described here. Streak retinoscope - A streak retinoscope objectively assesses refractive error by observing the movement of light reflected from the retina. - It does not have the head-mounted binocular viewing system or the wide-angle retinal examination function associated with this instrument.

  5. 5. What is the power of the standard handheld condensing lens commonly used for retinal examination with the instrument shown?

    • A. +30 D
    • B. +20 D
    • C. +15 D
    • D. +90 D
    Show answer

    Answer: B. +20 D

    +20 D - A +20 D lens is the standard handheld condensing lens used with a binocular indirect ophthalmoscope to examine the retina. - It forms an inverted, real aerial image and provides a practical balance of magnification, field of view, and working distance. +30 D - A +30 D lens is not the standard condensing lens for binocular indirect ophthalmoscopy; it provides lower magnification than +20 D. - Its wider field of view and shorter working distance can be useful in selected situations, but these features do not identify the standard lens. +15 D - A +15 D lens is not the standard handheld condensing lens specified for binocular indirect ophthalmoscopy; the usual lens is +20 D. - Compared with +20 D, it provides higher magnification, a narrower field of view, and a longer working distance. +90 D - A +90 D lens is not the standard condensing lens paired with a binocular indirect ophthalmoscope for routine retinal examination. - This lens is primarily used for noncontact slit-lamp fundus biomicroscopy rather than head-mounted binocular indirect ophthalmoscopy.

  6. 6. What is the usual magnification used for detailed colposcopic examination?

    • A. 1–2 times
    • B. 3–5 times
    • C. 50–100 times
    • D. 10–20 times
    Show answer

    Answer: D. 10–20 times

    10–20 times is the usual magnification used for detailed colposcopic examination, allowing assessment of epithelial changes and vascular patterns. 1–2 times provides insufficient magnification for this detailed assessment. 3–5 times is useful for low-power surveying rather than detailed examination. 50–100 times exceeds the usual magnification range of standard colposcopes.

  7. 7. Choroidal neovascularization is most commonly seen in which of the following refractive errors?

    • A. Presbyopic error
    • B. Hyperopic error
    • C. Astigmatic error
    • D. Myopic error
    Show answer

    Answer: D. Myopic error

    Myopic error - Pathologic myopia is defined by characteristic posterior-segment structural changes, such as myopic maculopathy or posterior staphyloma, rather than a refractive or axial-length threshold alone. - Mechanical stress and degenerative changes can produce ruptures in Bruch’s membrane, allowing fragile choroidal vessels to grow into the subretinal space; myopic CNV is especially important in patients under 50 years. Presbyopic error - Presbyopia is age-related loss of accommodation, chiefly from reduced crystalline lens elasticity. - It is not directly associated with choroidal or Bruch’s membrane degeneration, the changes that permit abnormal choroidal vessels to grow. Hyperopic error - Hypermetropia is generally associated with a shorter axial length, reducing the ocular elongation linked to degenerative changes predisposing to choroidal neovascularization. - Although CNV may occur through other diseases, hypermetropia itself is not a recognized refractive risk factor for CNV. Astigmatic error - Astigmatism is caused by irregular curvature of the cornea or lens, producing different refractive powers in different meridians and blurred vision. - This surface-curvature abnormality does not typically cause the choroidal thinning or Bruch’s membrane disruption associated with CNV.

  8. 8. Which of the following is NOT included in the Concurrent List (List III) of the Seventh Schedule to the Constitution of India?

    • A. Food adulteration
    • B. Vital statistics
    • C. Interstate infection control
    • D. Port quarantine
    Show answer

    Answer: D. Port quarantine

    Port quarantine belongs to Union List Entry 28 and is therefore the exception. Prevention of adulteration of food stuffs falls under Concurrent List Entry 18; Vital statistics falls under Entry 30; Prevention of extension of communicable disease from one unit to another falls under Entry 29.

  9. 9. Which finding meets the standard community-medicine criteria for an at-risk infant?

    • A. Weight above 80% of expected
    • B. Birth order of five
    • C. Weight between 70% and 80% of expected
    • D. Birth weight above 2.5 kg
    Show answer

    Answer: B. Birth order of five

    Birth order of five meets the conventional high-birth-order criterion of five or more. Weight above 80% of expected does not meet the low-weight criterion of below 70% of expected. Weight between 70% and 80% of expected does not meet that low-weight criterion. Birth weight above 2.5 kg does not satisfy the low-birth-weight criterion, which is below 2.5 kg.

  10. 10. Which listed procedure conventionally has the greatest range of myopic correction in suitable candidates?

    • A. Orthokeratology
    • B. Excimer laser photorefractive keratectomy
    • C. Laser in situ keratomileusis
    • D. Radial keratotomy
    Show answer

    Answer: C. Laser in situ keratomileusis

    Laser in situ keratomileusis conventionally permits the greatest myopic correction among these methods in suitable candidates. Excimer laser photorefractive keratectomy has a lower conventional range because higher corrections increase haze and regression. Orthokeratology temporarily reshapes the cornea and is generally used for lower myopic corrections. Radial keratotomy has a lower, less predictable correction range. Individual laser eligibility still depends on corneal tomography, thickness, the planned residual stromal bed and the treatment platform.

Flashcards: Optical Low Vision Aids

  1. 1. Magnification produced by indirect ophthalmoscopy is approximately times

    Show answer

    2-5

  2. 2. Which type of retinoscope projects a linear beam of light that can be rotated to identify the axis of astigmatism?

    Show answer

    Streak retinoscope

  3. 3. Hruby lens provides a _____ field of vision with _____ magnification

    Show answer

    small · high

  4. 4. The retinoscope consisting of a plane mirror with a central aperture is also called

    Show answer

    Priestley-Smith retinoscope

  5. 5. is a method of imaging the cornea by projecting a series of concentric rings of light on the anterior surface.

    Show answer

    Corneal topography

  6. 6. Low myopia is defined as a refractive error of ≤ D.

    Show answer

    3

  7. 7. Campimetry (Scotometry) is a type of perimetry

    Show answer

    manual

  8. 8. The following retinoscope is also called _____

    Show answer

    Streak retinoscope
