Corneal Topography and Imaging

On this page

Corneal Topography Basics - Peeking at Peaks

  • Definition: Non-invasive imaging technique mapping the cornea's surface curvature and shape.
  • Purpose:
    • Detecting corneal ectasias (e.g., keratoconus, pellucid marginal degeneration).
    • Planning refractive surgery (LASIK, PRK).
    • Fitting contact lenses.
    • Evaluating astigmatism.
    • Monitoring corneal disease progression.
  • Map Types:

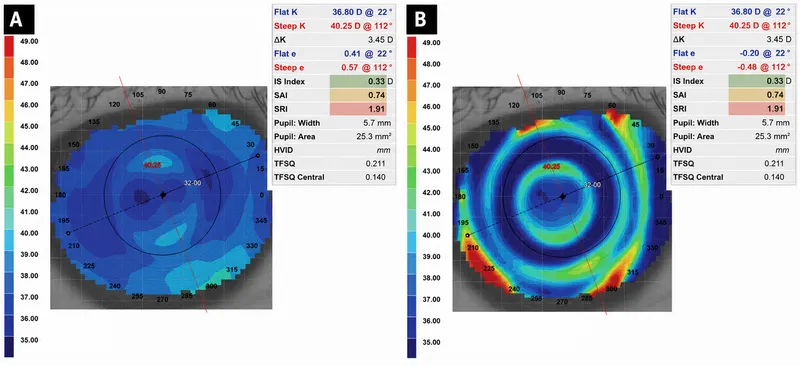

    • Axial (Sagittal): Curvature relative to the optical axis; good for overall view.
    • Tangential (Instantaneous): True local curvature; better for peripheral details & ectasia localization.
    • Elevation: Height relative to a reference sphere.
    • Refractive Power: Displays corneal power in diopters.

⭐ Placido Disk Reflection: Most topography systems use the reflection of concentric rings (Placido mires) off the tear film to analyze corneal curvature. Irregular mires indicate irregular astigmatism or ectasia. 📌 Mnemonic: Placido Peeks at Protrusions.

Topography Technologies - The Image Makers

  • Placido Disc Reflectors:
    • Principle: Projects concentric rings (mires); analyzes reflected pattern from anterior corneal surface.
    • Measures: Anterior curvature primarily.
    • Limitation: Infers posterior shape; less accurate for posterior ectasia or post-refractive surgery.
  • Scheimpflug Imaging:
    • Principle: Rotating camera captures multiple corneal optical cross-sections based on Scheimpflug principle.
    • Measures: Anterior & posterior curvature, true pachymetry, anterior chamber depth (ACD).

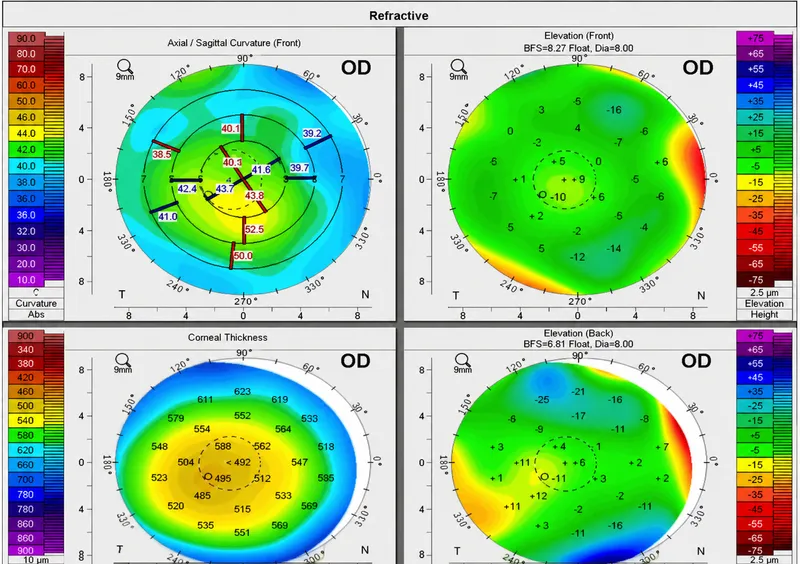

    • Examples: Pentacam, Sirius, Galilei (dual Scheimpflug + Placido).

    ⭐ Scheimpflug imaging is crucial for detecting early keratoconus by providing true pachymetry and detailed posterior corneal surface data, unlike Placido-based systems.

  • Slit-Scanning Technology:
    • Principle: Projects multiple light slits; reconstructs corneal surface (anterior & posterior elevation) from reflected/scattered light.
    • Example: Orbscan (often combines slit-scanning with Placido disc for curvature).

Advanced Corneal Imaging - Deeper Dive Views

  • Anterior Segment OCT (AS-OCT):
    • Non-contact, high-resolution cross-sections.
    • Measures: Pachymetry, epithelial thickness, LASIK flap.
    • Visualizes: Anterior chamber angle, iris, lens.
    • Uses: Keratoconus (epithelial mapping), glaucoma, cataract surgery.
  • Confocal Microscopy:
    • In-vivo cellular imaging of all corneal layers.
    • Detects: Endothelial cells, keratocytes, nerves, pathogens (Acanthamoeba, fungi).
    • Aids in: Dystrophies, keratitis, post-refractive surgery evaluation.
  • Ultrasound Biomicroscopy (UBM):
    • High-frequency ultrasound (35-50 MHz).
    • Images anterior segment when cornea is opaque.
    • Details: Ciliary body, sulcus, posterior chamber, IOL position.
    • Key for: Angle-closure glaucoma, tumors, trauma.

⭐ AS-OCT epithelial mapping is highly sensitive for subclinical keratoconus, revealing focal thinning often before other signs.

Clinical Applications & Patterns - Diagnosing with Dots

  • Core Principle: Maps corneal curvature. Utilizes Placido disc (anterior curvature) or Scheimpflug imaging (anterior/posterior curvature, pachymetry).
  • Keratoconus (KCN):
    • Inferior steepening, asymmetric bow-tie (ABT), skewed radial axes (SRAX).
    • ↑ Kmax, ↑ I-S value (threshold >1.4 D), central/paracentral thinning.
    • Indices: KISA%, Belin/Ambrosio Display (BAD).
  • Pellucid Marginal Degeneration (PMD):
    • "Crab claw" or "kissing doves" pattern.
    • Inferior peripheral thinning (1-2 mm from limbus), high against-the-rule (ATR) astigmatism.
  • Post-Refractive Surgery Assessment:
    • Myopic ablation: Central flattening. Hyperopic ablation: Central steepening.
    • Detecting ectasia (progressive steepening, KCN-like), decentered ablation.
  • Other uses: Contact lens fitting, pre-operative astigmatism analysis.

⭐ An I-S (Inferior-Superior dioptric asymmetry) value > 1.4 D on corneal topography is a key indicator for keratoconus.

Loading diagram…

High‑Yield Points - ⚡ Biggest Takeaways

  • Placido topographers map anterior corneal curvature; Scheimpflug systems (e.g., Pentacam) analyze anterior/posterior elevation and pachymetry.
  • Early keratoconus detection relies on inferior steepening, posterior elevation, and corneal thinning, vital for refractive surgery screening.
  • AS-OCT offers high-resolution cross-sections, precise pachymetry, and angle details.
  • Essential for diagnosing irregular astigmatism, monitoring ectasias, and IOL power calculations.
  • Axial maps show overall curvature; Tangential maps show local curvature changes.
