Internet and Network Forensics

On this page

Network Forensics Basics - Cyber Crime Scene

  • Definition: Scientific examination, collection, and analysis of network traffic, logs, and device configurations to investigate cyber incidents.

  • Cyber Crime Scene: Virtual, dynamic, and highly volatile. Evidence can be altered or deleted remotely and rapidly.

  • Order of Volatility: Crucial for evidence collection. Prioritize:

    • Most Volatile: CPU registers, cache, routing tables, process table, memory (RAM).
    • Less Volatile: ARP cache, active connections, temporary file systems, disk data, remote logs, physical configuration, archival media.
  • Sources of Evidence:

    • Network Devices: Routers (logs, routing tables), switches (MAC tables, CAM tables for Layer 2 switching), firewalls (ACLs, logs), IDS/IPS alerts.
    • Servers & Endpoints: System/application logs, PCAP files, browser history.
    • Service Providers: ISP logs, cloud service logs.
  • Challenges: Data volume, encryption, dynamic IP addresses, anonymity tools (VPNs, Tor), jurisdictional issues.

Critical timeframe principle in network forensics emphasizes rapid acquisition of volatile data (e.g., RAM contents, active connections, routing tables) before it is lost or overwritten, essential for successful investigation of live systems under BNS Chapter XVI cyber crime provisions.

Traffic Analysis - Packet Patrol

  • Definition: Interception, recording, and analysis of network communication (packets) to uncover digital evidence.
  • Key Goals:
    • Identify sources & destinations (IP addresses, MAC addresses).
    • Determine protocols used (TCP, UDP, HTTP, DNS).
    • Reconstruct sessions & data transfers.
    • Detect anomalies, intrusions, or illicit activities.
  • Modern Tools:
    • Wireshark & tcpdump: Traditional packet analyzers (still fundamental).
    • SIEM Systems: Security Information and Event Management platforms.
    • NDR Platforms: Network Detection and Response solutions.
    • Specialized Forensic Suites: Integrated analysis tools for complex investigations.
  • Contemporary Data Sources:
    • Full Packet Captures (PCAP files).
    • Cloud environment logs and EDR system data.
    • Network flow data (NetFlow, sFlow, IPFIX).
    • Threat intelligence feeds and behavioral analytics.

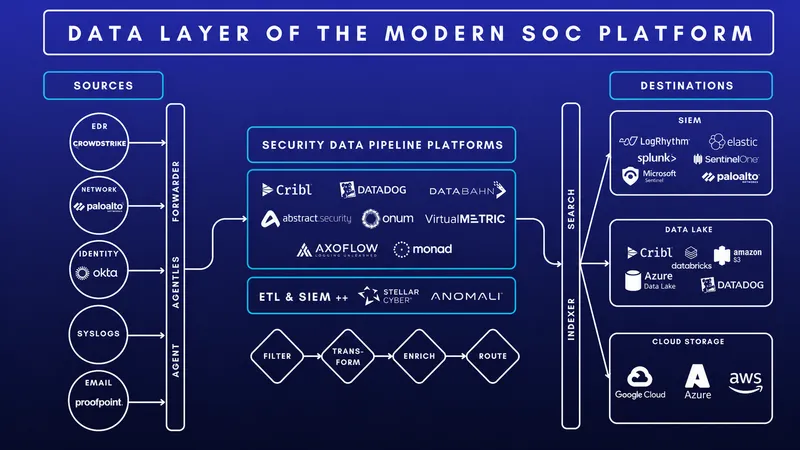

Data Layer of a Modern SOC Platform

Port 443 (HTTPS) analysis now dominates modern investigations, requiring traffic flow analysis and behavioral analytics for encrypted communications, while Port 80 (HTTP) becomes increasingly rare.

  • Analysis Focus: Timestamps, packet headers, encrypted traffic patterns, connection duration, data volume, metadata extraction from encrypted sessions.

Internet Traces - Digital Fingerprints

  • IP Address: Unique network device identifier.
    • Dynamic (changes) vs. Static (fixed).
    • Provides approximate geolocation.
  • MAC Address: Unique hardware ID for network interfaces.
  • Browser Artifacts:
    • History: Visited URLs, timestamps.
    • Cache: Stored web page components.
    • Cookies: User data, session info.
    • Downloads: Record of downloaded files.
  • Email Artifacts:
    • Headers: Detailed path, sender/recipient IPs.
    • Metadata: Author, creation/modification dates.
  • Social Media/Messaging:
    • Posts, messages, logs, geotags, timestamps.
  • Cloud Storage: Access logs, file versions.

Digital Forensics: Email and Network Investigation

⭐ Email headers can reveal the originating IP address of the sender, crucial for tracing anonymous emails.

  • Indian Legal Framework:
    • Digital India Act (expected): Will replace IT Act, 2000 for cybercrimes & e-evidence. Current IT Act Sec: 65 (tampering), 66 (hacking), 67 (obscene material), 69 (decryption/monitoring orders) remain applicable.
    • Bharatiya Sakshya Adhiniyam (BSA), 2023: Sec 63 mandates certificate for admissibility of electronic records.
    • BNSS, 2023: Governs search & seizure (Sec 94, 96).
  • Cloud Forensics:
    • Challenges: Jurisdiction, data volatility, multi-tenancy, deleted data recovery.
    • Evidence: Logs (server, access, application), snapshots, metadata, user activity.
    • Models (IaaS, PaaS, SaaS) dictate data access & provider cooperation.
  • Process: Legal Acquisition of Digital Evidence

⭐ Section 63 of the Bharatiya Sakshya Adhiniyam (BSA), 2023, is pivotal for the admissibility of electronic evidence, requiring a specific certificate to authenticate it in court proceedings.

High‑Yield Points - ⚡ Biggest Takeaways

  • IP addresses (IPv4/IPv6) and MAC addresses are key for device identification.
  • Log files (server, firewall, router) provide crucial event timelines.
  • Email header analysis helps trace origin and path.
  • Browser forensics examines history, cache, and cookies for user activity.
  • Network traffic analysis (e.g., Wireshark) detects intrusions and data leakage.
  • Admissibility of digital evidence is governed by Sections 61, 62, and 63 BSA.
  • Maintaining chain of custody is vital for digital evidence integrity.

Practice Questions: Internet and Network Forensics

Test your understanding with these related questions

What is the forensic method of identification that utilizes lip prints?

1 of 5

Flashcards: Internet and Network Forensics

1/6

Section _____ of the Indian Penal Code deals with 'negligent conduct with respect to poisons'.

TAP TO REVEAL ANSWER

Section _____ of the Indian Penal Code deals with 'negligent conduct with respect to poisons'.

284
