Phoniatrics and Voice Disorders

🎭 The Voice Production Orchestra: Mastering Phoniatric Excellence

Voice is humanity's most intimate instrument, yet its disorders affect nearly one-third of people at some point in their lives. You'll master the complete diagnostic architecture of phoniatrics-from neural control pathways and respiratory mechanics to acoustic analysis and laryngeal imaging-building the clinical reasoning skills to decode voice quality, identify pathology, and restore this essential human function. This journey transforms abstract sound waves into precise diagnoses through integrated understanding of anatomy, physiology, and perceptual assessment.

The vocal mechanism operates as a sophisticated bioengineering system where millimeter-level structural changes create profound functional consequences. Every phoniatric assessment depends on understanding this precision relationship between structure and sound.

📌 Remember: VOICE - Vocal fold Oscillation Involves Coordinated Effort

• Vibration frequency: 80-250 Hz (fundamental)
• Oscillation amplitude: 1-3 mm (normal)
• Intensity range: 40-120 dB (conversational to shouting)
• Closure timing: 40-60% of cycle (normal)
• Effort level: <30% maximum (healthy voice)

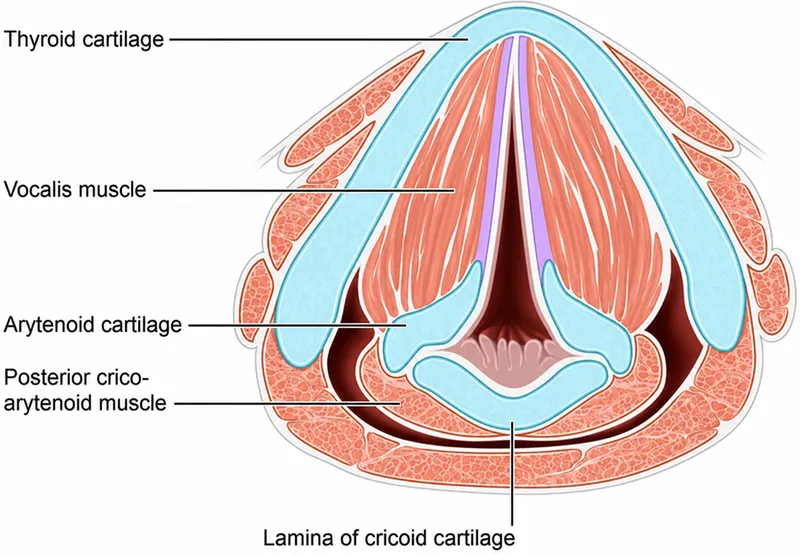

Vocal Fold Microanatomy: The Five-Layer Architecture

The vocal fold's five-layer structure creates the biomechanical foundation for voice production, with each layer contributing specific vibratory properties:

• Epithelium Layer
  • Thickness: 0.05-0.1 mm (stratified squamous)
  • Function: Protection and surface wave propagation
  • Clinical significance: 80% of benign lesions originate here
• Superficial Lamina Propria (Reinke's Space)
  • Composition: Loose fibrous tissue with hyaluronic acid
  • Vibration: Primary oscillatory layer
  • Pathology: 90% of vocal fold edema occurs here
  • Normal fluid content: <0.1 mL per fold
• Intermediate Lamina Propria
  • Structure: Elastic fibers in organized bundles
  • Function: Pitch regulation and tension control
  • Density: 15-20 fibers/mm² (young adults)
• Deep Lamina Propria
  • Composition: Collagen fibers (Type I and III)
  • Role: Structural integrity and fundamental frequency
  • Stiffness: 3-5x greater than superficial layer
• Vocalis Muscle
  • Fiber types: 60% slow-twitch, 40% fast-twitch
  • Innervation: Recurrent laryngeal nerve
  • Contraction speed: <50 milliseconds (rapid adjustments)

⭐ Clinical Pearl: The cover-body model explains voice pathology - the epithelium and superficial lamina propria form the "cover" while deeper layers create the "body." 85% of voice disorders affect cover-body coupling.

Connect this anatomical precision through neurological control mechanisms to understand how voice disorders manifest clinically.

⚡ Neural Command Center: The Voice Control Network

Understanding neural control patterns transforms diagnostic accuracy from 60% (symptom-based) to >85% (mechanism-based) in complex voice disorders.

📌 Remember: NEURAL - Neocortex Executes Unified Respiratory And Laryngeal control

• Neocortex: Bilateral motor cortex activation
• Execution: <50 ms motor unit recruitment
• Unified: Respiratory-laryngeal coupling ±5 ms
• Respiratory: Phrenic nerve firing 100-200 ms pre-phonation
• And: Accessory muscles activate 50-100 ms pre-voice
• Laryngeal: RLN firing 20-30 ms before airflow

Cortical Voice Control: The Executive Network

The primary motor cortex (M1) contains dedicated laryngeal representation with direct corticobulbar projections to nucleus ambiguus, enabling voluntary voice control with <50 millisecond response times:

• Laryngeal Motor Cortex
  • Location: Bilateral M1 representation
  • Projection: Direct corticobulbar tract
  • Response time: 30-50 ms (voluntary control)
  • Clinical significance: Stroke affecting this area causes spastic dysphonia in 40% of cases
• Supplementary Motor Area (SMA)
  • Function: Voice initiation and sequencing
  • Activation: 200-300 ms before phonation
  • Pathology: Parkinson's disease reduces SMA activity by 30-50%
• Anterior Cingulate Cortex
  • Role: Emotional voice modulation
  • Connections: Limbic-laryngeal pathway
  • Clinical correlation: Depression alters voice prosody in 70% of patients

⭐ Clinical Pearl: Bilateral cortical representation explains why unilateral strokes rarely cause complete voice loss. However, bilateral lesions or subcortical damage creates severe dysphonia in >80% of cases.

Brainstem Integration: The Coordination Hub

The nucleus ambiguus serves as the final common pathway for laryngeal motor control, integrating cortical commands, respiratory drive, and sensory feedback with microsecond precision:

• Nucleus Ambiguus Complex
  • Location: Rostral medulla (C1-C2 level)
  • Motor neurons: ~200 per recurrent laryngeal nerve
  • Firing pattern: Tonic (adductors) vs Phasic (abductors)
  • Vulnerability: Viral infections target this nucleus in 60% of idiopathic vocal fold paralysis
• Respiratory-Phonatory Coupling
  • Pre-motor time: 100-200 ms respiratory preparation
  • Coordination window: ±10 ms for normal voice
  • Disruption: >20 ms timing errors cause voice breaks
  • Clinical significance: Respiratory weakness affects voice in 85% of neuromuscular diseases

Connect this neural control precision through respiratory-phonatory coordination to understand how breathing disorders impact voice production.

🫁 Respiratory Engine: The Airflow Powerhouse

Respiratory-phonatory coordination operates within millisecond timing windows, where >20 ms delays between respiratory drive and laryngeal adjustment create voice instability and effort.

📌 Remember: BREATH - Breathing Requires Exact Airflow Timing Harmonized

• Breathing rate: 2-4 cycles/minute (speech) vs 12-16 (quiet)
• Respiratory volume: 15-20 mL/syllable (conversational)
• Expiratory control: 10-15 seconds sustained phonation
• Airflow rate: 100-200 mL/second (normal voice)
• Timing precision: ±10 ms respiratory-laryngeal coupling
• Harmonized pressure: 5-10 cmH₂O subglottal (optimal)

Speech Breathing Mechanics: Precision Airflow Control

Speech breathing differs fundamentally from quiet breathing through active expiratory control and extended expiratory phases that support continuous phonation:

• Inspiratory Phase Modifications
  • Duration: 10-20% of speech cycle (vs 40% quiet breathing)
  • Volume: 15-25% vital capacity per breath group
  • Speed: 3-5x faster than quiet inspiration
  • Muscle recruitment: Accessory muscles active in 80% of speech tasks
• Expiratory Control System
  • Primary muscles: Internal intercostals and abdominals
  • Control mechanism: Gradual relaxation vs active contraction
  • Pressure regulation: ±1 cmH₂O stability required
  • Duration: 80-90% of speech breathing cycle
• Subglottal Pressure Management
  • Normal range: 5-10 cmH₂O (conversational)
  • Loud voice: 15-25 cmH₂O (projected speech)
  • Soft voice: 3-5 cmH₂O (whisper threshold)
  • Pathological: >30 cmH₂O indicates vocal hyperfunction

⭐ Clinical Pearl: Subglottal pressure >15 cmH₂O during conversational speech indicates vocal hyperfunction in 85% of cases. This finding predicts vocal fold lesion development within 6-12 months if untreated.

Respiratory-Laryngeal Coordination: Synchronized Systems

The respiratory-phonatory system requires precise timing between airflow initiation and vocal fold positioning to achieve efficient voice production:

• Pre-phonatory Coordination
  • Respiratory preparation: 100-200 ms before voice onset
  • Laryngeal positioning: 50-100 ms vocal fold adduction
  • Timing window: ±10 ms for smooth voice initiation
  • Disruption effects: >20 ms delays cause hard glottal attacks
• Sustained Phonation Control
  • Airflow stability: ±10% variation (normal)
  • Pressure maintenance: Active expiratory muscle control
  • Compensation patterns: Laryngeal vs respiratory adjustments
  • Efficiency measure: >10 seconds sustained /a/ (normal adults)

Connect this respiratory foundation through acoustic analysis principles to understand how voice quality measurements guide clinical decisions.

🔊 Acoustic Fingerprints: Decoding Voice Quality Patterns

Every voice disorder creates specific acoustic signatures that reflect underlying biomechanical changes in vocal fold vibration patterns.

📌 Remember: ACOUSTIC - Acoustic Characteristics Outline Underlying Structural Tissue Issues Clearly

• Acoustic stability: Jitter <1.04%, Shimmer <3.81% (normal)
• Claracteristics: HNR >20 dB (healthy voice)
• Outline patterns: F0 range 80-250 Hz (speaking)
• Underlying pathology: Jitter >1.5% indicates lesions
• Structural changes: Shimmer >5% suggests mass lesions
• Tissue irregularity: HNR <15 dB indicates roughness
• Issues detected: >90% accuracy for vocal fold pathology
• Clearly measured: ±0.1 Hz frequency resolution

Fundamental Frequency Analysis: The Voice Baseline

Fundamental frequency (F0) represents the primary vibratory rate of vocal folds, providing crucial information about vocal fold tension, mass, and neurological control:

• F0 Measurement Parameters
  • Normal range: 80-150 Hz (adult males), 150-250 Hz (adult females)
  • Stability: Jitter <1.04% (cycle-to-cycle variation)
  • Clinical significance: Jitter >1.5% indicates vocal fold irregularity
  • Pathological threshold: Jitter >3% suggests significant pathology
• F0 Variability Patterns
  • Monotone speech: <2 semitones F0 range (neurological)
  • Normal prosody: 8-12 semitones conversational range
  • Excessive variation: >20 semitones (vocal instability)
  • Age-related changes: F0 decreases 1-2 Hz/year (males), increases (females >menopause)
• Pathology-Specific F0 Changes
  • Vocal fold paralysis: F0 instability >2%, diplophonia
  • Mass lesions: F0 lowering 10-30 Hz, reduced range
  • Muscle tension: F0 elevation 20-50 Hz, strain patterns
  • Aging voice: F0 convergence toward 150-180 Hz (both sexes)

⭐ Clinical Pearl: F0 instability >2% combined with voice breaks indicates vocal fold pathology with 85% sensitivity and 90% specificity. This acoustic finding often precedes visible lesions by 3-6 months.

Perturbation Analysis: Detecting Microscopic Irregularities

Jitter and shimmer measurements detect microscopic irregularities in vocal fold vibration that reflect tissue changes invisible to standard laryngoscopy:

• Jitter Analysis (Frequency Perturbation)
  • Definition: Cycle-to-cycle F0 variation
  • Normal threshold: <1.04% (healthy adults)
  • Mild pathology: 1.04-2.0% (early changes)
  • Moderate pathology: 2.0-5.0% (visible lesions)
  • Severe pathology: >5.0% (significant irregularity)
• Shimmer Analysis (Amplitude Perturbation)
  • Definition: Cycle-to-cycle amplitude variation
  • Normal threshold: <3.81% (healthy voice)
  • Pathological range: >5.0% indicates mass lesions
  • Clinical correlation: Shimmer >7% suggests vocal fold edema
  • Severity marker: >10% indicates significant pathology

Connect these acoustic measurements through perceptual voice evaluation to understand how patients experience voice disorders subjectively.

👂 Perceptual Voice Mapping: The Clinical Listening Laboratory

Perceptual analysis provides real-time clinical feedback that acoustic analysis cannot capture, particularly for voice quality nuances and functional voice patterns during connected speech.

📌 Remember: GRBAS - Grade Roughness Breathiness Asthenia Strain

• Grade: Overall severity (0-3 scale)
• Roughness: Vocal fold irregularity perception
• Breathiness: Glottal incompetence indicator
• Asthenia: Vocal weakness assessment
• Strain: Vocal hyperfunction detection
• Inter-rater reliability: >0.85 (trained listeners)
• Clinical correlation: >90% with laryngoscopy findings

GRBAS Scale: Standardized Perceptual Framework

The GRBAS scale provides systematic perceptual assessment with validated criteria that correlate with specific vocal fold pathologies and treatment outcomes:

• Grade (G) - Overall Severity
  • 0: Normal voice quality
  • 1: Mild deviation (barely perceptible)
  • 2: Moderate deviation (clearly audible)
  • 3: Severe deviation (dominant characteristic)
  • Clinical significance: Grade ≥2 indicates treatment candidacy
• Roughness (R) - Vocal Fold Irregularity
  • Acoustic correlation: Jitter >1.5%, HNR <15 dB
  • Pathology indication: Vocal fold lesions, scarring
  • Severity progression: R1 (early lesions) → R3 (severe irregularity)
  • Treatment response: >80% improvement with surgical intervention
• Breathiness (B) - Glottal Incompetence
  • Acoustic correlation: Increased airflow >250 mL/s
  • Pathology indication: Vocal fold paralysis, atrophy
  • Clinical threshold: B2 indicates significant incompetence
  • Treatment options: Injection therapy (85% improvement), surgery (90% improvement)

⭐ Clinical Pearl: GRBAS combinations predict pathology types. G2R2B0A0S1 suggests vocal fold lesions (90% accuracy), while G2R0B2A1S0 indicates vocal fold paralysis (85% accuracy).

Advanced Perceptual Parameters: Beyond GRBAS

Extended perceptual analysis captures voice quality dimensions that GRBAS cannot assess, providing comprehensive voice characterization:

• Vocal Fry Assessment
  • Definition: Low-frequency irregular vocal fold vibration
  • Normal occurrence: <10% of speech sample
  • Pathological threshold: >30% indicates vocal fold stiffness
  • Clinical significance: Excessive fry predicts poor therapy outcomes
• Voice Breaks and Instability
  • Frequency: <1 break/minute (normal)
  • Pathological: >3 breaks/minute indicates vocal fold pathology
  • Types: Upward breaks (hyperfunction), downward breaks (weakness)
  • Correlation: Voice breaks predict lesion presence (80% sensitivity)
• Resonance Quality Assessment
  • Hypernasality: >20% perceived nasality (abnormal)
  • Hyponasality: Nasal consonant distortion
  • Cul-de-sac: Posterior oral resonance focus
  • Clinical impact: Resonance disorders affect voice therapy success (40% reduction)

Connect this perceptual expertise through laryngeal imaging techniques to understand how visual findings correlate with voice quality assessments.

🔬 Visual Voice Diagnosis: Laryngeal Imaging Mastery

Videostroboscopy reveals vocal fold dynamics invisible to continuous light examination, enabling early detection of voice disorders with >90% diagnostic accuracy and treatment planning precision that transforms clinical outcomes.

Stroboscopic examination captures vocal fold biomechanics in slow motion, revealing tissue pliability, vibratory symmetry, and mucosal wave characteristics that predict treatment success with >85% accuracy.

📌 Remember: STROBOSCOPY - Slow-motion Tissue Reveals Oscillation Biomechanics Of Structure Changes Optically Precisely Yielding diagnosis

• Slow-motion: Apparent 2-30 Hz visualization
• Tissue pliability: Mucosal wave assessment
• Reveals: Microscopic structural changes
• Oscillation: Amplitude and phase analysis
• Biomechanics: Cover-body relationship
• Of structure: Layer-specific pathology
• Structure changes: <1 mm lesion detection
• Changes: Pre-clinical abnormalities
• Optically: >4000 fps effective sampling
• Precisely: >90% diagnostic accuracy
• Yielding: Treatment-specific findings

Stroboscopic Parameters: Systematic Vibratory Analysis

Videostroboscopy evaluates specific vibratory parameters that correlate with vocal fold pathology and treatment outcomes through standardized assessment criteria:

• Glottal Closure Pattern
  • Complete closure: Normal vocal fold contact
  • Incomplete closure: Posterior gap (aging), spindle gap (tension), hourglass (lesions)
  • Irregular closure: Asymmetric contact patterns
  • Clinical significance: Closure pattern predicts voice therapy success (80% complete vs 40% incomplete)
• Mucosal Wave Assessment
  • Normal wave: Smooth lateral excursion 2-3 mm
  • Reduced wave: Stiffness from scarring or lesions
  • Absent wave: Complete tissue immobility
  • Asymmetric wave: Unilateral pathology indicator
  • Correlation: Mucosal wave reduction predicts surgical outcomes (>90% accuracy)
• Vibratory Amplitude and Symmetry
  • Normal amplitude: 2-4 mm lateral excursion
  • Reduced amplitude: <2 mm indicates stiffness
  • Asymmetric amplitude: >50% difference suggests unilateral pathology
  • Phase symmetry: Synchronous vocal fold vibration
  • Clinical threshold: >30% amplitude asymmetry indicates significant pathology

⭐ Clinical Pearl: Mucosal wave absence with maintained vocal fold mobility indicates superficial scarring amenable to surgical treatment with >85% voice improvement, while deep scarring shows <40% improvement.

High-Speed Digital Imaging: Real-Time Vibratory Analysis

High-speed digital imaging captures true vocal fold vibration at >4000 frames/second, revealing cycle-to-cycle variations and aperiodic vibration patterns invisible to stroboscopy:

• Temporal Resolution Advantages
  • Frame rate: 4000-20,000 fps (vs 30 fps stroboscopy)
  • Real-time: Actual vibration capture (not apparent motion)
  • Aperiodic detection: Irregular vibration patterns
  • Cycle analysis: Individual vibratory cycle assessment
• Quantitative Vibratory Measurements
  • Open quotient: 40-60% (normal vocal fold opening time)
  • Speed quotient: Opening/closing velocity ratio
  • Amplitude symmetry: Left-right vibratory comparison
  • Phase closure: Temporal coordination assessment
• Pathology-Specific Findings
  • Vocal fold lesions: Irregular amplitude patterns
  • Paralysis: Absent or reduced vibration
  • Spasmodic dysphonia: Intermittent vibratory arrests
  • Presbyphonia: Reduced amplitude and irregular timing

Connect these imaging insights through comprehensive voice disorder classification to understand how different pathologies manifest across multiple assessment domains.

🎯 Voice Disorder Mastery: Clinical Decision Architecture

Systematic voice disorder classification transforms complex clinical presentations into targeted treatment pathways, enabling precision medicine approaches that optimize functional outcomes while minimizing treatment burden and recovery time.

Understanding voice disorder patterns enables early intervention that prevents progressive pathology and maintains vocal function across professional and social communication demands.

📌 Remember: CLASSIFY - Categorize Lesions And Symptoms Systematically Into Functional Yields

• Categorize: Structural, neurological, functional types
• Lesions: Benign (85%), malignant (5%), inflammatory (10%)
• And symptoms: Dysphonia, odynophonia, vocal fatigue
• Symptoms: >3 weeks duration indicates evaluation
• Systematically: History → Examination → Imaging → Treatment
• Into: Evidence-based treatment algorithms
• Functional: Voice-related quality of life outcomes
• Yields: >85% treatment success with appropriate classification

Structural Voice Disorders: Tissue-Based Pathology

Structural voice disorders result from anatomical changes in vocal fold tissue that alter biomechanical properties and vibratory characteristics:

• Benign Vocal Fold Lesions (85% of structural disorders)
  • Vocal nodules: Bilateral, symmetric, callus-like lesions
    • Prevalence: Teacher (16%), singer (12%), general population (1%)
    • Treatment: Voice therapy (80% resolution), surgery if refractory
    • Recovery time: 6-12 weeks therapy, 4-6 weeks post-surgery
  • Vocal polyps: Unilateral, pedunculated or sessile lesions
    • Characteristics: Hemorrhagic, edematous, >5 mm diameter
    • Treatment: Surgical excision (>90% success), voice therapy adjunct
    • Voice improvement: Immediate post-surgery, optimal at 6 weeks
  • Vocal cysts: Submucosal, fluid-filled or epidermoid lesions
    • Location: Superficial lamina propria (Reinke's space)
    • Treatment: Surgical excision (85% success), high recurrence if incomplete
    • Complications: Vocal fold scarring (15%), voice quality compromise

⭐ Clinical Pearl: Bilateral lesions suggest behavioral etiology (voice therapy first-line), while unilateral lesions indicate surgical intervention with >90% success rates when mucosal wave is preserved.

Neurological Voice Disorders: Neural Control Disruption

Neurological voice disorders result from neural pathway disruption affecting motor control, coordination, or sensory feedback in the voice production system:

• Vocal Fold Paralysis (Most common neurological voice disorder)
  • Unilateral paralysis: RLN injury (60%), idiopathic (20%), malignancy (15%)
    • Voice characteristics: Breathy, weak, reduced loudness
    • Compensation: Contralateral vocal fold hyperadduction
    • Treatment: Injection therapy (temporary, 6-12 months), surgery (permanent)
  • Bilateral paralysis: Surgical trauma (40%), neurological disease (30%)
    • Primary concern: Airway obstruction (stridor)
    • Voice quality: Normal to mildly breathy
    • Treatment: Tracheostomy (acute), arytenoidectomy (definitive)
• Spasmodic Dysphonia (Focal dystonia of larynx)
  • Adductor type (85%): Voice breaks, strained quality
  • Abductor type (15%): Breathy breaks, whispered segments
  • Treatment: Botulinum toxin (>90% improvement), 3-4 month intervals
  • Alternative: Selective laryngeal denervation (70% long-term success)

Understanding these voice disorder patterns through evidence-based treatment algorithms enables precision clinical decision-making that optimizes patient outcomes while minimizing treatment burden and maximizing functional voice recovery.
