Breathing Systems Basics - Circuit Central

  • Core Components:
    • Fresh Gas Source (FGS): Gases/O2 input.
    • Delivery Tubes: Inspiratory/expiratory.
    • Reservoir Bag: Tidal volume, manual/spontaneous ventilation.
    • APL Valve: Pressure limit, excess gas vent.
    • Patient Connection: Mask/ETT/LMA.

and classification overview)

  • Classification:
System TypeRebreathingCO2 AbsorptionExample(s)
OpenNoNoOpen drop
Semi-OpenMinimal/NoNoMapleson A,D
Semi-ClosedPartialYesCircle (low)
ClosedTotalYesCircle (min)

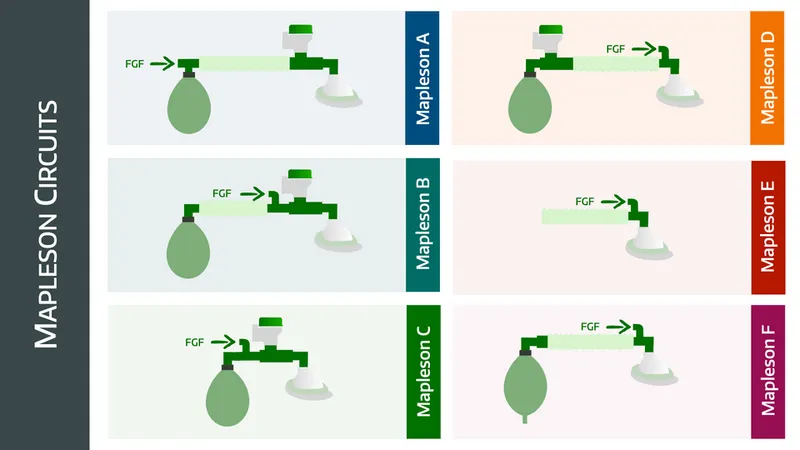

Mapleson Circuits - Alphabet Soup Fun

CircuitComponentsFGF (SV)FGF (CV)Efficiency (SV)Efficiency (CV)Best UseNotes
Mapleson A (Magill)FGF, CT, RB, APL (pt end)$FGF = MV$High, 2-3x MVMost efficientLeast efficientAdults, SVAPL near patient.
Mapleson DFGF (pt), CT, RB, APL (mach end)2-3x MV1-2x MV ($70 \text{ ml/kg/min}$)GoodMost efficientAll ages, SV & CVBain: coaxial D. Test inner tube.
Mapleson E (Ayre's T)FGF (pt), CT (exp limb)2-3x MV2-3x MVGoodGoodPeds < 25 kg, SVNo RB/APL. Low dead space/resistance.
Mapleson F (Jackson-Rees)FGF (pt), CT, open RB2-3x MV2-3x MVGoodGoodPeds, SV & CVMod of E. Allows CPAP/PEEP.
  • 📌 Efficiency (CV): 'Dead Babies Can't Assist' (D > B > C > A)

⭐ The Bain circuit, a coaxial Mapleson D, requires integrity testing of the inner fresh gas delivery tube to prevent rebreathing of exhaled gases if it becomes kinked or disconnected.

Circle System - Round & Round We Go

Most common system; allows rebreathing of gases after CO₂ removal.

Components:

  • CO₂ absorber (Soda lime)
  • Unidirectional inspiratory & expiratory valves
  • APL (Adjustable Pressure Limiting) valve
  • Reservoir bag
  • Y-piece
  • Fresh Gas Flow (FGF) inlet
  • Corrugated breathing tubes

CO₂ Absorption (Soda Lime):

  • Reactions: $CO_2 + 2NaOH \rightarrow Na_2CO_3 + H_2O + Heat$; then $Na_2CO_3 + Ca(OH)_2 \rightarrow CaCO_3 \text{ (s)} + 2NaOH$.
  • Granule size: 4-8 mesh.
  • Indicator: Ethyl violet (Pink → Violet). 📌 "Violet is Violating" (CO₂ rebreathing).

Advantages:

  • Low FGF: Conserves gases & agents.
  • Conserves heat & humidity.
  • ↓ Operating room pollution.
  • Suitable for all patient ages.

Disadvantages:

  • Complex; many parts, ↑ failure risk.
  • ↑ Resistance to breathing.
  • Rebreathing risk (valve/absorber failure).
  • Compound A formation (Sevoflurane + dry absorbent).

Simplified Pre-Use Check:

Loading diagram…

⭐ Channeling in the CO₂ absorber canister can lead to premature exhaustion and rebreathing of CO₂ despite color change indicating otherwise in parts of the absorbent.

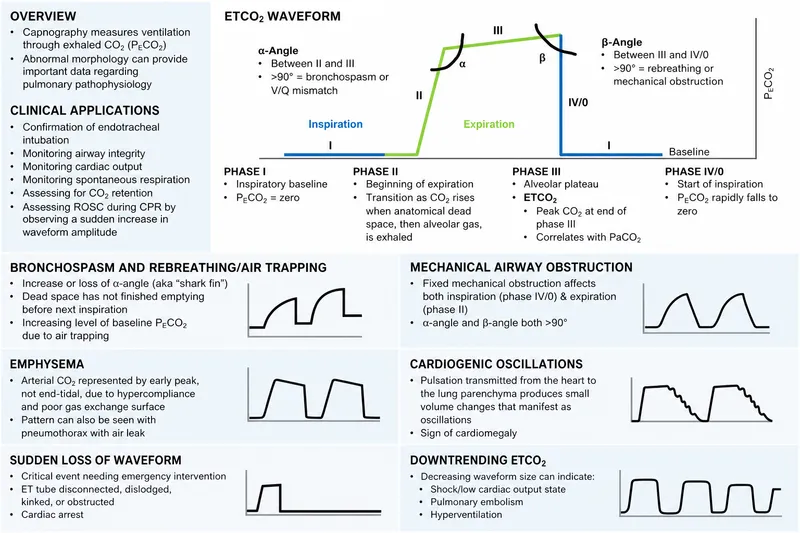

Safety & Monitoring - Vigilant Vents

  • Hazards: Leaks, disconnections, obstructions, barotrauma, volutrauma, hypoxia, hypercarbia.
  • Key Monitoring:
    • Airway pressures (Peak, Plateau, PEEP).
    • Capnography (ETCO2: normal 35-45 mmHg).
    • Inspired O2 (FiO2).
    • Spirometry (VT, MV).
    • Alarms: Low/High pressure, Apnea.
  • Scavenging: Active/passive systems for Waste Anesthetic Gas Disposal (WAGD).

⭐ A sudden drop in ETCO2 to near zero can indicate esophageal intubation, circuit disconnection, or cardiac arrest.

High‑Yield Points - ⚡ Biggest Takeaways

  • Mapleson A (Magill) is best for spontaneous ventilation; Mapleson D for controlled ventilation.
  • The Bain circuit is a coaxial Mapleson D; check inner tube integrity.
  • Circle systems enable low FGF, conserve heat/humidity, and need CO2 absorption.
  • Key circle components: unidirectional valves, APL valve, CO2 absorber.
  • Minimize apparatus dead space for efficient ventilation and to prevent rebreathing.
  • Soda lime exhaustion: color change (ethyl violet), ↑ETCO2, ↑HR, ↑BP.
  • Adequate Fresh Gas Flow (FGF) prevents rebreathing in Mapleson systems.

Unlock the full lesson and continue reading

Signup to continue reading this lesson and unlimited access questions, flashcards, AI notes, and more

Scan to download app

Scan to download
UNLOCK FREE ACCESS

Practice Questions: Breathing Systems

  1. 1. Which parameter is routinely used to quantify bronchodilator reversibility in adults with suspected asthma?

    • A. End expiratory flow rate during forced expiration
    • B. Forced expiratory volume in one second
    • C. Total lung capacity after maximal inspiration
    • D. Tidal volume during quiet breathing
    Show answer

    Answer: B. Forced expiratory volume in one second

    Forced expiratory volume in one second FEV1 is used to quantify bronchodilator responsiveness. In an adult, an increase of at least 12% and 200 mL from baseline after an inhaled short-acting bronchodilator supports variable expiratory airflow limitation. Interpret this with the clinical history and FEV1/FVC ratio; FEV1 alone does not diagnose asthma. - A positive response supports asthma in the appropriate clinical context, but bronchodilator responsiveness can also occur in COPD. A negative response on one occasion does not exclude asthma. - Basis: Joint Indian Chest Society–National College of Chest Physicians (India) recommendations for diagnosis and management of bronchial asthma, 2015; Harrison's Principles of Internal Medicine, asthma. End expiratory flow rate during forced expiration - End expiratory flow rate is neither peak expiratory flow nor a standard primary diagnostic criterion for asthma. Serial peak expiratory flow variability can support asthma diagnosis when spirometry is unavailable. - FEV1 is preferred because it is more reproducible and standardized, and its reversible reduction demonstrates airflow limitation characteristic of asthma. Total lung capacity after maximal inspiration - Total lung capacity measures the volume of air in the lungs after maximal inhalation, rather than directly assessing expiratory airflow obstruction. - TLC may be normal or increased with air trapping and hyperinflation in asthma, so it is not a primary diagnostic criterion. Tidal volume during quiet breathing - Tidal volume is the amount of air inhaled or exhaled during quiet breathing, typically about 500 mL at rest, and does not measure airway obstruction. - Tidal volume during quiet breathing is not a diagnostic measure for asthma; it lacks the specificity and diagnostic value of demonstrating reversible airflow limitation with spirometry.

  2. 2. Which of the following is NOT a rebreathing system used in anesthesia?

    • A. Mapleson F
    • B. Semi-closed circle system
    • C. To & fro system
    • D. Closed circle system
    Show answer

    Answer: A. Mapleson F

    Mapleson F - Mapleson F is the Jackson-Rees modification of the Mapleson T-piece and is classified as a non-rebreathing system, particularly in pediatric anesthesia. - Its open-ended reservoir bag permits manual ventilation while adequate fresh gas flow prevents significant rebreathing of expired gases. Semi-closed circle system - The semi-closed circle system is a rebreathing circuit with unidirectional valves and a carbon dioxide absorber, permitting exhaled gases to be rebreathed after CO₂ removal. - Its ability to function with low fresh gas flows conserves anesthetic agents and moisture; fresh gas flow exceeds patient uptake, and excess gas is vented. To & fro system - The to-and-fro system is a rebreathing circuit in which exhaled gases pass back and forth through a soda lime canister for carbon dioxide absorption. - Although now less commonly used because of heat buildup and airway resistance, it remains classified as a rebreathing system. Closed circle system - The closed circle system is a rebreathing system that uses unidirectional valves and a carbon dioxide absorbent, allowing anesthetic gases to be rebreathed after CO₂ removal. - Its fresh gas supply matches patient uptake, with no intentional venting of excess gas.

  3. 3. The image shows:

    • A. Peak expiratory flow meter
    • B. AMBU Bag
    • C. Nebulizer
    • D. Non-rebreather mask
    Show answer

    Answer: D. Non-rebreather mask

    Non-rebreather mask - The image shows a reservoir bag and oxygen tubing attached to a mask, characteristic of a non-rebreather mask for high-concentration oxygen delivery. - One-way valves prevent exhaled gas re-entry and room-air entrainment, permitting delivery of approximately 90–95% inspired oxygen. Peak expiratory flow meter - A Peak expiratory flow meter is a small handheld device that measures peak expiratory flow during forceful exhalation, rather than delivering oxygen. - It does not have a reservoir bag or oxygen tubing, so its appearance and function do not fit the pictured equipment. AMBU Bag - An AMBU bag is a self-inflating resuscitation device with a large squeezable bag used to provide positive-pressure ventilation. - The pictured device lacks the characteristic manual ventilation bag and associated valve system of an AMBU bag. Nebulizer - A nebulizer usually has a medication cup and produces a fine aerosol mist for inhalation, rather than storing oxygen in a reservoir. - Although nebulizers may use tubing and a mask, the prominent reservoir bag is not a standard nebulizer feature.

  4. 4. What is the usual oxygen flush flow rate in a conventional anaesthesia machine?

    • A. 90–120 L/min
    • B. 20–30 L/min
    • C. 5–15 L/min
    • D. 35–75 L/min
    Show answer

    Answer: D. 35–75 L/min

    35–75 L/min is the usual oxygen flush flow rate; the flush bypasses flowmeters and vaporizers. 5–15 L/min and 20–30 L/min are below the usual flush range, while 90–120 L/min exceeds it.

  5. 5. Which circuit is specifically designed for anaesthesia in infants?

    • A. Ayre's T-piece
    • B. Waters circuit
    • C. Bain coaxial breathing circuit
    • D. Magill circuit
    Show answer

    Answer: A. Ayre's T-piece

    Ayre's T-piece - The Ayre's T-piece, including the Jackson-Rees modification, has minimal apparatus dead space and resistance, making it suitable for infants with low tidal volumes. - Its simple, low-resistance design reduces the work of breathing, which is particularly important in neonates and infants. Bain coaxial breathing circuit - The Bain coaxial breathing circuit is a modified Mapleson D system commonly used in older children and adults, rather than being specifically designed for infants. - Its concentric design requires suitable fresh gas flows and is less ideal for managing the very low tidal volumes of infants. Magill circuit - The Magill circuit is a Mapleson A system that is most efficient for spontaneous ventilation in adults, not specifically for infant anaesthesia. - Its configuration can cause significant rebreathing during controlled ventilation and is unsuitable for the small tidal volumes of infants. Waters circuit Waters circuit is a to-and-fro carbon-dioxide absorption system with an absorber between the patient and reservoir bag. Its absorber adds apparatus resistance and bulk near the patient, unlike the simple low-resistance Ayre's T-piece.

  6. 6. What is the approximate maximum voluntary ventilation in a healthy young adult man?

    • A. 50 L/min
    • B. 25 L/min
    • C. 150 L/min
    • D. 100 L/min
    Show answer

    Answer: C. 150 L/min

    150 L/min is the closest option to the conventional MVV reference of approximately 150–170 L/min in a healthy young adult man. 100 L/min can occur normally in some healthy adults, particularly women, but is below the reference requested here. 50 L/min is substantially below the expected young-adult male MVV. 25 L/min is also markedly below that MVV reference and remains well above normal resting minute ventilation of approximately 6–8 L/min.

  7. 7. All of the following increase the risk of postoperative nausea and vomiting after squint surgery in children EXCEPT:

    • A. Propofol
    • B. Nitrous Oxide
    • C. Morphine
    • D. Halothane
    Show answer

    Answer: A. Propofol

    Propofol - Propofol has antiemetic properties and is associated with a lower incidence of postoperative nausea and vomiting, making it the exception in children undergoing squint surgery. - Its antiemetic mechanism is incompletely understood, but propofol-based anaesthesia reduces PONV compared with volatile anaesthesia. Nitrous Oxide - Nitrous oxide increases PONV risk when used during general anesthesia, including in children undergoing squint surgery. - It may promote emesis through bowel distension and stimulation of neurotransmitter pathways involved in vomiting, so it is not the exception. Morphine increases postoperative nausea and vomiting through opioid-mediated emetic effects and delayed gastric emptying, so it is not the exception. Halothane - Halothane, as an inhalational anesthetic, is a significant risk factor for PONV in children and after procedures such as squint repair. - It may increase vomiting by stimulating the chemoreceptor trigger zone and altering gastrointestinal motility, so it does not fit the exception.

  8. 8. In an adult with spontaneous circulation, which method most reliably confirms tracheal tube placement immediately after intubation?

    • A. Direct visualization through vocal cords
    • B. Chest auscultation
    • C. Pulse oximetry
    • D. Continuous waveform capnography
    Show answer

    Answer: D. Continuous waveform capnography

    Continuous waveform capnography - Persistent exhaled carbon dioxide confirms that the tube is communicating with the trachea, whereas the esophagus does not normally produce CO2-rich exhaled gas. - EtCO2 provides real-time, objective confirmation of ventilation and is therefore more reliable than delayed oxygenation changes or clinical examination alone. Direct visualization through vocal cords - Direct visualization of the tube passing beneath the vocal cords supports tracheal placement, but it may be difficult when airway visibility is poor. - This method is operator-dependent and can be misleading in difficult airways, so objective confirmation with exhaled CO2 is more reliable. Chest auscultation - Chest auscultation may identify breath sounds after intubation, but transmitted sounds from the stomach or surrounding tissues can produce false reassurance. - It is difficult to distinguish tracheal from esophageal sounds, particularly in noisy environments or with inexperienced personnel. Pulse oximetry - Pulse oximetry measures oxygenation, not the location of the endotracheal tube, so it cannot immediately distinguish tracheal from esophageal placement. - After pre-oxygenation, saturation may remain adequate for several minutes despite esophageal intubation; a later fall is delayed and is not the best early indicator.

  9. 9. A 20-year old spontaneous breathing patient undergoing incision and drainage under GA, which of the following is the breathing circuit of choice for spontaneous ventilation?

    • A. Mapleson C
    • B. Mapleson A
    • C. Mapleson D
    • D. Mapleson B
    Show answer

    Answer: B. Mapleson A

    Mapleson A - Mapleson A, also called the Magill circuit, is the most efficient Mapleson system for spontaneous ventilation because its arrangement facilitates effective CO₂ elimination. - The APL valve is positioned downstream near the patient, allowing exhaled gas to be flushed during expiration with minimal fresh-gas flow and little rebreathing. Mapleson C - Mapleson C is less efficient for spontaneous ventilation than Mapleson A because its arrangement permits greater CO₂ rebreathing unless fresh-gas flow is increased. - Its short corrugated tubing makes it useful for transport and resuscitation equipment, but it is not the preferred routine circuit for spontaneous breathing under general anesthesia. Mapleson D - Mapleson D, including the Bain modification, is most efficient during controlled ventilation, rather than being the first choice for spontaneous ventilation. - During spontaneous breathing, it requires a relatively high fresh-gas flow, approximately 2–3 times minute ventilation, to prevent significant CO₂ rebreathing. Mapleson B - Mapleson B has the fresh-gas inlet and APL valve close to the patient, an arrangement associated with substantial rebreathing during spontaneous ventilation. - It is therefore relatively inefficient for both spontaneous and controlled ventilation unless very high fresh-gas flows are used.

  10. 10. The capnogram shown is recorded during surgery. What does it signify?

    • A. Airway obstruction
    • B. Oesophageal intubation
    • C. Spontaneous breathing
    • D. Hyperventilation
    Show answer

    Answer: C. Spontaneous breathing

    Spontaneous breathing - A notch in the alveolar plateau, called a curare cleft, occurs when the patient makes an occasional spontaneous breath during mechanical ventilation. - This indicates the return of spontaneous ventilation, as the patient's respiratory effort begins to add to or take over ventilator-delivered breaths. Oesophageal intubation - Oesophageal intubation typically produces no capnographic waveform, or only small transient waveforms from gastric carbon dioxide. - The described curare cleft indicates respiratory effort rather than oesophageal placement, making this option inconsistent with the waveform. Hyperventilation - Hyperventilation generally lowers end-tidal carbon dioxide because increased ventilation removes more carbon dioxide. - Although ventilation may increase, hyperventilation usually preserves normal waveform morphology and does not produce a characteristic curare cleft. Airway obstruction - Airway obstruction causes a slanted phase-II upstroke and an upward-sloping, prolonged phase-III plateau, often producing a shark-fin appearance. - The waveform instead shows a notch in the alveolar plateau, without the characteristic prolonged expiratory pattern of obstructed airflow.

Flashcards: Breathing Systems

  1. 1. The most effective circuit for anesthesia under controlled breathing is Mapleson

    Show answer

    D (Bain circuit)

  2. 2. Which anesthetic equipment malfunction is characterized by a capnography waveform showing an elevated baseline and a prolonged Phase III (alveolar plateau)?

    Show answer

    Expiratory valve malfunction

  3. 3. Mapleson circuit is also referred to as Bain circuit

    Show answer

    D

  4. 4. Check valve/internal vapourizers is a part of the pressure system of the anesthesia machine

    Show answer

    low

  5. 5. The following capnography waveform represents: _____

    Show answer

    expiratory valve malfunction

  6. 6. Mapleson _____ circuit is also referred to as Waters' circuit

    Show answer

    C

  7. 7. The following capnography waveform represents: _____

    Show answer

    hypoventilation

  8. 8. Mapleson _____ circuit is also referred to as Magills

    Show answer

    A

  9. 9. Mapleson _____ circuit is also referred to as Bain circuit

    Show answer

    D

  10. 10. The following capnography waveform represents: _____

    Show answer

    curare clefts
