Arterial Supply Introduction - Brain's Blood Highways

  • Brain's blood supply originates from two primary pairs of arteries:
    • Internal Carotid Arteries (ICAs): Form the anterior circulation. Supply ~2/3 of cerebral hemispheres.
    • Vertebral Arteries (VAs): Unite to form Basilar Artery (posterior circulation). Supply brainstem, cerebellum, occipital lobes.
  • These systems anastomose at the base, forming the Circle of Willis - a critical collateral pathway.
  • High metabolic activity:

    ⭐ Despite being only 2% of body weight, the brain consumes ~20% of the body's oxygen and 25% of its glucose.

Internal Carotid System - Anterior Circulation Powerhouse

  • Originates from common carotid artery; enters skull via carotid canal.
  • Key Branches (OPAMs):
    • Ophthalmic Artery: Supplies eye, orbit.
    • Posterior Communicating Artery (PCoA): Connects ICA to posterior circulation (PCA).
    • Anterior Choroidal Artery: Supplies optic tract, choroid plexus, parts of internal capsule, thalamus, hippocampus.
    • Anterior Cerebral Artery (ACA): Supplies medial aspects of frontal and parietal lobes, corpus callosum.
    • Middle Cerebral Artery (MCA): Largest branch; lateral aspects of cerebral hemispheres.

⭐ MCA is the artery most commonly affected in stroke; supplies motor and sensory cortices (upper limb, face), speech areas (Broca's, Wernicke's).

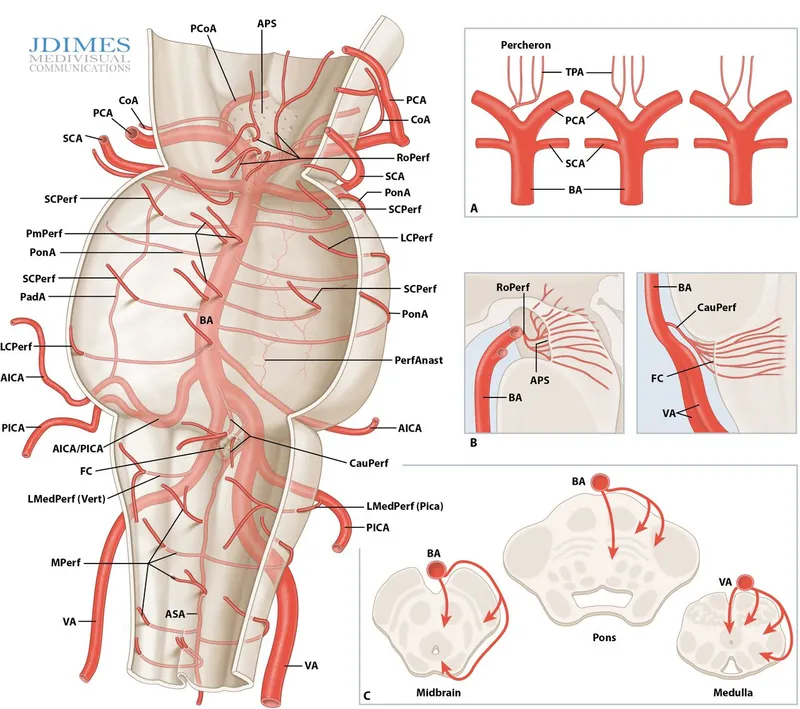

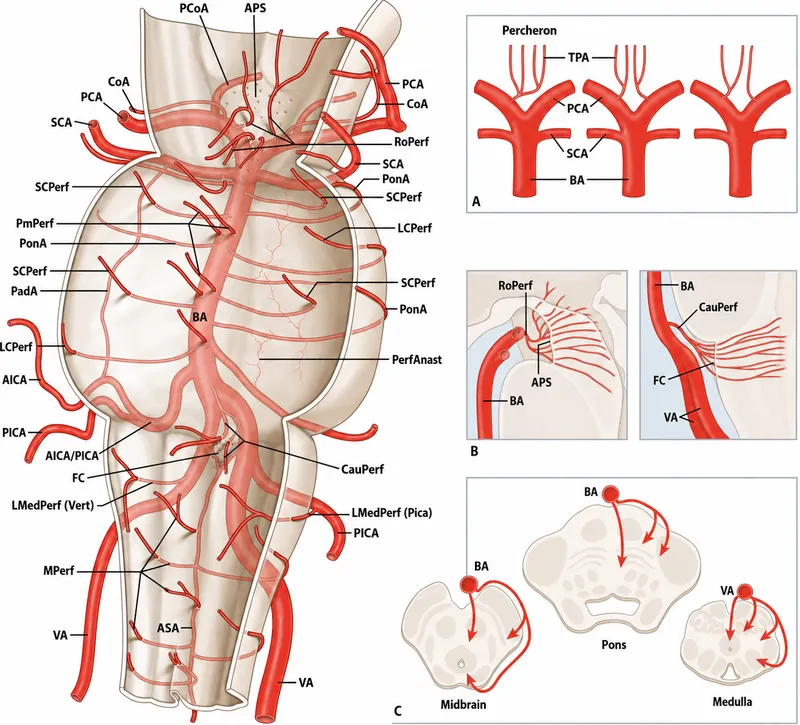

Vertebrobasilar System - Posterior Circulation Lifeline

  • Origin: VAs (from subclavian a.).
  • Course: VAs ascend C6-C1 foramina, enter foramen magnum.
  • Formation: VAs unite → BA (pontomedullary jct.).
  • BA: On pons, bifurcates → PCAs.
  • Branches & Supply:
    • VA:
      • PICA: Lat. medulla, inf. cerebellum.
      • ASA: Ant. spinal cord, med. medulla.
    • BA:
      • AICA: Inf. cerebellum, pons.
      • Labyrinthine a.: Inner ear (often from AICA).
      • Pontine aa.: Pons.
      • SCA: Sup. cerebellum, midbrain.
      • PCA: Occipital, med. temporal lobes, thalamus.

⭐ Occlusion of PICA (branch of vertebral artery) leads to Wallenberg syndrome (lateral medullary syndrome).

Circle of Willis - Cerebral Traffic Circle

Arterial anastomosis at the brain's base, crucial for collateral flow between anterior (ICA) & posterior (vertebrobasilar) circulations.

  • Key Arteries forming the circle:
    • Anterior Cerebral A. (ACA)
    • Anterior Communicating A. (AComA)
    • Internal Carotid A. (ICA - supraclinoid segment)
    • Posterior Cerebral A. (PCA)
    • Posterior Communicating A. (PComA)
  • Significance: Provides alternative blood routes if a primary artery is blocked, reducing stroke impact.

⭐ Berry aneurysms are most common at branch points, especially at the AComA-ACA junction.

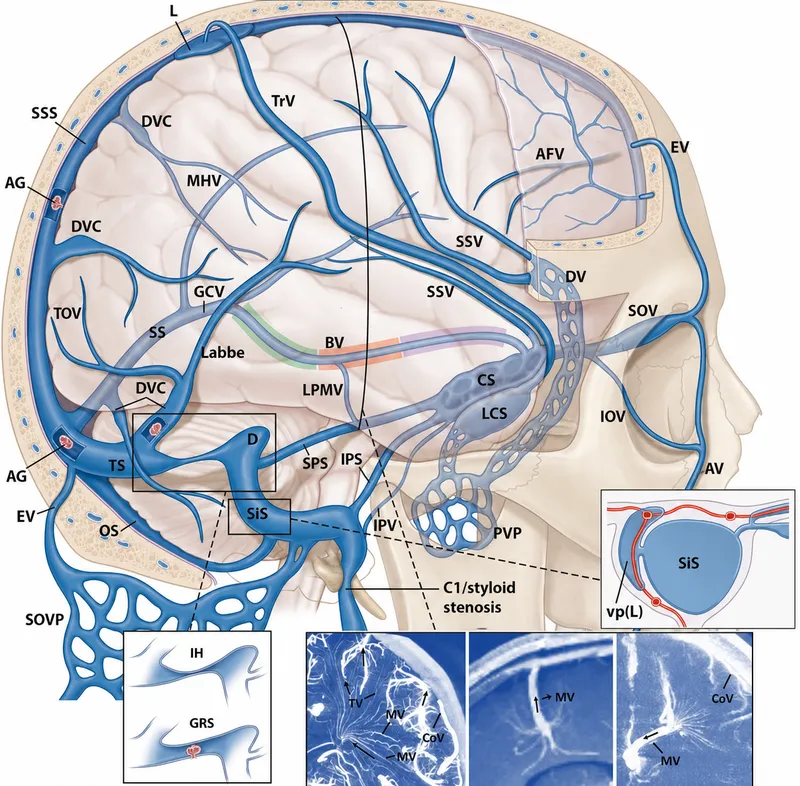

Venous Drainage - Brain's Exit Routes

  • Superficial Cortical Veins: Drain cortex → Superior Sagittal Sinus.
  • Deep Cerebral Veins: Drain deep structures (e.g., basal ganglia) → Great Cerebral Vein (of Galen).
  • Dural Venous Sinuses: Channels in dura.
    • Key sinuses: Superior Sagittal, Transverse, Sigmoid, Cavernous.
    • Pathway: Confluence → Transverse → Sigmoid Sinus → Internal Jugular Vein (IJV).
  • Cavernous Sinus: Receives ophthalmic veins; prone to thrombosis.

    ⭐ Cavernous sinus thrombosis: ophthalmoplegia (CN III, IV, VI) & facial sensory loss (V1, V2). A

High‑Yield Points - ⚡ Biggest Takeaways

  • Circle of Willis: Critical anastomosis between ICA and Vertebrobasilar systems.

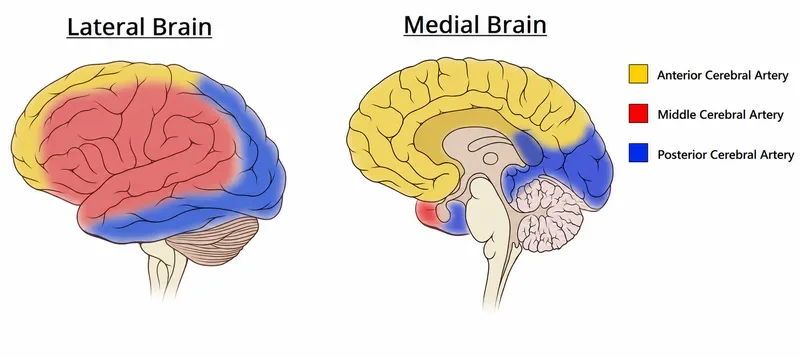

  • MCA stroke: Most common; contralateral face/arm weakness/sensory loss, aphasia (dominant) or neglect (non-dominant).
  • ACA stroke: Supplies medial cortex; contralateral leg/foot weakness/sensory loss.
  • PCA stroke: Supplies occipital lobe, thalamus; contralateral homonymous hemianopia, often with macular sparing.
  • Lenticulostriate arteries: From MCA, supply basal ganglia/internal capsule; risk of hypertensive lacunar strokes.
  • Watershed infarcts: At border zones between territories, from systemic hypoperfusion.

Unlock the full lesson and continue reading

Signup to continue reading this lesson and unlimited access questions, flashcards, AI notes, and more

Scan to download app

Scan to download
UNLOCK FREE ACCESS

Practice Questions: Blood Supply of the Brain

  1. 1. All of the following are appropriate approaches to treating iron deficiency anaemia EXCEPT:

    • A. Reducing oral doses for mild nausea
    • B. Using parenteral iron for mild nausea
    • C. Using parenteral iron for documented malabsorption
    • D. Continuing iron after haemoglobin normalisation
    Show answer

    Answer: B. Using parenteral iron for mild nausea

    Using parenteral iron for mild nausea is inappropriate because mild oral intolerance does not automatically require intravenous treatment. Reducing oral doses for mild nausea can improve tolerability and permit continued oral treatment. Using parenteral iron for documented malabsorption is appropriate when oral absorption is inadequate. Continuing iron after haemoglobin normalisation replenishes iron stores, commonly requiring approximately three further months of oral treatment.

  2. 2. Which finding is classically associated with medial frontal ACA infarction rather than a focal lateral-hemisphere MCA infarction?

    • A. Urinary incontinence
    • B. Contralateral hemiplegia
    • C. Expressive aphasia
    • D. Dysarthric speech
    Show answer

    Answer: A. Urinary incontinence

    Urinary incontinence is the classic association among these options with medial frontal ACA infarction because medial frontal networks contribute to continence. It is not exclusive to ACA lesions and can occur after other extensive strokes, including extensive MCA lesions. Contralateral hemiplegia can result from MCA involvement of motor cortex or descending motor pathways. Expressive aphasia favors dominant-hemisphere MCA involvement of language networks. Dysarthric speech can accompany MCA lesions affecting corticobulbar motor pathways.

  3. 3. Thrombosis of which cerebral artery classically causes contralateral weakness affecting the face and arm more than the leg?

    • A. Posterior cerebral artery
    • B. Basilar artery
    • C. Anterior cerebral artery
    • D. Middle cerebral artery
    Show answer

    Answer: D. Middle cerebral artery

    Middle cerebral artery thrombosis classically causes contralateral weakness affecting the face and arm more than the leg. Posterior cerebral artery thrombosis typically produces a contralateral homonymous visual-field defect. Basilar artery thrombosis typically causes brainstem findings, often with bilateral motor deficits. Anterior cerebral artery thrombosis typically causes contralateral leg-predominant weakness.

  4. 4. Wallenberg syndrome involves which artery?

    • A. Subclavian artery
    • B. Posterior cerebral artery
    • C. Posteroinferior cerebellar artery
    • D. Anterior inferior cerebellar artery
    Show answer

    Answer: C. Posteroinferior cerebellar artery

    Posteroinferior cerebellar artery - Wallenberg syndrome, or lateral medullary syndrome, is most commonly caused by infarction in the territory of the posterior inferior cerebellar artery (PICA). - PICA supplies the lateral medulla, where infarction can involve the nucleus ambiguus, trigeminal and vestibular nuclei, and spinothalamic tract, producing characteristic neurological findings. Posterior cerebral artery - The posterior cerebral artery primarily supplies the occipital lobe, inferomedial temporal lobe, thalamus, and midbrain rather than the lateral medulla. - A posterior cerebral artery infarct more typically causes contralateral homonymous hemianopia, visual deficits, or memory problems, not the characteristic lateral medullary syndrome. Subclavian artery - The subclavian artery supplies the upper limb and contributes to blood supply of the head and neck through its branches, but it does not directly supply the lateral medulla. - Subclavian artery disease is classically associated with subclavian steal syndrome, not the brainstem infarction responsible for Wallenberg syndrome. Anterior inferior cerebellar artery - The anterior inferior cerebellar artery (AICA) supplies the anterior and lateral cerebellum and the pontomedullary junction, rather than the principal lateral medullary territory. - AICA infarction produces lateral pontine syndrome, often featuring ipsilateral facial paralysis, hearing loss, and cerebellar ataxia, which distinguishes it from Wallenberg syndrome.

  5. 5. Absence of fungiform and circumvallate papillae is seen in which of the following conditions?

    • A. Familial dysautonomia
    • B. Iron deficiency anemia
    • C. Scarlet fever
    • D. Riboflavin deficiency
    Show answer

    Answer: A. Familial dysautonomia

    Familial dysautonomia. - Familial dysautonomia causes congenital absence of fungiform and circumvallate papillae, producing a smooth, glossy tongue and reduced taste from sensory and autonomic neuron dysfunction. - This autosomal recessive Riley-Day syndrome reflects impaired development of sensory neurons that normally provide trophic influence for papillary formation; associated features include alacrima and postural hypotension. Iron deficiency anemia. - Iron deficiency anemia typically causes atrophic glossitis with thinning or loss of filiform papillae, rather than congenital absence of both fungiform and circumvallate papillae. - The useful distinction is that circumvallate papillae are generally spared in iron deficiency, although generalized tongue atrophy and soreness may occur. Scarlet fever. - Scarlet fever produces a strawberry tongue: initially a white-coated tongue with prominent red fungiform papillae, followed by desquamation and a bright red appearance. - Because the papillae remain prominent or hypertrophied, scarlet fever does not explain their congenital absence. Riboflavin deficiency. - Riboflavin deficiency causes magenta tongue, with purplish-red discoloration and flattening primarily involving the filiform papillae. - Although papillary flattening may occur, circumvallate papillae are not completely absent, making this unlike familial dysautonomia.

  6. 6. Which of the following is a type of small vessel vasculitis?

    • A. Granulomatosis with polyangiitis
    • B. Classical systemic polyarteritis nodosa
    • C. Giant cell arteritis
    • D. Takayasu arteritis
    Show answer

    Answer: A. Granulomatosis with polyangiitis

    Granulomatosis with polyangiitis - Granulomatosis with polyangiitis (GPA) is a prototypic ANCA-associated small-vessel vasculitis with necrotizing granulomatous inflammation. - It commonly affects the upper and lower respiratory tracts and kidneys, producing necrotizing granulomatous inflammation and vasculitis. Takayasu arteritis - Takayasu arteritis is a large-vessel vasculitis predominantly affecting the aorta and its major branches, not a small-vessel vasculitis. Giant cell arteritis - Giant cell arteritis is classified as a large-vessel vasculitis, primarily affecting the aorta and its major branches, including the temporal artery. - Its typical manifestations—headache, jaw claudication, and visual disturbances—reflect large-artery involvement rather than small-vessel disease. Classical systemic polyarteritis nodosa - Classical polyarteritis nodosa is a medium-vessel vasculitis involving multifocal inflammatory and necrotizing lesions of muscular arteries. - Because PAN primarily affects medium-sized arteries, it does not fit the category of small-vessel vasculitis.

  7. 7. Which image label identifies the insular cortex in this coronal section of the brain?

    • A. D
    • B. C
    • C. A
    • D. B
    Show answer

    Answer: B. C

    Correct answer: option D (image label C). The arrow points to the insular cortex at the floor of the lateral sulcus, deep to the opercula. - The insula contributes to consciousness, emotion, homeostasis, taste, and pain perception, supporting its identification in the coronal section. A - A indicates the corpus callosum, a large white-matter tract connecting the two cerebral hemispheres across the midline. - Its role is interhemispheric integration of motor, sensory, and cognitive activity, not identification of the insular cortex. D D points to the globus pallidus, the medial component of the lentiform nucleus; the putamen lies lateral to it. Neither is insular cortex. B - B identifies the thalamus, a paired diencephalic gray-matter structure situated on either side of the third ventricle. - The thalamus functions as a major sensory and motor relay, so it is distinct from the insular cortex. Basis: Gray’s Anatomy describes the insula as forming the cortical floor of the lateral sulcus, covered by the frontal, parietal and temporal opercula. B. D. Chaurasia’s Human Anatomy, Brain places the globus pallidus medial to the putamen and the thalamus beside the third ventricle.

  8. 8. Ophthalmic artery is a branch of:

    • A. Cavernous part of ICA
    • B. Middle cerebral artery
    • C. Facial artery
    • D. Cerebral part of ICA
    Show answer

    Answer: D. Cerebral part of ICA

    Cerebral part of ICA - The ophthalmic artery is typically the first major branch of the internal carotid artery after it exits the cavernous sinus. - This origin is from the cerebral part of the ICA, also called the supraclinoid segment, before the ICA divides into its terminal branches. Cavernous part of ICA - The cavernous part of the ICA lies within the cavernous sinus and gives branches such as the meningohypophyseal and inferolateral trunks. - The ophthalmic artery arises after the ICA exits the cavernous sinus, from its supraclinoid or cerebral part rather than the cavernous segment. Middle cerebral artery - The MCA is a terminal branch of the internal carotid artery that supplies substantial areas of the cerebral hemisphere. - The ophthalmic artery branches from the ICA before its terminal bifurcation into the MCA and anterior cerebral artery, so it is not an MCA branch. Facial artery - The facial artery is a branch of the external carotid artery and supplies much of the face. - The ophthalmic artery supplies the orbit and arises from the internal carotid artery, placing it in a separate arterial system from the facial artery.

  9. 9. Which immunohistochemical profile is typical of a solitary fibrous tumor of the pleura (pleural fibroma), rather than malignant mesothelioma?

    • A. CD34 positive, cytokeratin positive
    • B. CD34 negative, cytokeratin positive
    • C. CD34 negative, cytokeratin negative
    • D. CD34 positive, cytokeratin negative
    Show answer

    Answer: D. CD34 positive, cytokeratin negative

    CD34 positive, cytokeratin negative is the typical profile of pleural solitary fibrous tumor and distinguishes it from mesothelioma. Nuclear STAT6 is a more specific marker of solitary fibrous tumor; CD14 is not a standard diagnostic marker. CD34 positive, cytokeratin positive incorrectly includes typical cytokeratin expression. CD34 negative, cytokeratin positive is more consistent with mesothelioma. CD34 negative, cytokeratin negative lacks the characteristic CD34 positivity of conventional solitary fibrous tumor.

  10. 10. Superficial middle cerebral vein drains into -

    • A. Straight sinus
    • B. Internal cerebral vein
    • C. Great cerebral vein
    • D. Cavernous sinus
    Show answer

    Answer: D. Cavernous sinus

    Cavernous sinus - The superficial middle cerebral vein runs along the lateral sulcus and typically drains into the cavernous sinus. - The cavernous sinus then communicates with the superior and inferior petrosal sinuses, providing the relevant dural venous drainage pathway. Straight sinus - The straight sinus receives blood from the great cerebral vein and the inferior sagittal sinus, rather than directly from the superficial middle cerebral vein. - This sinus primarily drains deep cerebral venous blood, whereas the superficial middle cerebral vein follows the lateral sulcus and drains toward the cavernous sinus. Internal cerebral vein - The internal cerebral veins belong to the deep venous system and drain structures such as the thalamus and basal ganglia. - The superficial middle cerebral vein is a superficial cortical vein, so it does not usually empty directly into the internal cerebral vein. Great cerebral vein - The great cerebral vein is formed by the union of the internal cerebral veins and collects deep cerebral venous blood. - It drains posteriorly into the straight sinus, making it a downstream deep venous channel rather than the primary drainage site of the superficial middle cerebral vein.

Flashcards: Blood Supply of the Brain

  1. 1. The labrynthine artery arises from which artery?

    Show answer

    AICA>Basilar

  2. 2. At the upper border of the pons, the basilar artery divides into two arteries.

    Show answer

    posterior cerebral

  3. 3. Superior cerebral veins open into the sinus

    Show answer

    superior sagittal

  4. 4. The petrous, cavernous and intracranial parts of the internal carotid artery are called the _____ because of its _____ course.

    Show answer

    carotid siphon · sigmoid

  5. 5. How many branches are given off by the internal carotid artery (ICA) in its cerebral part? Name them.

    Show answer

    5 branches::1. Ophthalmic artery 2. Posterior communicating artery 3. Anterior choroidal artery 4. Anterior cerebral artery (terminal) 5. Middle cerebral artery (terminal)

  6. 6. The most common site for a _____ aneurysm is at the junction of the _____ and _____ arteries

    Show answer

    berry (saccular) · anterior communicating · anterior cerebral

  7. 7. artery forms the main supply of the ventral optic chiasma

    Show answer

    Anterior communicating and internal carotid

  8. 8. ID Nucleus: _____

    Show answer

    Dorsal motor nucleus of X - Adjacent and lateral to the hypoglossal nucleus

  9. 9. ID Cortical Area: _____

    Show answer

    Wernicke's area (Brodmann area 22)

  10. 10. ID Brainstem Level: _____

    Show answer

    Rostral midbrain - Presence of colliculi - Presence of cerebral aqueduct - Presence of cerebral peduncles - Presence of CN III
